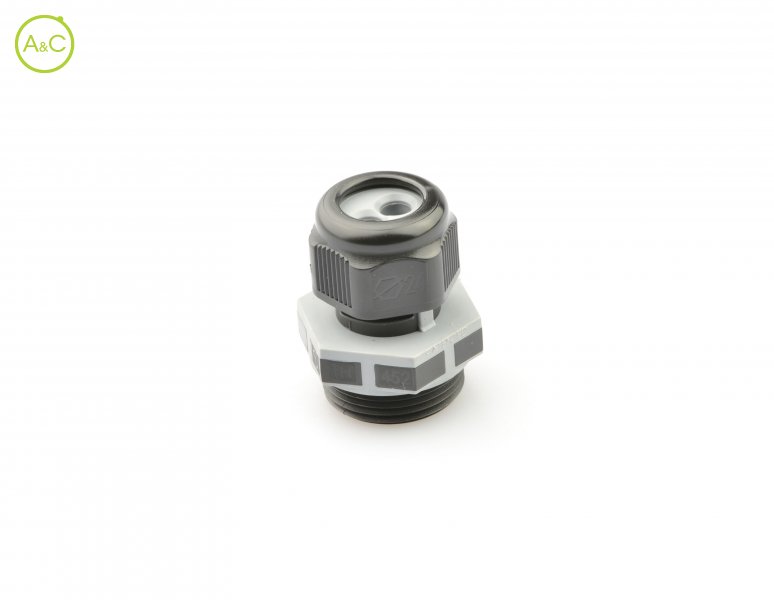

IP 68 Co-moulded Metric cable gland
Do you have any questions about this product?
More info on this brand:
Techno
Techno
Cable Diameter
- 6
| Article Number | THA.452.A1A | THA.452.A1E |
| Protection Degree | IP68 | IP68 |
| Upper Temperature | +125 °C | +125 °C |
| Lower Temperature | -40 °C | -40 °C |
| Thread | M25 | M25 |
| Colour | black | grey RAL 7035 |
| Min-max Cable Diameter | 6 mm | 6 mm |
| Protection Degree Details | 5 bar (50 m / 1 h) | 5 bar (50 m / 1 h) |
| Body | PA66 UL94 V0/V2 GWT 850°C black - grey RAL7035 | PA66 UL94 V0/V2 GWT 850°C black - grey RAL7035 |
| Lock Nuts | PA66 GF UL94 V0 GWT 960°C black - grey RAL7035 | PA66 GF UL94 V0 GWT 960°C black - grey RAL7035 |
| Co-moulded Seals | TPE grey RAL7001 | TPE grey RAL7001 |
| Standards | EN50262:1998+ A1:2001 +A1:2004 | EN50262:1998+ A1:2001 +A1:2004 |
Characteristics differ between variants of a connector
