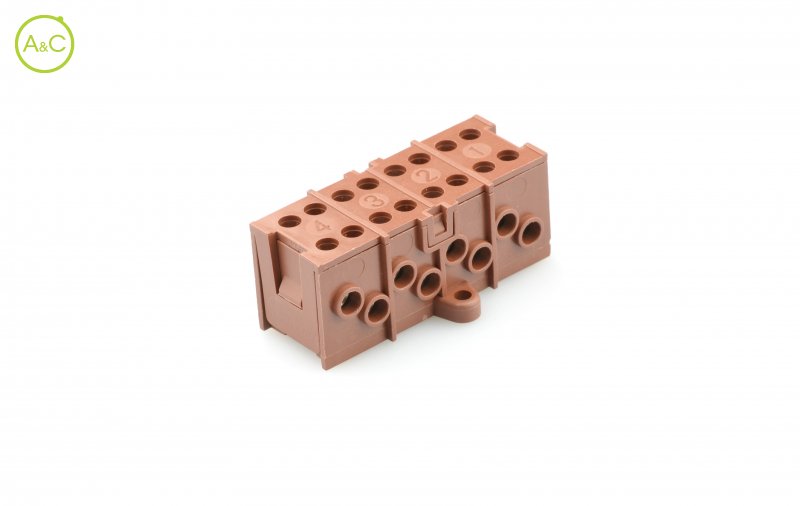

Compact linear terminal block
Do you have any questions about this product?
More info on this brand:
Techno
Techno
Number Of Poles
- 4+4
| Article Number | THB.032.A4B | THP.032.A4B |
| Number Of Contacts | 4+4 | 4+4 |
| Protection Degree | IP00 | IP00 |
| Upper Temperature | +125 °C | +125 °C |
| Lower Temperature | -40 °C | -40 °C |
| Rated Voltage | 450 | 450 |
| Rated Current | 32 A | 17.5 A |
| Contact Terminal | Multiple contact max 4,0 mm² | Piercing clip terminals max 1,5 mm² |
| Terminals | Screw | Piercing |
| Cable Section | max 4,0 mm² | 0,5 -1,5 mm² |
| T Marking | T125 °C | T125 °C |
| Protection Degree Details | can install inside TEEBOX | can install inside TEEBOX |
| Tracking Index | PTI 175 | PTI 175 |
| Terminal Block Housing | PA66 GF UL94 V0 GWT 960°C brown | PA66 GF UL94 V0 GWT 960°C brown |
| Contact Screw Terminals | Brass nickel plated | Brass nickel plated |
| Standard / Piercing Screws | M3 steel zinc plated | M3 steel zinc brass plated |
| Standards | EN60998-1:2005 EN60998-2-1:2005 EN60998-2-3:2005 | EN60998-1:2005 EN60998-2-1:2005 EN60998-2-3:2005 |
Characteristics differ between variants of a connector
