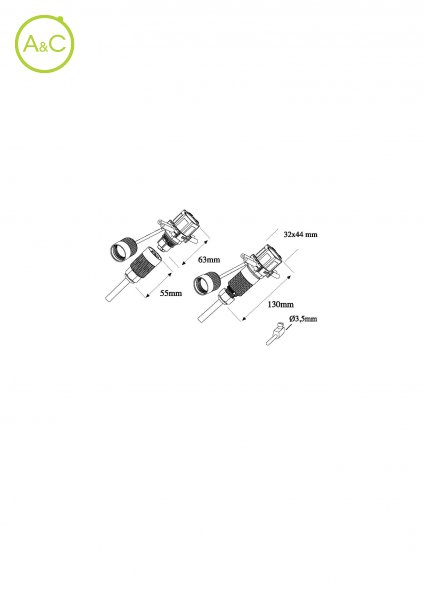

Insert Plug piercing clip connector

Download product sheet

Number Of Poles

  • 2
Article Number THB.384.P2A THP.384.P2A
Number Of Contacts 2 2
Protection Degree IP65 IP65
Upper Temperature +125 °C +125 °C
Lower Temperature -40 °C -40 °C
Rated Voltage 400 400
Pollution Degree 2 2
Rated Current 17.5 A 17.5 A
Contact Terminal Contact screw terminals. For cable section < 1.0 mm² Piercing clip terminal
Terminals Screw Piercing
Cable Section max 4,0 mm² max 4,0 mm²
Min-max Cable Diameter max 7,0 (cable to be pierced) / 7,0 - 12,0 mm max 7,0 (cable to be pierced) / 7,0 - 12,0 mm
T Marking T85 °C T85 °C
Impulse Withstand Category II II
Impulse Withstand Voltage 4 kV 4 kV
Tracking Index PTI 175 PTI 175
Lock Nuts PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035 PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035
Connector Housing PA66 UL94 V0/V2 GWT 960°C black - grey RAL 7035 PA66 UL94 V0/V2 GWT 960°C black - grey RAL 7035
Terminal Block Housing PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035 PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035
Grommets TPE TPE
Seals SEBS SEBS
Contact Screw Terminals Brass nickel plated Brass nickel plated
Standard / Piercing Screws M3 steel zinc plated M3 steel zinc brass plated
Standards TEST REPORT EN60529:1991+A1:2000 IP65:12.5 L/min x 3 min EN60998-1:2004 HEATING RESISTANCE TEST REPORT EN60529:1991+A1:2000 IP65:12.5 L/min x 3 min EN60998-1:2004 HEATING RESISTANCE
Characteristics differ between variants of a connector
