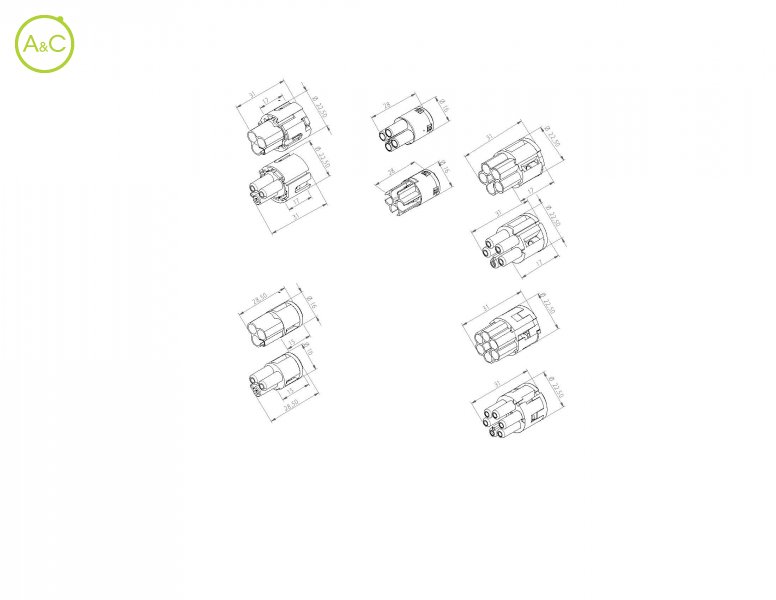

Pin crimp plug connector

THF.023.A2B

THF.023.A2B

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

Download product sheet

More info on this brand:

Number Of Poles

2
3
4
5
6

Article Number	THF.023.A2B	THF.023.A2C
Number Of Contacts	2	2
Upper Temperature	+125 °C	+125 °C
Lower Temperature	-40 °C	-40 °C
Rated Voltage	450	450
Pollution Degree	2	2
Rated Current	10 A	10 A
Colour	black - grey RAL7035	grey RAL7035
Contact Terminal	For universal cylindric pin ∅ 2 mm (not supplied).	For universal cylindric pin ∅ 2 mm (not supplied).
Terminals	Crimp	Crimp
T Marking	T125 °C	T125 °C
Impulse Withstand Category	II	II
Impulse Withstand Voltage	4 kV	4 kV
Tracking Index	PTI 175	PTI 175
Terminal Block Housing	PA66 GF UL94 V0 GWT 960°C	PA66 GF UL94 V0 GWT 960°C
Contact Screw Terminals	Brass nickel plated OR Brass silver plated (THX.02X.XXX.AG)	Brass nickel plated OR Brass silver plated (THX.02X.XXX.AG)
Standards	EN61984-2001	EN61984-2001

Article Number	THF.023.A3A	THF.023.A3B	THF.023.A3C
Number Of Contacts	3	3	3
Upper Temperature	+125 °C	+125 °C	+125 °C
Lower Temperature	-40 °C	-40 °C	-40 °C
Rated Voltage	450	450	450
Pollution Degree	2	2	2
Rated Current	10 A	10 A	10 A
Colour	grey RAL7035	grey RAL7035	white
Contact Terminal	For universal cylindric pin ∅ 2 mm (not supplied).	For universal cylindric pin ∅ 2 mm (not supplied).	For universal cylindric pin ∅ 2 mm (not supplied).
Terminals	Crimp	Crimp	Crimp
T Marking	T125 °C	T125 °C	T125 °C
Impulse Withstand Category	II	II	II
Impulse Withstand Voltage	4 kV	4 kV	4 kV
Tracking Index	PTI 175	PTI 175	PTI 175
Terminal Block Housing	PA66 GF UL94 V0 GWT 960°C	PA66 GF UL94 V0 GWT 960°C	PA66 GF UL94 V0 GWT 960°C
Contact Screw Terminals	Brass nickel plated OR Brass silver plated (THX.02X.XXX.AG)	Brass nickel plated OR Brass silver plated (THX.02X.XXX.AG)	Brass nickel plated OR Brass silver plated (THX.02X.XXX.AG)
Standards	EN61984-2001	EN61984-2001	EN61984-2001

Article Number	THF.023.A4B
Number Of Contacts	4
Upper Temperature	+125 °C
Lower Temperature	-40 °C
Rated Voltage	450
Pollution Degree	2
Rated Current	10 A
Colour	grey RAL7035
Contact Terminal	For universal cylindric pin ∅ 2 mm (not supplied).
Terminals	Crimp
T Marking	T125 °C
Impulse Withstand Category	II
Impulse Withstand Voltage	4 kV
Tracking Index	PTI 175
Terminal Block Housing	PA66 GF UL94 V0 GWT 960°C
Contact Screw Terminals	Brass nickel plated OR Brass silver plated (THX.02X.XXX.AG)
Standards	EN61984-2001

Article Number	THF.022.A5A
Number Of Contacts	5
Upper Temperature	+125 °C
Lower Temperature	-40 °C
Rated Voltage	450
Pollution Degree	2
Rated Current	10 A
Colour	grey RAL7035
Contact Terminal	For universal cylindric pin ∅ 2 mm (not supplied).
Terminals	Crimp
T Marking	T125 °C
Impulse Withstand Category	II
Impulse Withstand Voltage	6 kV
Tracking Index	PTI 175
Terminal Block Housing	PA66 GF UL94 V0 GWT 960°C
Contact Screw Terminals	Brass nickel plated OR Brass silver plated (THX.02X.XXX.AG)
Standards	EN61984-2001

Article Number	THF.028.A5A
Number Of Contacts	6
Upper Temperature	+125 °C
Lower Temperature	-40 °C
Rated Voltage	450
Pollution Degree	2
Rated Current	10 A
Colour	grey RAL7035
Contact Terminal	For universal cylindric pin ∅ 2 mm (not supplied).
Terminals	Crimp
T Marking	T125 °C
Impulse Withstand Category	II
Impulse Withstand Voltage	6 kV
Tracking Index	PTI 175
Terminal Block Housing	PA66 GF UL94 V0 GWT 960°C
Contact Screw Terminals	Brass nickel plated OR Brass silver plated (THX.02X.XXX.AG)
Standards	EN61984-2001

Characteristics differ between variants of a connector
