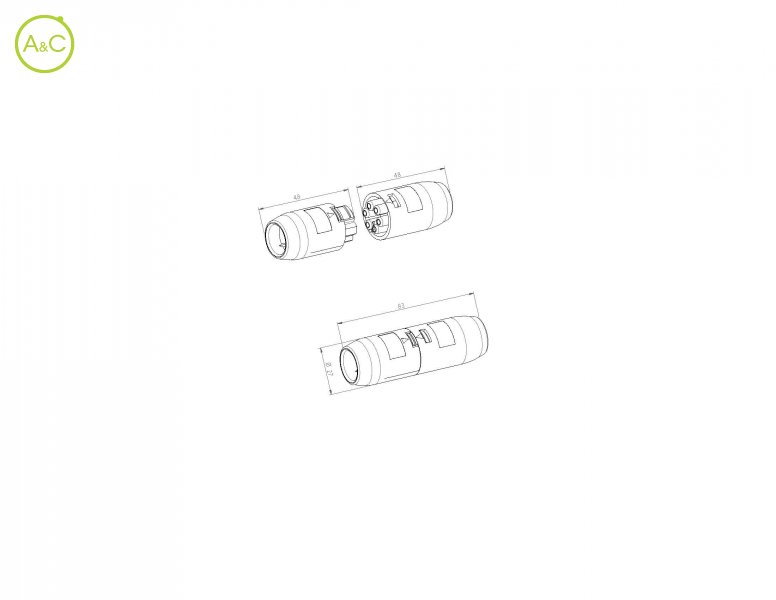

IP20 pin crimp power socket connector

Download product sheet

Number Of Poles

  • 2
  • 3
  • 5
  • 6
Article Number THF.388.B2A
Number Of Contacts 2
Protection Degree IP20
Upper Temperature +125 °C
Lower Temperature -40 °C
Rated Voltage 400
Pollution Degree 2
Rated Current 10 A
Contact Terminal For universal cylindric pin ∅ 2 mm (not supplied).
Terminals Crimp
Min-max Cable Diameter max 17,0 mm
T Marking T125 °C
Impulse Withstand Category II
Impulse Withstand Voltage 4 kV
Tracking Index PTI 175
Connector Housing PA66 UL94 V0/V2 GWT 850°C black - grey RAL 7035
Terminal Block Housing PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035
Contact Screw Terminals Brass nickel plated OR Brass silver plated (THX.388.XXX.AG)
Standards EN61984:2001
Characteristics differ between variants of a connector
