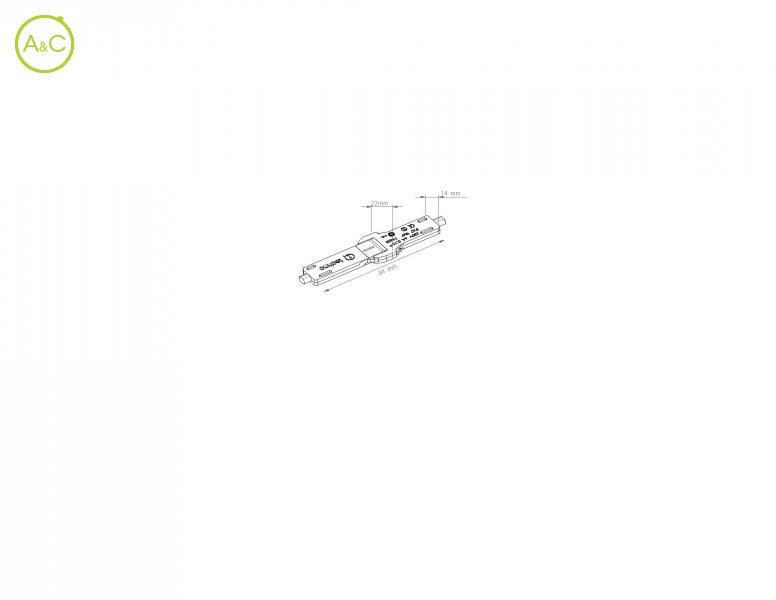

IP67 extra-slim Special connector
Do you have any questions about this product?
More info on this brand:
Techno
Techno
Number Of Poles
- 2
| Article Number | THH.420.A2A |
| Number Of Contacts | 2 |
| Cable Length | 450 mm mm |
| Protection Degree | IP67 |
| Upper Temperature | +110 °C |
| Lower Temperature | -20 to +110 °C |
| Rated Voltage | 230 |
| Pollution Degree | 2 |
| Rated Current | 6 A |
| Terminals | ∅ 1.8 mm crimp |
| Cable Section | 0.75 mm² |
| Cable Characteristics | H03V2V2-F (2 x 0.75 mm²) |
| T Marking | T85 °C |
| Protection Degree Details | (1 m / 30 min) |
| Impulse Withstand Category | II |
| Impulse Withstand Voltage | 2.5 kV |
| Tracking Index | PTI 175 |
| Connector Housing | PC FV UL94 V2 GWT 850°C black - transparent |
| Seals | EPDM rubber |
| Terminals Finish | Tin plated brass |
| Standards | EN61984:2001 TEST REPORT EN60529:1991+A1:2000 IP67:1MT-PROOF; 30MIN EN60998-1:2004 HEATING RESISTANCE |
| Note | 8A 230V according to NF France. |
Characteristics differ between variants of a connector
