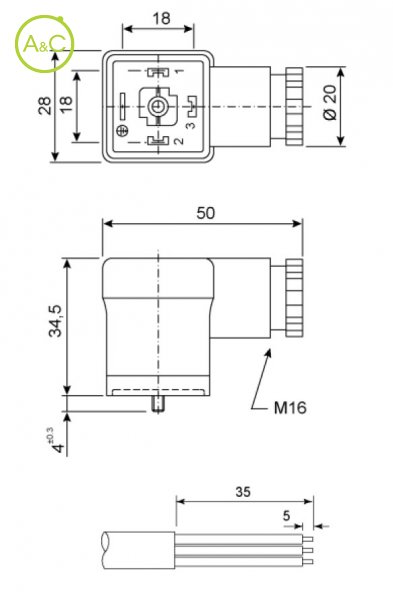

Style A square connector

  • For crimp terminals
Download product sheet

Housing Colour

  • Black
  • Grey
Article Number VC11 00A00 3 0 NR00
Protection Degree IP67
Upper Temperature +70 °C
Lower Temperature -40 °C
Housing Material PA66 30%GF
Circuits For crimp terminals
Housing Oil Resistance Good
Contact Material Nickel plated CuZn
Max. Wire Section 1,5 mm²
Other Characteristics M3 central screw material: zinc plated iron
Voltage Vdc 1 to 250
Voltage Vac 1 to 250
Max. Currrent 10 A @40°C
Characteristics differ between variants of a connector
