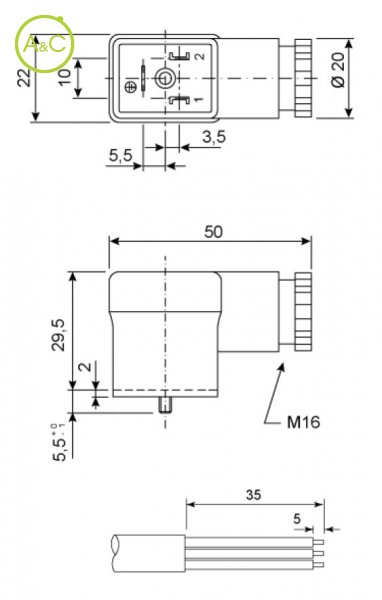

Style B rectangular connector

  • Varistor
Download product sheet

Housing Colour

  • Black
Article Number VF61 04A20 3 0 S000 VF61 04A40 3 0 S000 VF61 04A60 3 0 S000 VF61 04A90 3 0 S000
Protection Degree IP65 IP65 IP65 IP65
Upper Temperature +70 °C +70 °C +70 °C +70 °C
Lower Temperature -40 °C -40 °C -40 °C -40 °C
Contact Type Spring contact Spring contact Spring contact Spring contact
Housing Material PA66 30%GF PA66 30%GF PA66 30%GF PA66 30%GF
Circuits Varistor Varistor Varistor Varistor
Housing Oil Resistance Good Good Good Good
Contact Material Nickel plated CuZn Nickel plated CuZn Nickel plated CuZn Nickel plated CuZn
Max. Wire Section 1,5 mm² 1,5 mm² 1,5 mm² 1,5 mm²
Other Characteristics M3 central screw material: zinc plated iron M3 central screw material: zinc plated iron M3 central screw material: zinc plated iron M3 central screw material: zinc plated iron
Voltage Vdc 1 to 38 1 to 80 1 to 170 1 to 250
Voltage Vac 1 to 30 1 to 60 1 to 130 1 to 250
Max. Currrent 10 A @40°C 10 A @40°C 10 A @40°C 10 A @40°C
Clamping Voltage 38..104 V 80..165 V 170..340 V 320..640 V
Characteristics differ between variants of a connector
