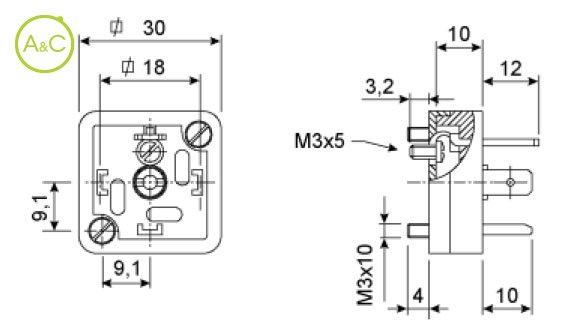

Style A square receptacle connector

  • With 2 screws
Download product sheet

Number Of Poles

  • 2+G
  • 3+G
Article Number VP11 02A0S
Number Of Contacts 2+G
Protection Degree IP65
Upper Temperature +125 °C
Lower Temperature -40 °C
Housing Material PA66 30%GF
Housing Oil Resistance Occasional contact
Contact Material Nickel plated CuZn
Max. Wire Section 1 mm²
Voltage Vdc 1 to 250
Voltage Vac 1 to 250
Max. Currrent 10 A @40°C
Included Accessories 2 screws M3x10 1 screw M3x5 1 unloosable gasket
Characteristics differ between variants of a connector
