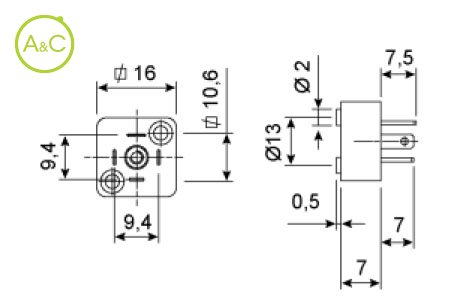

Style C-ind micro receptacle connector

  • With 1 screw
Download product sheet

Number Of Poles

  • 2+G
  • 3+G
Article Number VU11 02A0S
Number Of Contacts 2+G
Protection Degree IP65
Upper Temperature +125 °C
Lower Temperature -40 °C
Housing Material PA66 30%GF
Housing Oil Resistance Occasional contact
Contact Material Nickel plated CuZn
Max. Wire Section 0,75 mm²
Voltage Vdc 1 to 250
Voltage Vac 1 to 250
Max. Currrent 6 A @40°C
Included Accessories 1 screw M3x8 1 gasket
Characteristics differ between variants of a connector
