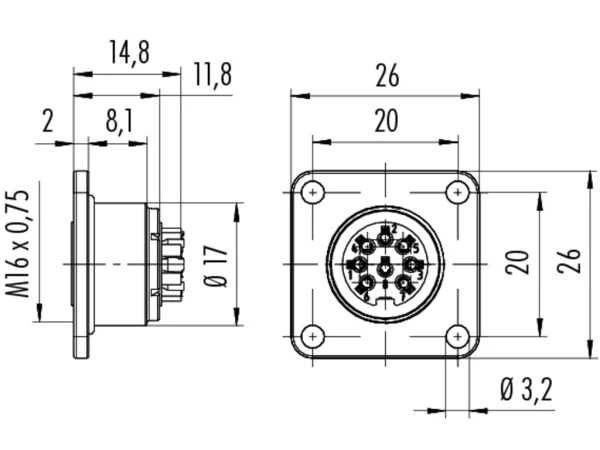

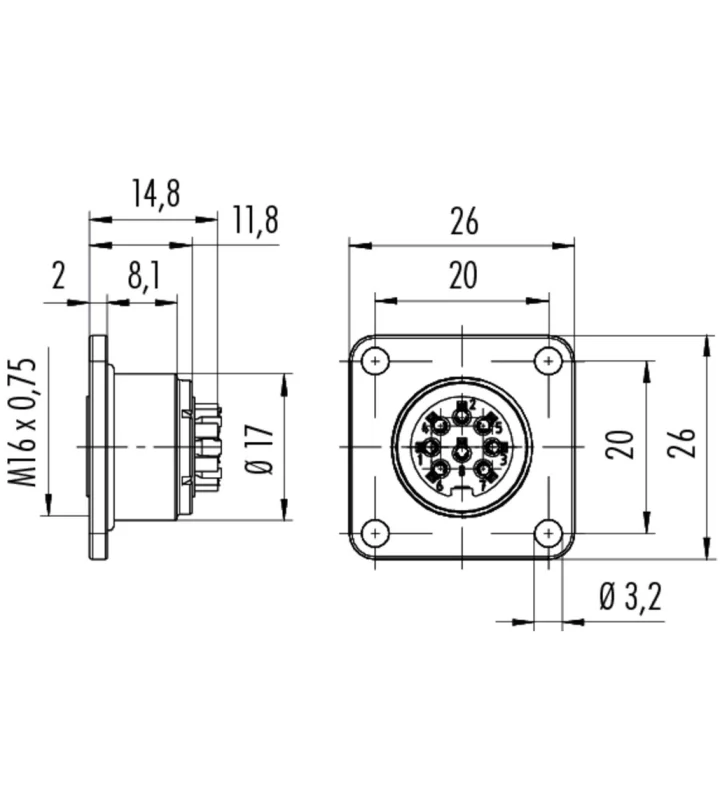

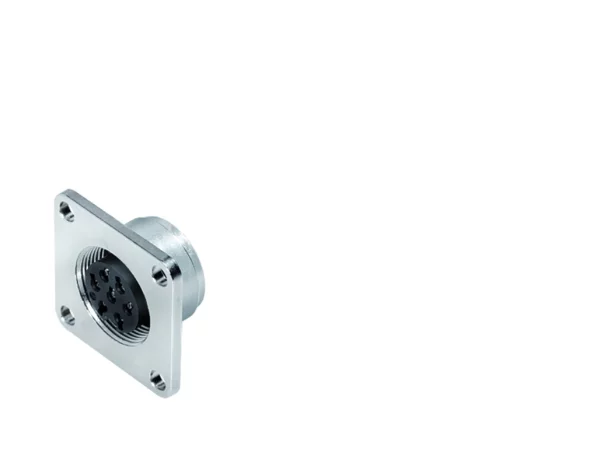

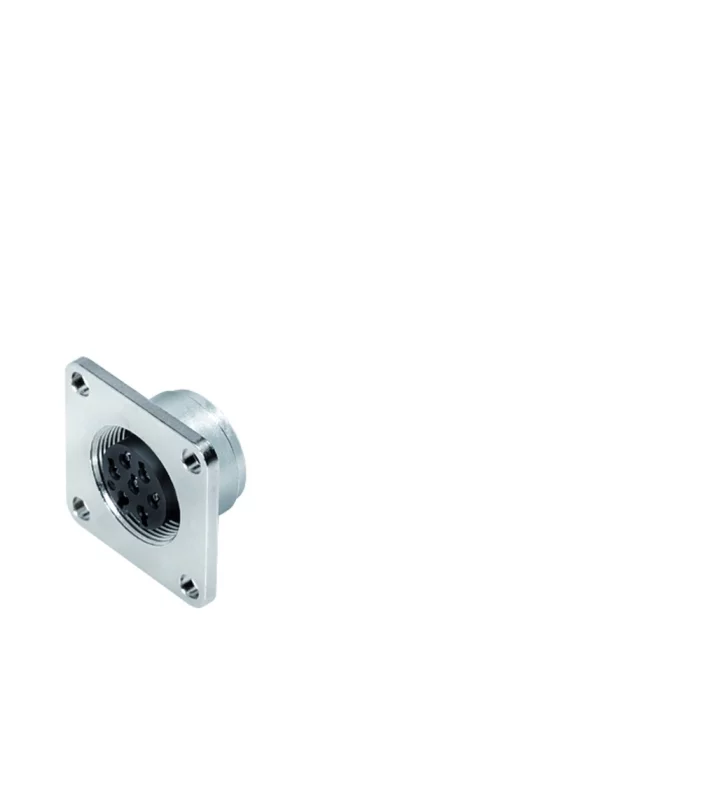

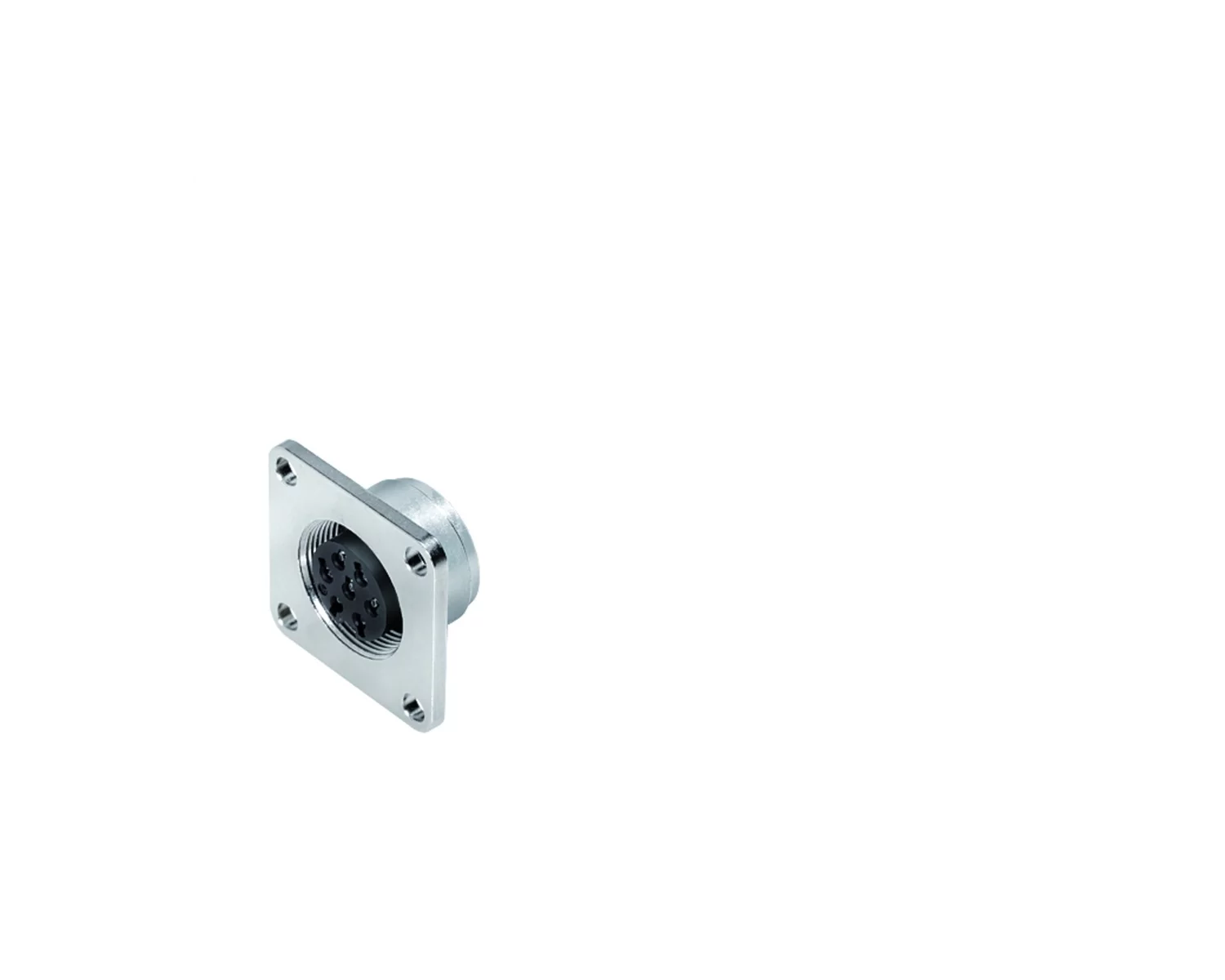

Female panel mount connector
Rectangular flange
Crimp
09 0112 370 04
Continue assembling your connector
Add the desired accessories to fully configure your connector.
Specifications
General Characteristics
| Screw size | M16 |
|---|---|
| Series | Miniature |
| Subseries | 423-723-425 |
| Gender | Female |
| Number of contacts | 4 |
| Contact terminal | Crimp |
| Upper temperature | +95 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Screw (M16) |
| Mating cycles | >500 |
| Connector Diameter | 17 mm |
| Wire-section | 0.75 mm² |
Electrical parameters
| Nominal current | 6 A |
|---|---|
| Nominal voltage | 250 V |
| Impuls voltage | 1500 V |
| Max. contact resistance | 5 mΩ |
| Pollution degree | 1 |
| Overvoltage categorie | I |
Material
| Material group | III |
|---|---|
| Material of insert | PBT (UL 94 V-0) |
| Material of contact | CuSn (Bronze) |
| Plating | Ag (Silver) |
Variations
| Item number | Nominal current | Number of contacts | Nominal voltage | Impuls voltage | Nominal Voltage |
|---|---|---|---|---|---|
| 09 0116 370 05 | >5 - ≤10 A | 5 | 250 V | 1500 V | >200 - ≤400 V |
| 09 0124 370 06 | ≤5 A | 6 | 250 V | 1500 V | >200 - ≤400 V |
| 09 0128 370 07 | ≤5 A | 7 | 60 V | 500 V | ≤200 V |
| 09 0174 370 08 | ≤5 A | 8 | 60 V | 500 V | ≤200 V |
