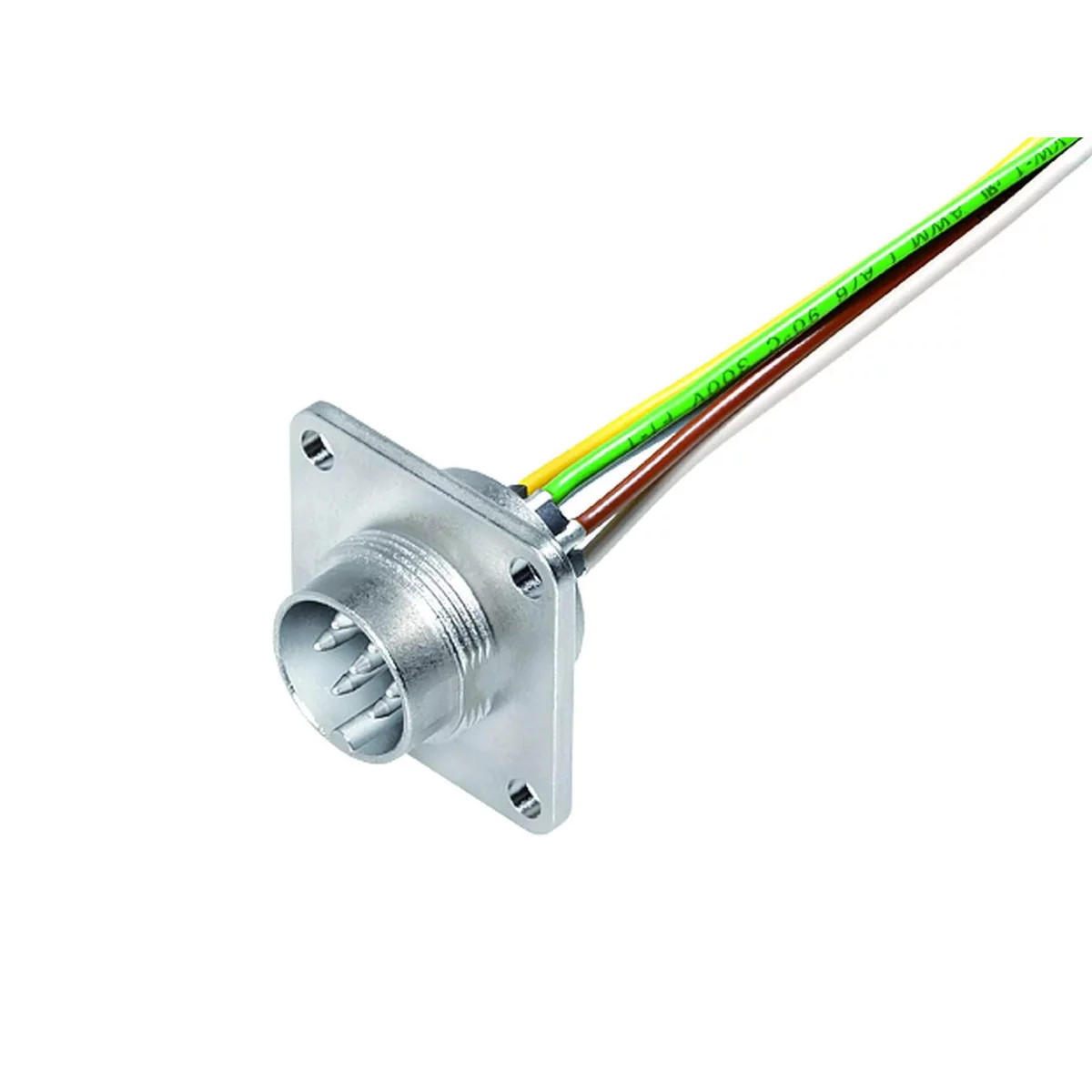

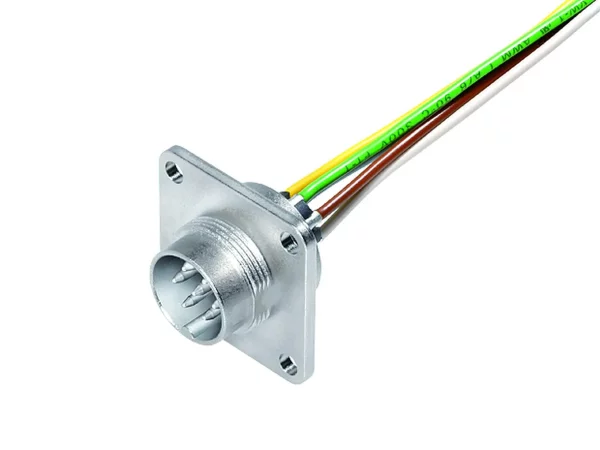

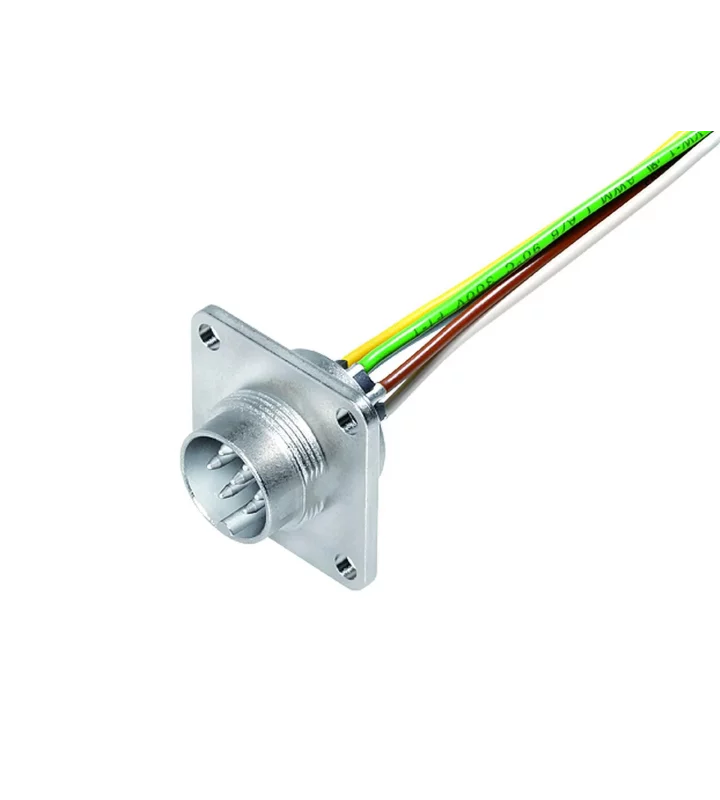

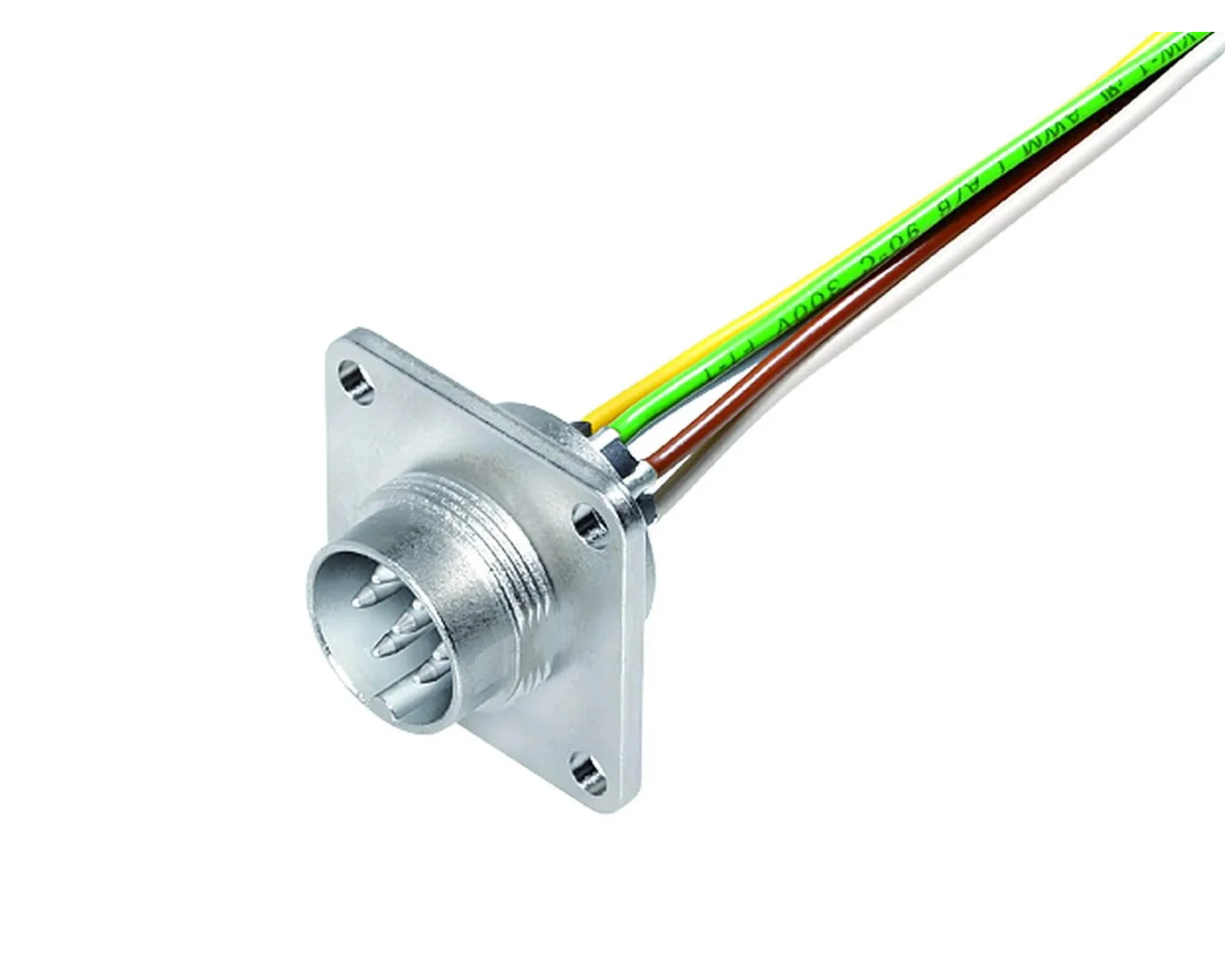

Male panel mount connector

With single wires

09 0127 320 07

Add the desired accessories to fully configure your connector.

Item number	Number of contacts	Material group	Nominal voltage	Contact terminal	Impuls voltage	Connector Diameter (mm)	Upper temperature	Lower temperature	Nominal Voltage	Connector Diameter
09 0123 782 06	6	II	300 V	Strands	1500 V	20 mm	+85 °C	-30 °C	>200 - ≤400 V	20 mm
09 0127 370 07	7	III	60 V	Crimp	500 V	17 mm	+95 °C	-40 °C	≤200 V	17 mm
09 0127 702 07	7	II	100 V	Strands	1200 V	20 mm	+85 °C	-30 °C	≤200 V	20 mm
09 0127 782 07	7	II	100 V	Strands	1200 V	20 mm	+85 °C	-30 °C	≤200 V	20 mm
09 0173 370 08	8	III	60 V	Crimp	500 V	17 mm	+95 °C	-40 °C	≤200 V	17 mm
09 0173 320 08	8	II	100 V	Single wires	1200 V	17 mm	+95 °C	-40 °C	≤200 V	17 mm
09 0173 702 08	8	II	100 V	Strands	1200 V	20 mm	+85 °C	-30 °C	≤200 V	20 mm
