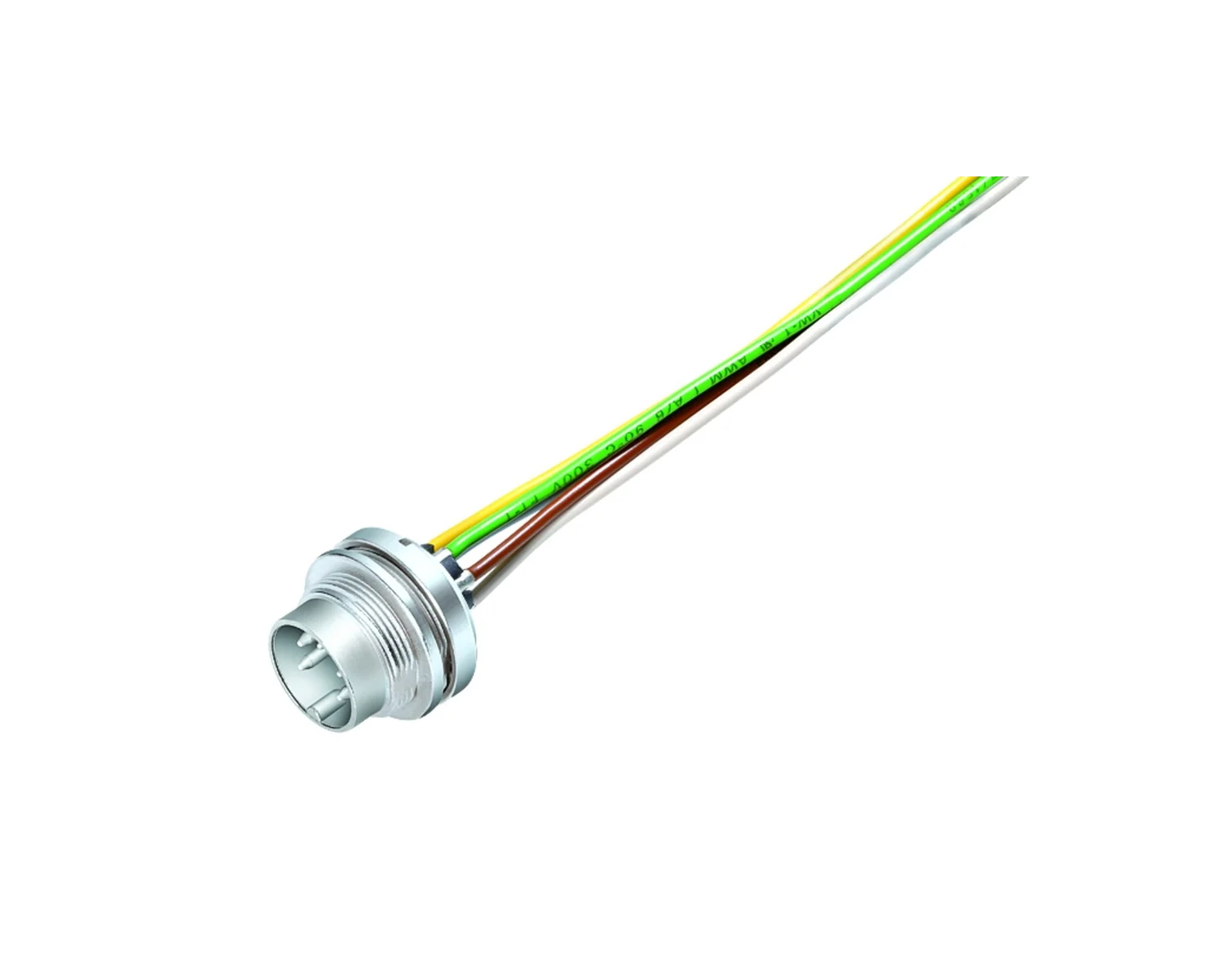

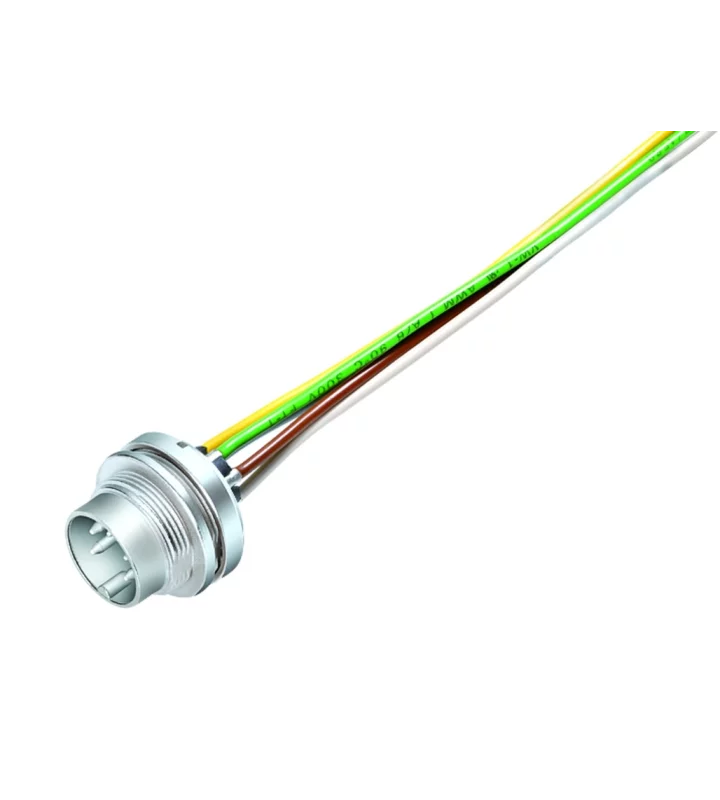

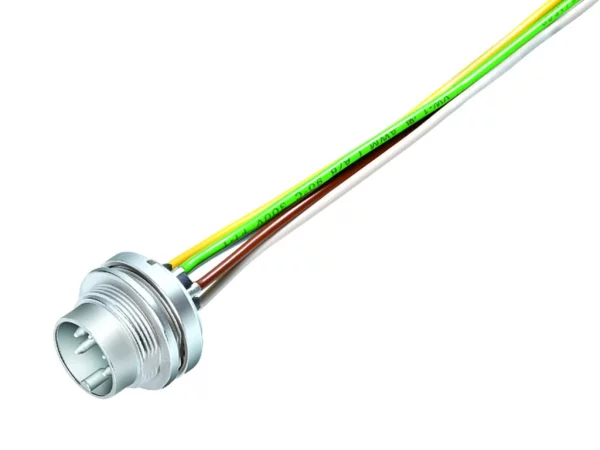

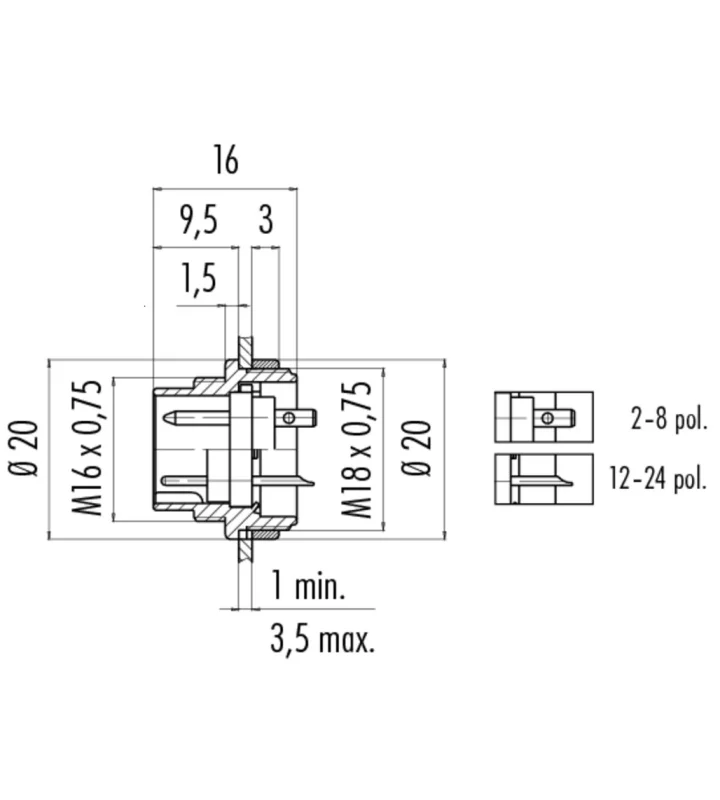

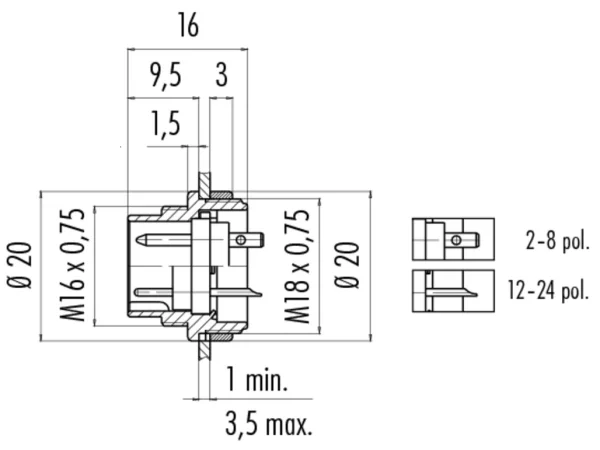

Male panel mount connector
with single wires
09 0315 702 05
Continue assembling your connector
Add the desired accessories to fully configure your connector.
Specifications
General Characteristics
| Screw size | M16 |
|---|---|
| Series | Miniature |
| Subseries | 581-680-682 |
| Gender | Male |
| Number of contacts | 5 |
| Contact terminal | Strands |
| Upper temperature | +85 °C |
| Lower temperature | -30 °C |
| Protection degree | IP40 |
| Locking system | Screw (M16) |
| Mating cycles | >500 |
| Connector Diameter | 20 mm |
| Wire-section | 0.75 mm² |
Electrical parameters
| Nominal current | 5 A |
|---|---|
| Nominal voltage | 300 V |
| Impuls voltage | 1500 V |
| Max. contact resistance | 5 mΩ |
| Pollution degree | 1 |
| Overvoltage categorie | I |
Material
| Material group | II |
|---|---|
| Material of insert | PBT (UL 94 V-0) |
| Material of contact | CuZn (Brass) |
Variations
| Item number | Number of contacts | Nominal voltage | Contact terminal | Impuls voltage | Nominal Voltage |
|---|---|---|---|---|---|
| 09 0311 702 04 | 4 | 300 V | Solder | 1500 V | >200 - ≤400 V |
| 09 0323 702 06 | 6 | 300 V | Strands | 1500 V | >200 - ≤400 V |
| 09 0327 702 07 | 7 | 100 V | Strands | 1200 V | ≤200 V |
| 09 0473 702 08 | 8 | 100 V | Strands | 1200 V | ≤200 V |
