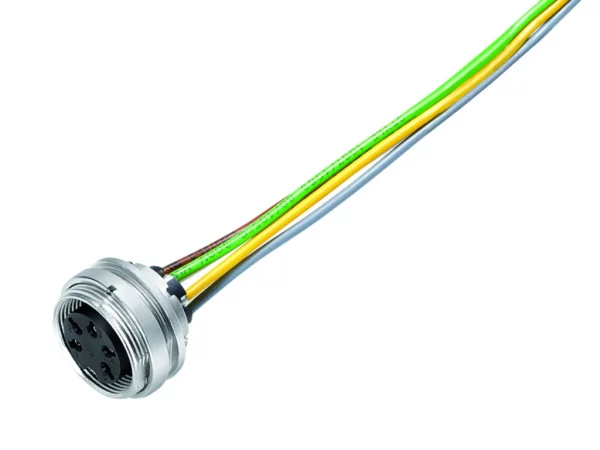

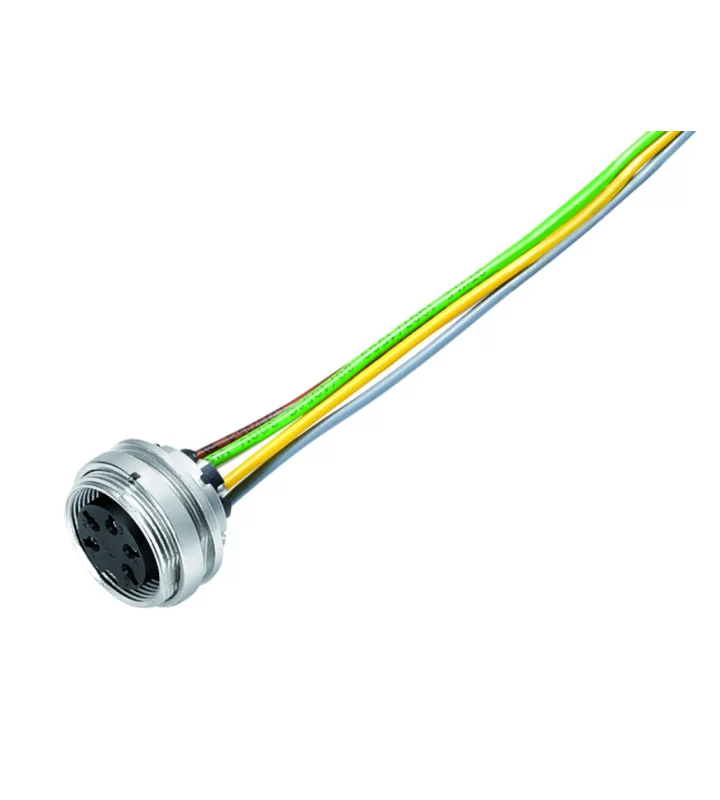

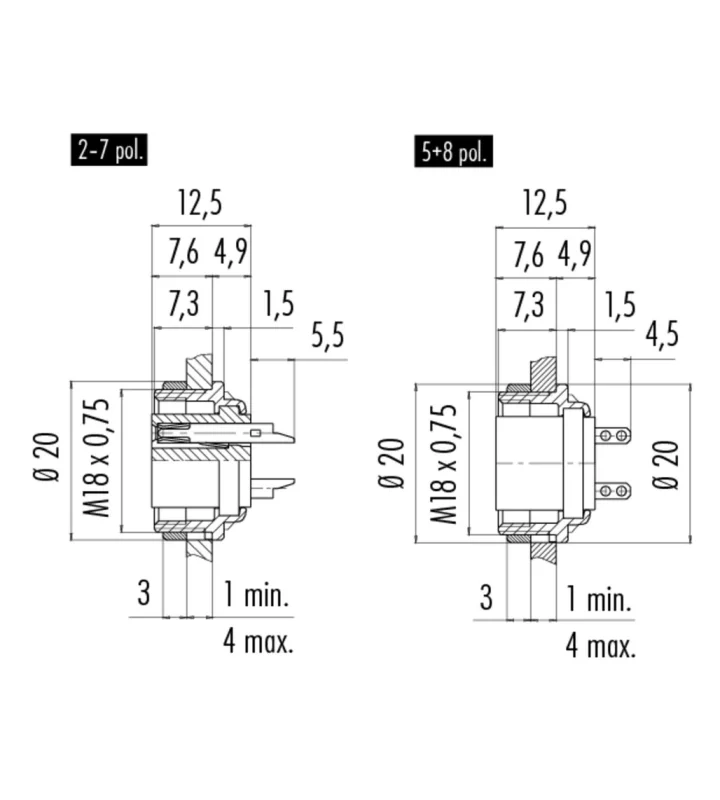

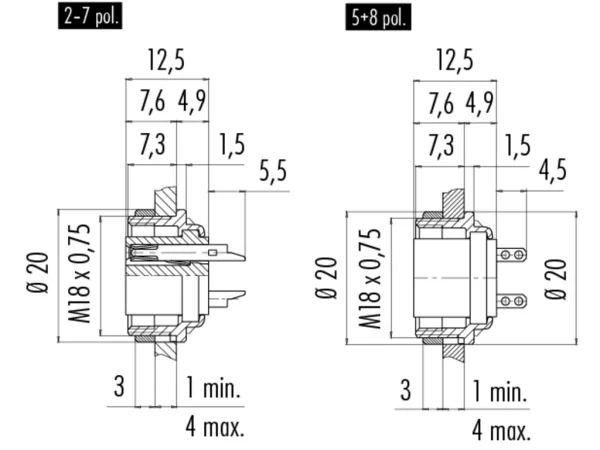

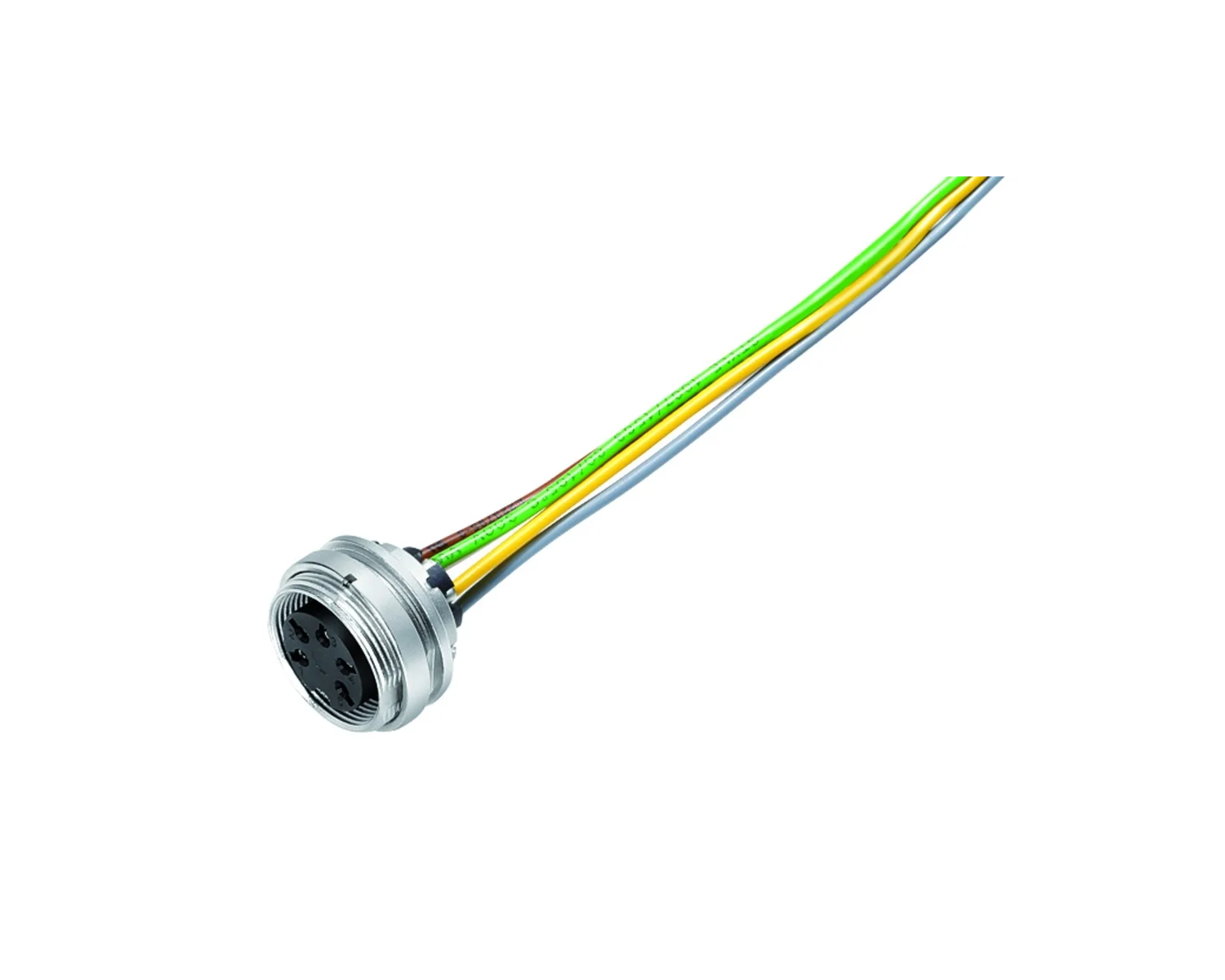

Female panel mount connector
Front fastened
With single wires
09 0324 782 06
Continue assembling your connector
Add the desired accessories to fully configure your connector.
Specifications
General Characteristics
| Screw size | M16 |
|---|---|
| Series | Miniature |
| Subseries | 581-680-682 |
| Gender | Female |
| Number of contacts | 6 |
| Contact terminal | Strands |
| Upper temperature | +85 °C |
| Lower temperature | -30 °C |
| Protection degree | IP40 |
| Locking system | Screw (M16) |
| Mating cycles | >500 |
| Connector Diameter | 20 mm |
| Wire-section | 0.75 mm² |
Electrical parameters
| Nominal current | 5 A |
|---|---|
| Nominal voltage | 300 V |
| Impuls voltage | 1500 V |
| Max. contact resistance | 5 mΩ |
| Pollution degree | 1 |
| Overvoltage categorie | I |
Material
| Material group | II |
|---|---|
| Material of insert | PBT (UL 94 V-0) |
| Material of contact | CuSn (Bronze) |
Variations
| Item number | Number of contacts | Nominal voltage | Impuls voltage | Nominal Voltage |
|---|---|---|---|---|
| 09 0312 782 04 | 4 | 300 V | 1500 V | >200 - ≤400 V |
| 09 0316 782 05 | 5 | 300 V | 1500 V | >200 - ≤400 V |
| 09 0328 782 07 | 7 | 100 V | 1200 V | ≤200 V |
| 09 0474 782 08 | 8 | 100 V | 1200 V | ≤200 V |
