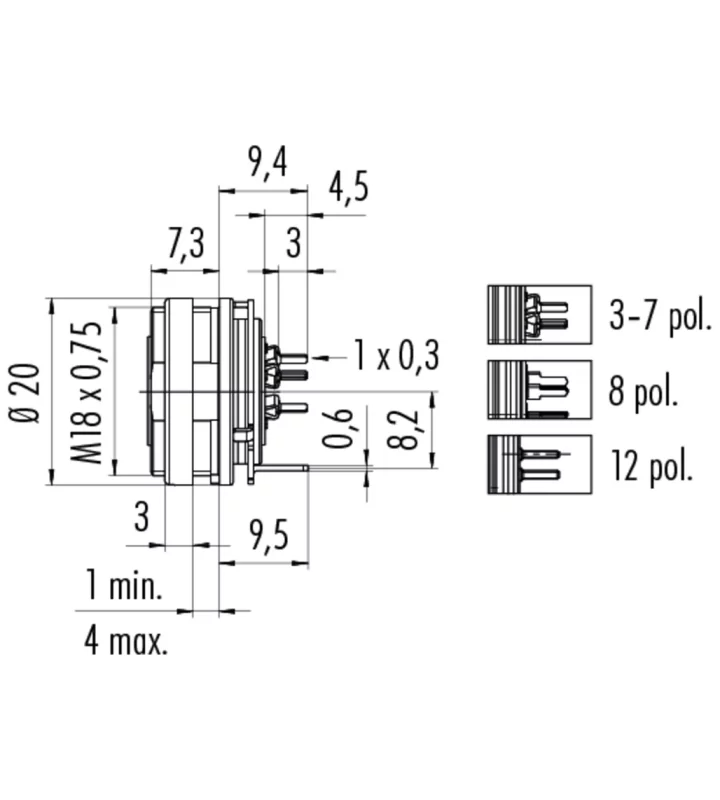

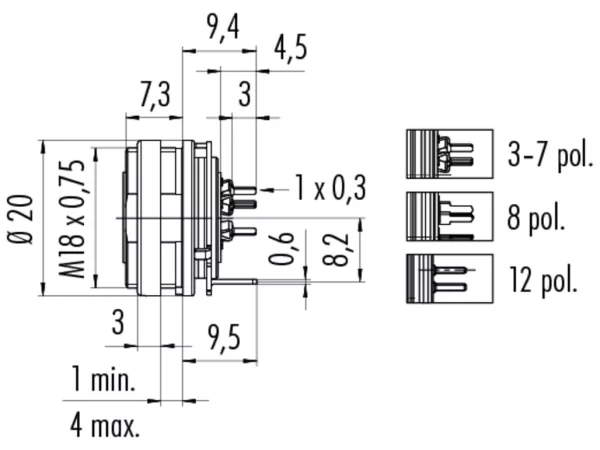

Female panel mount connector
With mass contact
09 0328 290 07
Continue assembling your connector
Add the desired accessories to fully configure your connector.
Specifications
General Characteristics
| Screw size | M16 |
|---|---|
| Series | Miniature |
| Subseries | 680 |
| Gender | Female |
| Number of contacts | 7 |
| Contact terminal | Dip-solder |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP40 |
| Locking system | Screw (M16) |
| Mating cycles | >500 |
| Connector Diameter | 20 mm |
Electrical parameters
| Nominal current | 5 A |
|---|---|
| Nominal voltage | 125 V |
| Impuls voltage | 800 V |
| Max. contact resistance | 5 mΩ |
| Pollution degree | 1 |
| Overvoltage categorie | I |
Material
| Material group | III |
|---|---|
| Material of insert | PBT (UL 94 V-0) |
| Material of contact | CuSn (Bronze) |
| Plating | Au (Gold) |
Variations
| Item number | Nominal current | Number of contacts | Nominal voltage | Impuls voltage | Max. contact resistance | Nominal Voltage |
|---|---|---|---|---|---|---|
| 09 0308 290 03 | >5 - ≤10 A | 3 | 250 V | 1500 V | 5 mΩ | >200 - ≤400 V |
| 09 0312 290 04 | >5 - ≤10 A | 4 | 250 V | 1500 V | 5 mΩ | >200 - ≤400 V |
| 09 0316 290 05 | >5 - ≤10 A | 5 | 250 V | 1500 V | 5 mΩ | >200 - ≤400 V |
| 09 0324 290 06 | ≤5 A | 6 | 250 V | 1500 V | 5 mΩ | >200 - ≤400 V |
| 09 0474 290 08 | ≤5 A | 8 | 60 V | 500 V | 5 mΩ | ≤200 V |
| 09 0332 290 12 | ≤5 A | 12 | 60 V | 500 V | 3 mΩ | ≤200 V |
