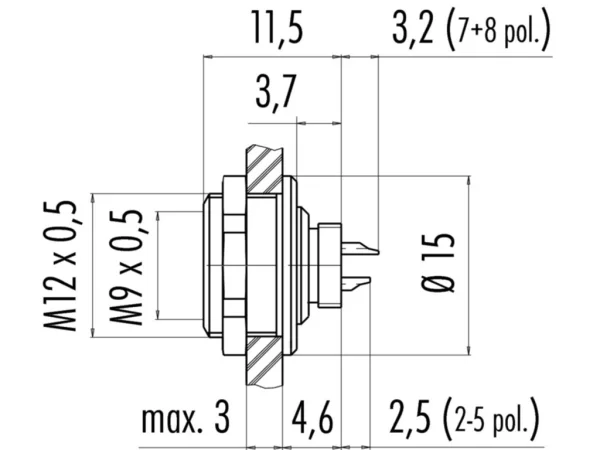

Female panel mount connector
Solder, front fastened
09 0428 80 08
Continue assembling your connector
Add the desired accessories to fully configure your connector.
Specifications
General Characteristics
| Screw size | M9 |
|---|---|
| Series | Subminiature |
| Subseries | 712-702 |
| Gender | Female |
| Number of contacts | 8 |
| Contact terminal | Solder |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Screw (M9) |
| Mating cycles | >500 |
| Connector Diameter | 15 mm |
| Wire-section | 0.14 mm² |
Electrical parameters
| Nominal current | 1 A |
|---|---|
| Nominal voltage | 125 V |
| Impuls voltage | 1500 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 1 |
| Overvoltage categorie | II |
Material
| Material group | III |
|---|---|
| Material of insert | PA (UL 94 V-0) |
| Material of housing | CuZn (Brass nickel plated) |
| Material of contact | CuSn (Bronze) |
| Plating | Au (Gold) |
Variations
| Item number | Number of contacts | Wire-section |
|---|---|---|
| 09 0404 80 02 | 2 | 0.25 mm² |
| 09 0408 80 03 | 3 | 0.25 mm² |
| 09 0412 80 04 | 4 | 0.25 mm² |
| 09 0416 80 05 | 5 | 0.25 mm² |
| 09 0424 80 07 | 7 | 0.14 mm² |
