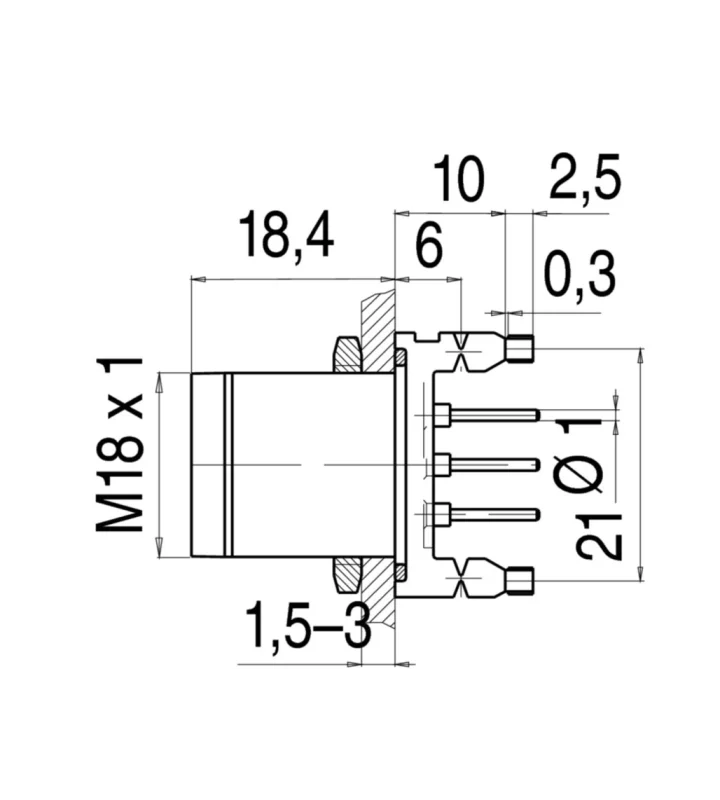

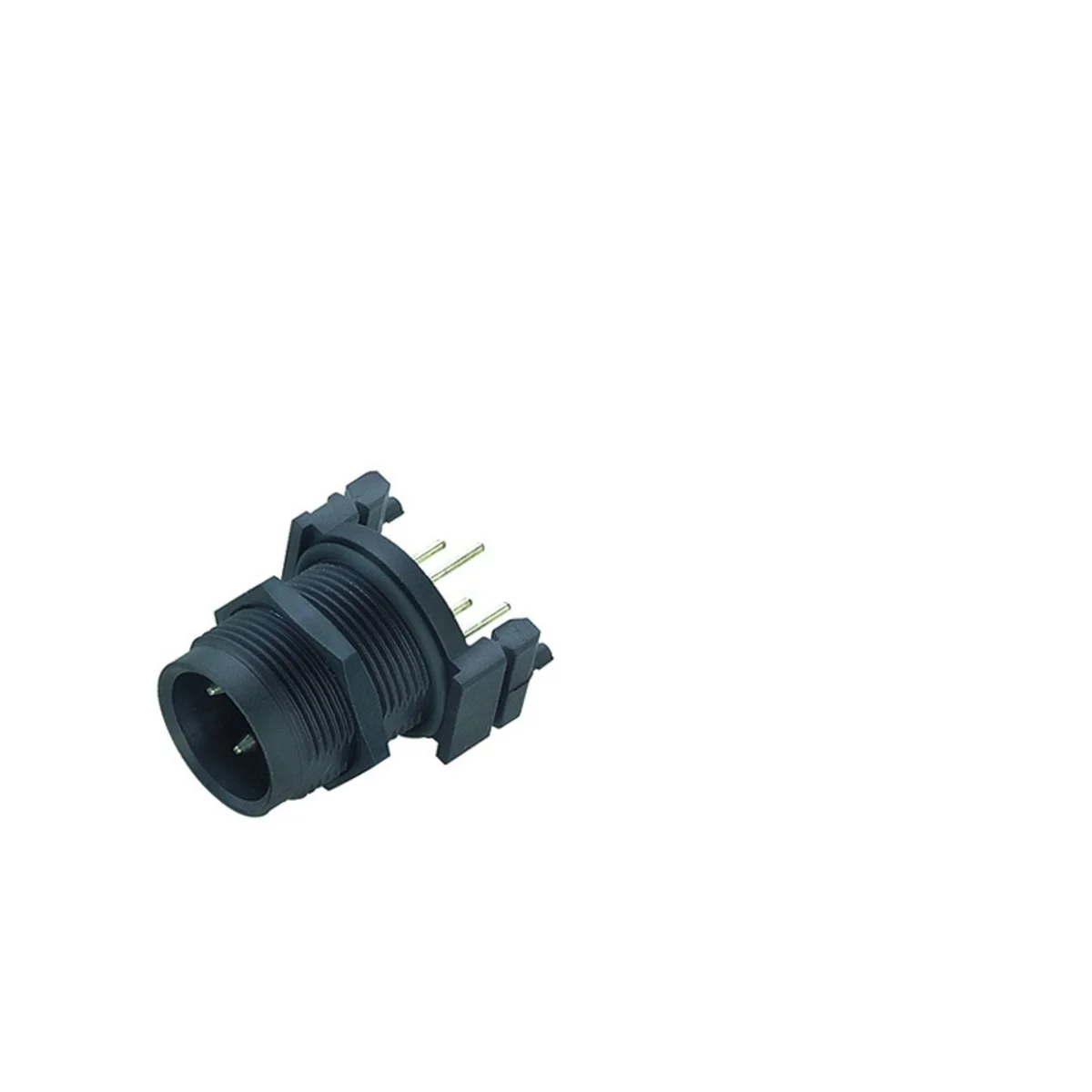

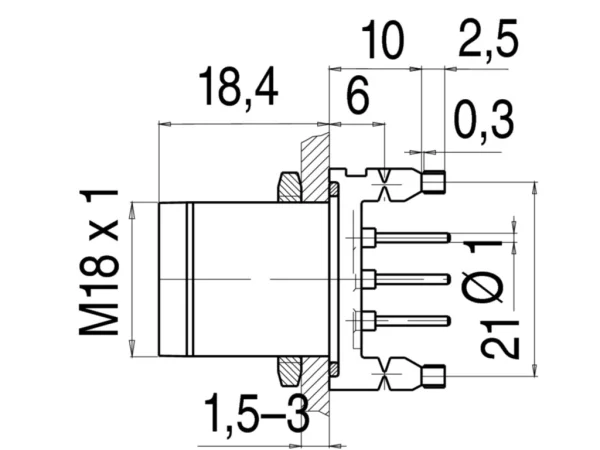

Male socket
Dip solder, front fastened
09 0441 90 04
Specifications
General Characteristics
|
Screw size |
M18
|
|
Series |
Sensor
|
|
Subseries |
714
|
|
Gender |
Male
|
|
Number of contacts |
4
|
|
Contact terminal |
Dip solder
|
|
Upper temperature |
+85 °C
|
|
Lower temperature |
-25 °C
|
|
Protection degree |
IP67
|
|
Locking system |
Screw (M18)
|
|
Mating cycles |
>50
|
|
Connector Diameter |
21 mm
|
|
Wire-section |
1.5 mm²
|
Electrical parameters
|
Nominal current |
16 (5A UL)
|
|
Nominal voltage |
250 V
|
|
Impuls voltage |
4000 V
|
|
Max. contact resistance |
8 mΩ
|
|
Pollution degree |
3
|
|
Overvoltage categorie |
III
|
Material
|
Material group |
III
|
|
Material of insert |
PBT/PA
|
|
Material of housing |
PBT/PA
|
|
Material of contact |
CuZn (Brass)
|
|
Plating |
CuSnZn (Optalloy), Sn (Tin)
|
