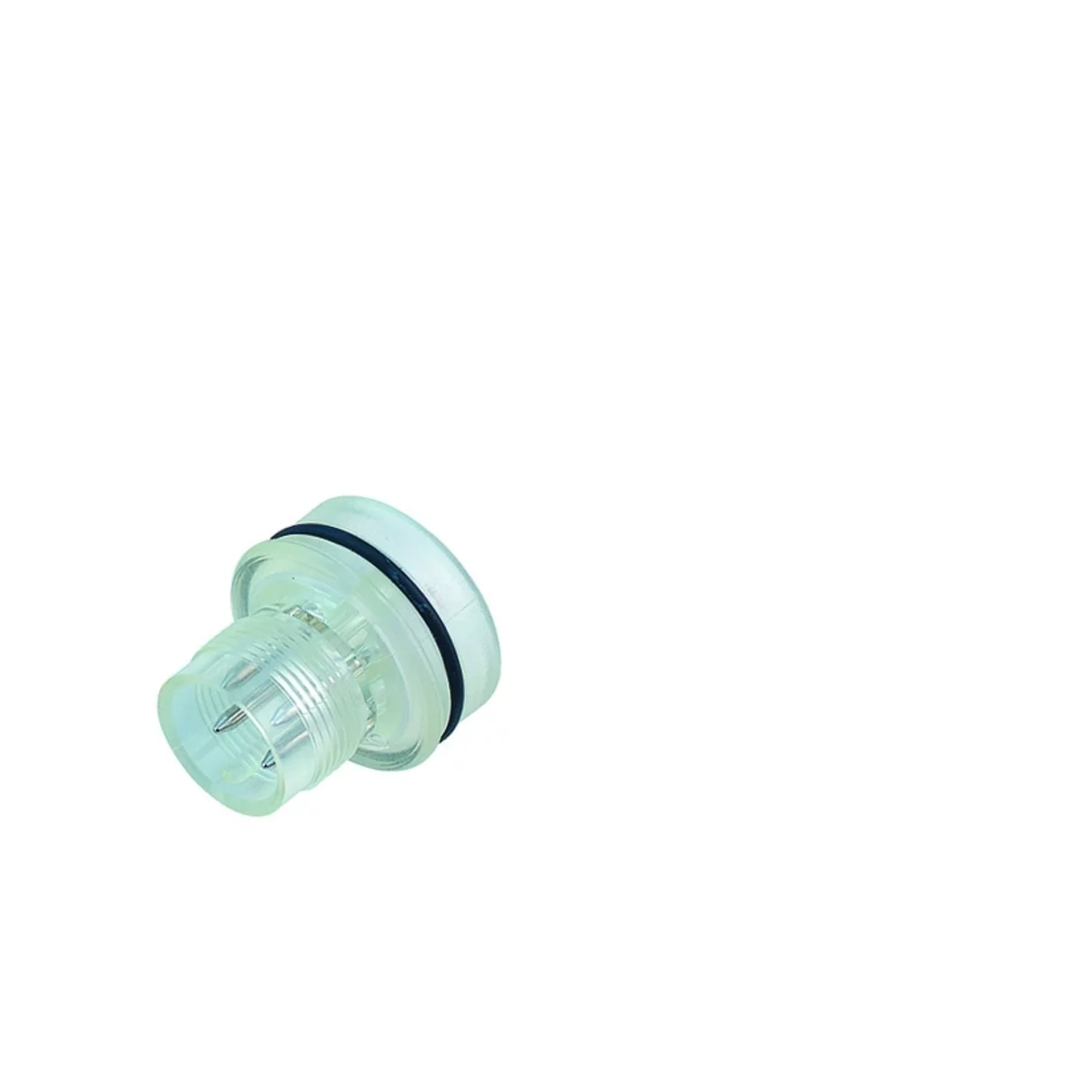

Male adapter
Solder, transparent
with sealing hole
09 0443 50 04
Specifications
General Characteristics
| Screw size | M18 |
|---|---|
| Series | Sensor |
| Subseries | 714 |
| Gender | Male |
| Number of contacts | 4 |
| Contact terminal | Solder |
| Upper temperature | +85 °C |
| Lower temperature | -25 °C |
| Protection degree | IP67 |
| Locking system | Screw (M18) |
| Mating cycles | >50 |
| Connector Diameter | 27.2 mm |
| Wire-section | 1.5 mm² |
Electrical parameters
| Nominal current | 16 A |
|---|---|
| Nominal voltage | 250 V |
| Impuls voltage | 4000 V |
| Max. contact resistance | 8 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | III |
Material
| Material group | II |
|---|---|
| Material of insert | PA |
| Material of housing | PA |
| Material of contact | CuZn (Brass) |
| Plating | CuSnZn (Optalloy) |
Variations
| Item number |
|---|
| 09 0443 00 04 |
