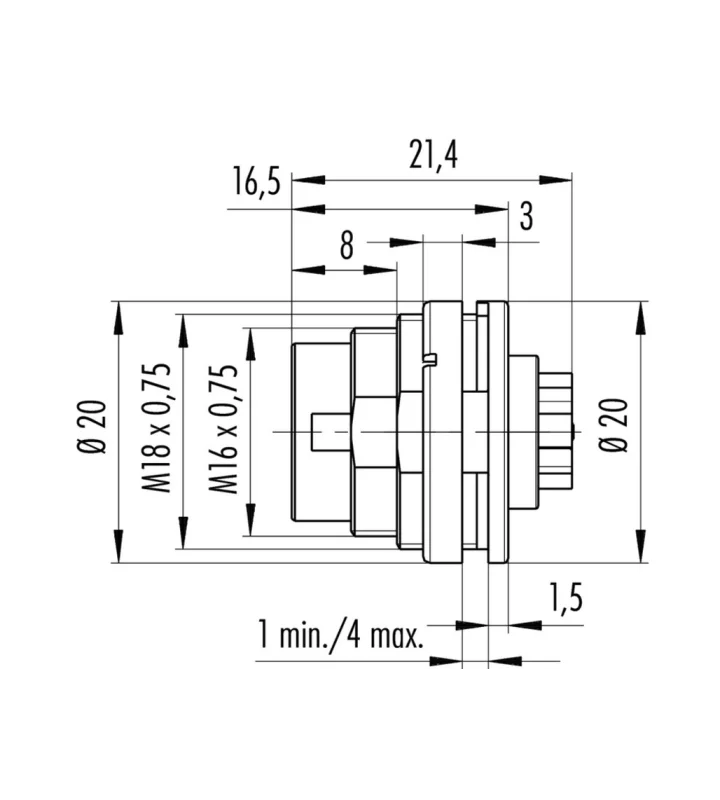

Male panel mount connector
Crimp, front fastened
09 0473 780 08
Continue assembling your connector
Add the desired accessories to fully configure your connector.
Specifications
General Characteristics
| Screw size | M16 |
|---|---|
| Series | Miniature |
| Subseries | 581-680-682 |
| Gender | Male |
| Number of contacts | 8 |
| Contact terminal | Crimp |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP40 |
| Locking system | Screw (M16) |
| Mating cycles | >500 |
| Connector Diameter | 20 mm |
| Remark* | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
Electrical parameters
| Nominal current | 5 A |
|---|---|
| Nominal voltage | 60 (32) V |
| Impuls voltage | 500 V |
| Max. contact resistance | 5 mΩ |
| Pollution degree | 1 (2)* |
| Overvoltage categorie | I (II)* |
Material
| Material group | III |
|---|---|
| Material of insert | PBT (UL 94 V-0) |
| Material of housing | CuZn (Brass nickel plated) |
| Material of contact | CuSn (Bronze) |
Variations
| Item number | Nominal current | Number of contacts | Nominal voltage | Impuls voltage | Nominal Voltage |
|---|---|---|---|---|---|
| 09 0311 780 04 | >5 - ≤10 A | 4 | 250 (32) V | 1500 V | >200 - ≤400 V |
| 09 0315 780 05 | >5 - ≤10 A | 5 | 250 (32) V | 1500 V | >200 - ≤400 V |
| 09 0323 780 06 | ≤5 A | 6 | 250 (32) V | 1500 V | >200 - ≤400 V |
| 09 0327 780 07 | ≤5 A | 7 | 125 (32) V | 800 V | ≤200 V |
