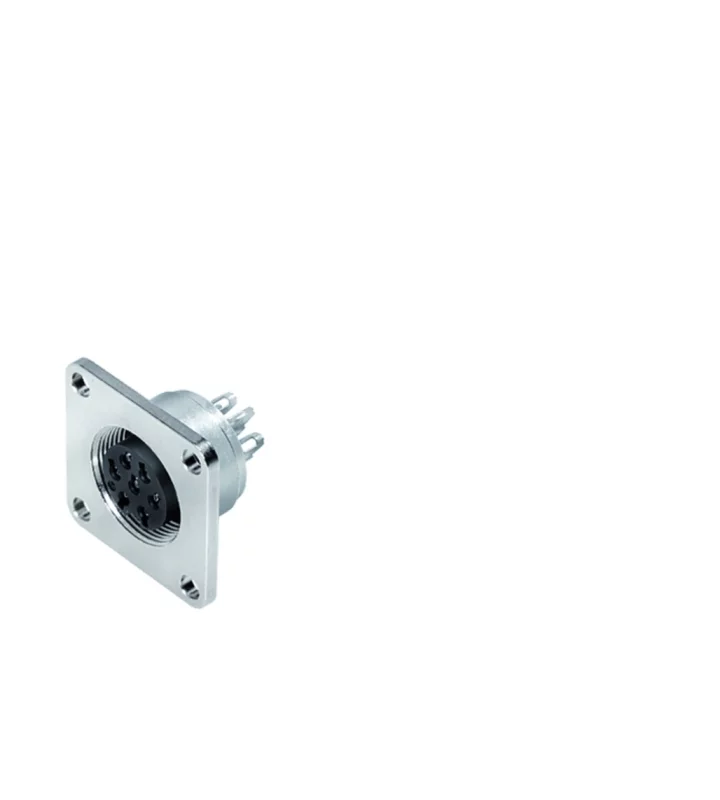

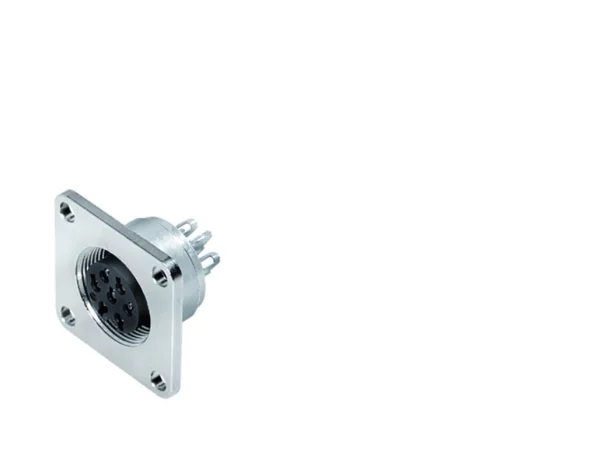

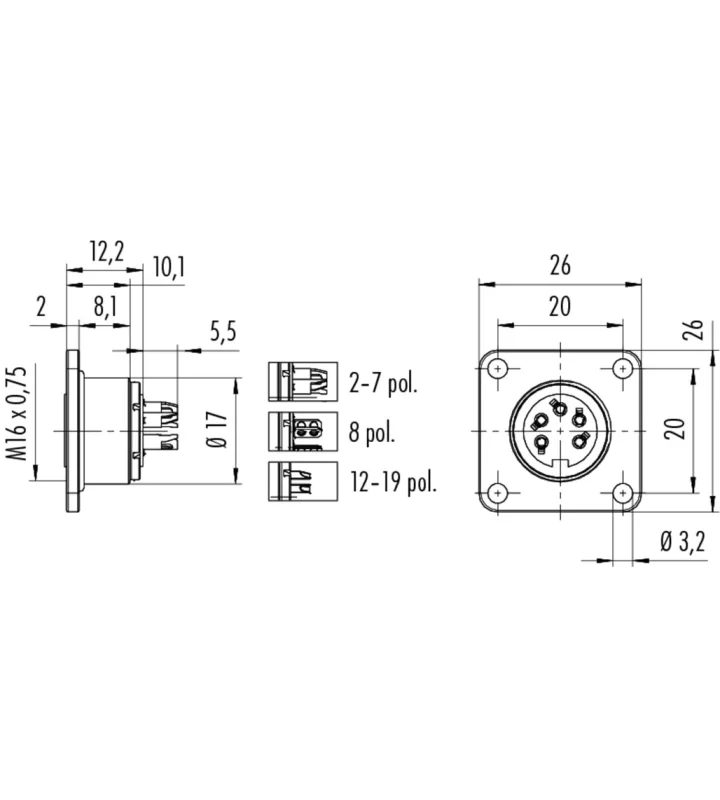

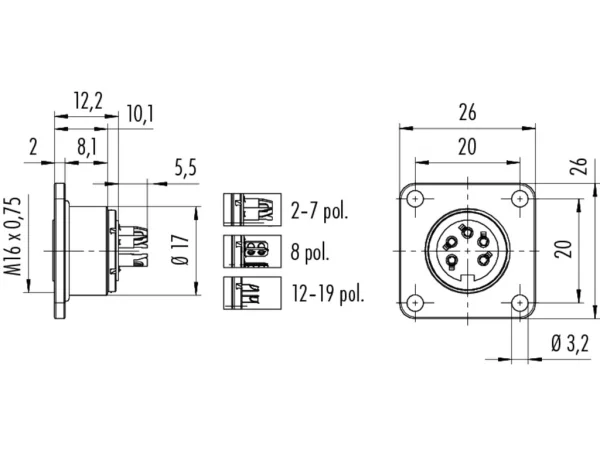

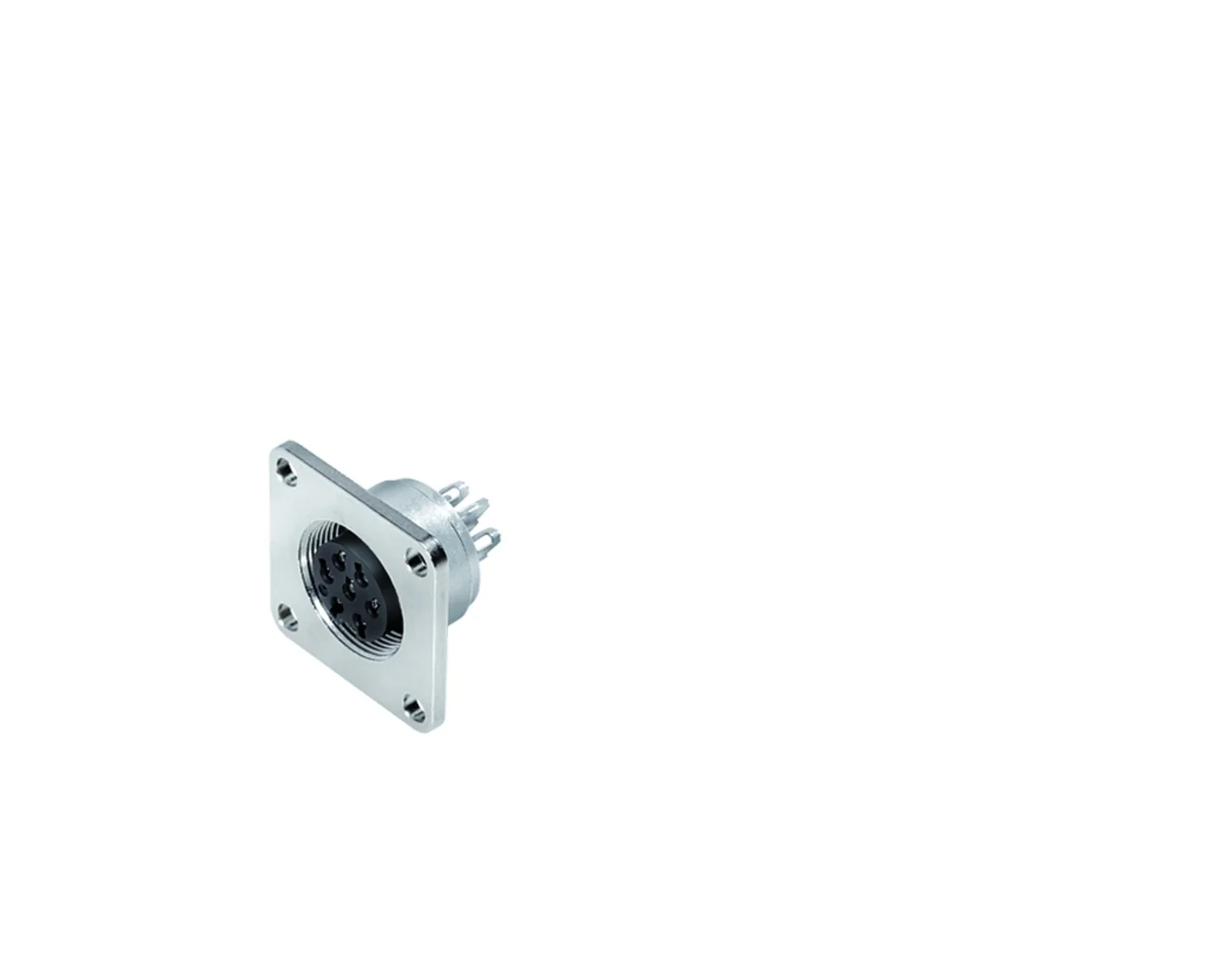

Female panel mount connector
Rectangular flange
Solder
09 0508 300 16
Continue assembling your connector
Add the desired accessories to fully configure your connector.
Specifications
General Characteristics
| Screw size | M16 |
|---|---|
| Series | Miniature |
| Subseries | 423-723-425 |
| Gender | Female |
| Number of contacts | 16 |
| Contact terminal | Solder |
| Upper temperature | +95 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Screw (M16) |
| Mating cycles | >500 |
| Connector Diameter | 17 mm |
| Wire-section | 0.25 mm² |
Electrical parameters
| Nominal current | 3 A |
|---|---|
| Nominal voltage | 60 V |
| Impuls voltage | 500 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 1 |
| Overvoltage categorie | I |
Material
| Material group | III |
|---|---|
| Material of insert | PBT (UL 94 V-0) |
| Material of contact | CuSn (Bronze) |
| Plating | Au (Gold) |
Variations
| Item number | Nominal current | Number of contacts | Nominal voltage | Impuls voltage | Max. contact resistance | Nominal Voltage | Wire-section |
|---|---|---|---|---|---|---|---|
| 09 0104 300 02 | >5 - ≤10 A | 2 | 250 V | 1500 V | 5 mΩ | >200 - ≤400 V | 0.75 mm² |
| 09 0108 300 03 | >5 - ≤10 A | 3 | 250 V | 1500 V | 5 mΩ | >200 - ≤400 V | 0.75 mm² |
| 09 0112 300 04 | >5 - ≤10 A | 4 | 250 V | 1500 V | 5 mΩ | >200 - ≤400 V | 0.75 mm² |
| 09 0116 300 05 | >5 - ≤10 A | 5 | 250 V | 1500 V | 5 mΩ | >200 - ≤400 V | 0.75 mm² |
| 09 0124 300 06 | ≤5 A | 6 | 250 V | 1500 V | 5 mΩ | >200 - ≤400 V | 0.75 mm² |
| 09 0128 300 07 | ≤5 A | 7 | 60 V | 500 V | 5 mΩ | ≤200 V | 0.75 mm² |
| 09 0174 300 08 | ≤5 A | 8 | 60 V | 500 V | 5 mΩ | ≤200 V | 0.75 mm² |
| 09 0132 300 12 | ≤5 A | 12 | 60 V | 500 V | 3 mΩ | ≤200 V | 0.25 mm² |
| 09 0454 300 14 | ≤5 A | 14 | 60 V | 500 V | 3 mΩ | ≤200 V | 0.25 mm² |
| 09 0464 300 19 | ≤5 A | 19 | 60 V | 500 V | 3 mΩ | ≤200 V | 0.25 mm² |
