Male panel mount connector
09 0981 00 04
Specifications
General Characteristics
| Series | Subminiature |
|---|---|
| Subseries | 710 |
| Gender | Male |
| Number of contacts | 4 |
| Contact terminal | Solder |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP40 |
| Locking system | Bayonet |
| Mating cycles | >500 |

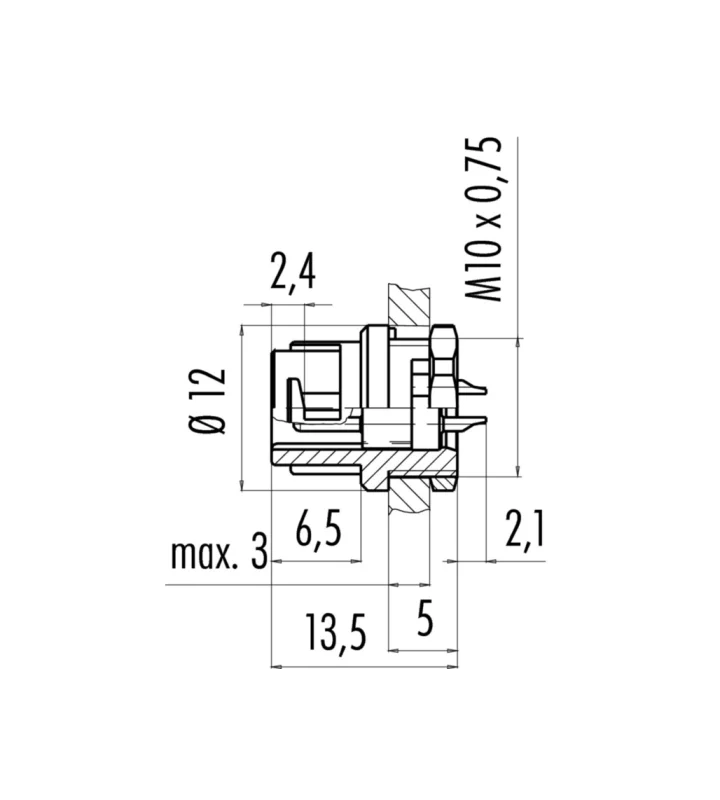

| Connector Diameter | 12 mm |
| Wire-section | 0.25 mm² |
Electrical parameters
| Nominal current | 3 A |
|---|---|
| Nominal voltage | 125 V |
| Impuls voltage | 1500 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 1 |
| Overvoltage categorie | II |
Material
| Material group | III |
|---|---|
| Material of insert | PA (UL 94 V-0) |
| Material of housing | PA (UL 94 HB) |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
Variations
| Item number | Number of contacts | Wire-section |
|---|---|---|
| 09 0973 00 02 | 2 | 0.25 mm² |
| 09 0977 00 03 | 3 | 0.25 mm² |
| 09 0997 00 05 | 5 | 0.25 mm² |
| 09 9477 00 07 | 7 | 0.14 mm² |
| 09 9481 00 08 | 8 | 0.14 mm² |
