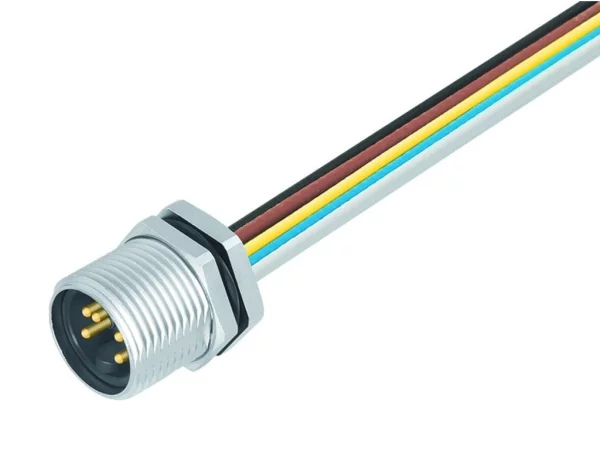

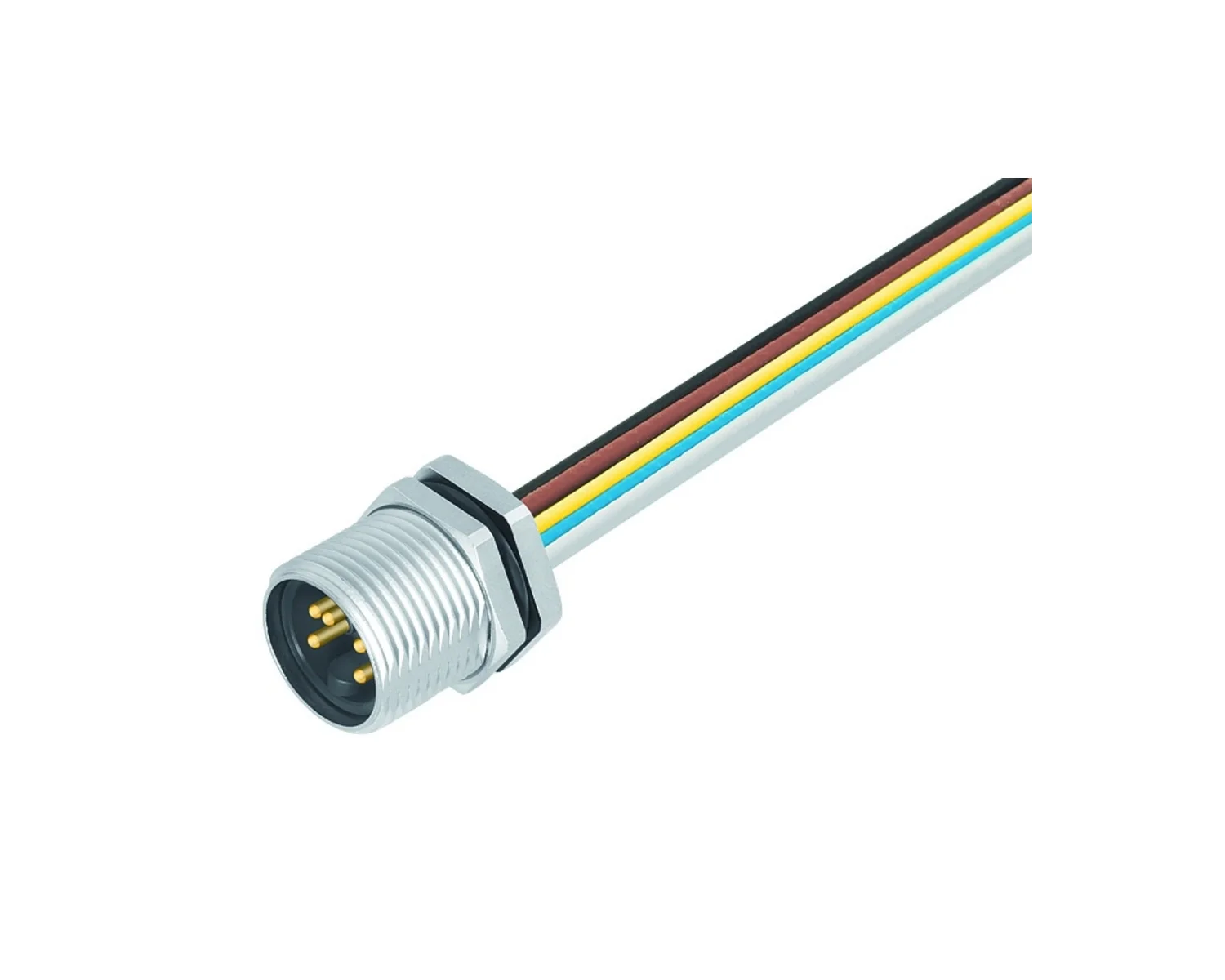

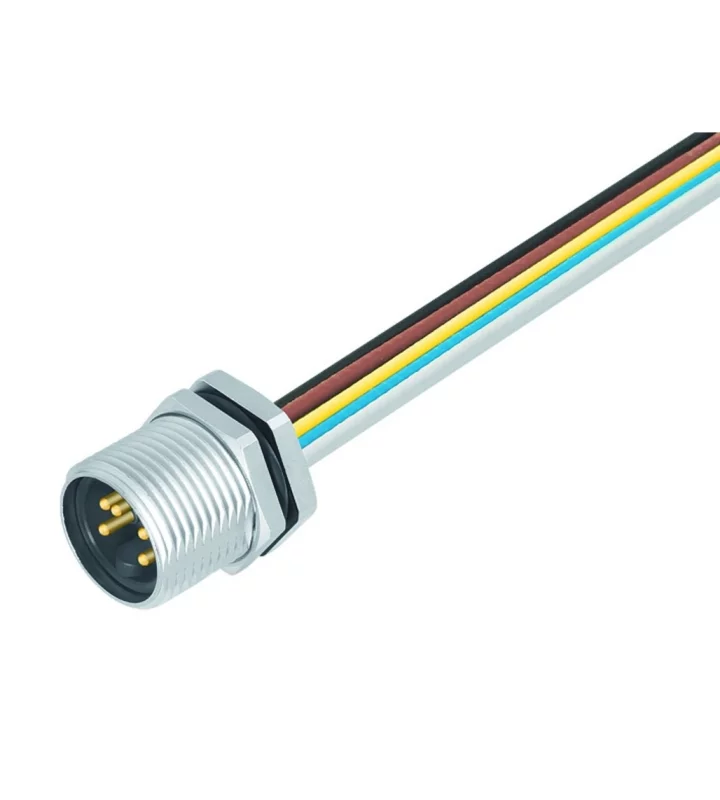

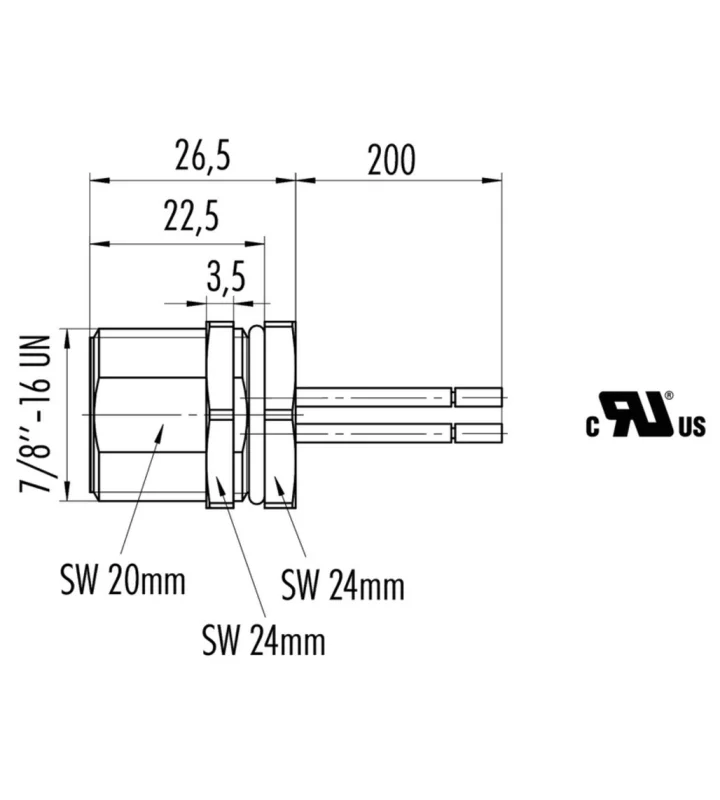

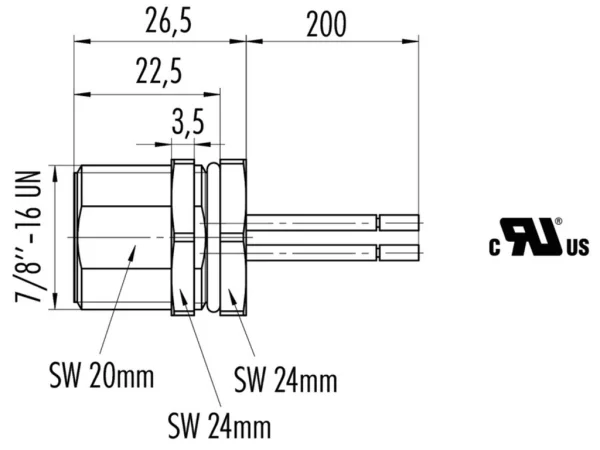

Male panel mount connector
Front fastened, with single wires
UL-approval
09 2451 100 05
Continue assembling your connector
Add the desired accessories to fully configure your connector.
Specifications
General Characteristics
| Screw size | 7/8 |
|---|---|
| Series | Sensor |
| Subseries | 820-870 |
| Gender | Male |
| Number of contacts | 5 |
| Contact terminal | Single wires |
| Upper temperature | +85 °C |
| Lower temperature | -25 °C |
| Protection degree | IP67 |
| Locking system | Screw (7/8"-16 UN) |
| Mating cycles | >100 |
| Connector Diameter | 27 mm |
| Wire-section | 0.82 mm² |
Electrical parameters
| Nominal current | 8 A |
|---|---|
| Nominal voltage | 300 (UL 600) V |
| Impuls voltage | 2500 V |
| Max. contact resistance | 5 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | III |
Material
| Material group | III |
|---|---|
| Material of insert | PUR (UL 94 HB) |
| Material of housing | Brass nickel plated / zinc diecasting nickel plated |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
Variations
| Item number | Number of contacts |
|---|---|
| 09 2447 100 03 | 3 |
| 09 2449 100 04 | 4 |
