Male receptacle
Snap-in version, 8 mm
09 3411 40 03
Specifications
General Characteristics
|
Series |
Sensor
|
|
Subseries |
768-718
|
|
Gender |
Male
|
|
Number of contacts |
3
|
|
Contact terminal |
Solder
|
|
Upper temperature |
+70 °C
|
|
Lower temperature |
-40 °C
|
|
Protection degree |
IP65
|
|
Locking system |
Snap-in
|
|
Mating cycles |
>50
|
|

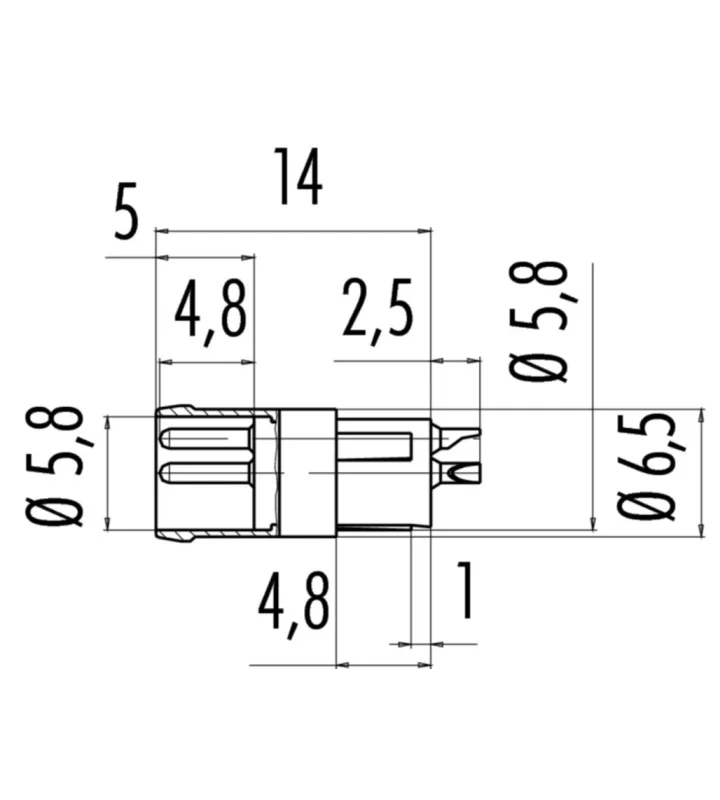

Connector Diameter |
6.5 mm
|
|
Wire-section |
0.25 mm²
|
Electrical parameters
|
Nominal current |
4 A
|
|
Nominal voltage |
10-30 (with LED) V
|
|
Impuls voltage |
500 V
|
|
Max. contact resistance |
3 mΩ
|
|
Pollution degree |
3
|
|
Overvoltage categorie |
II
|
Material
|
Material group |
II
|
|
Material of insert |
PA (UL 94 HB)
|
|
Material of housing |
CuZn (Brass nickel plated)
|
|
Material of contact |
CuZn (Brass)
|
|
Plating |
Au (Gold)
|
