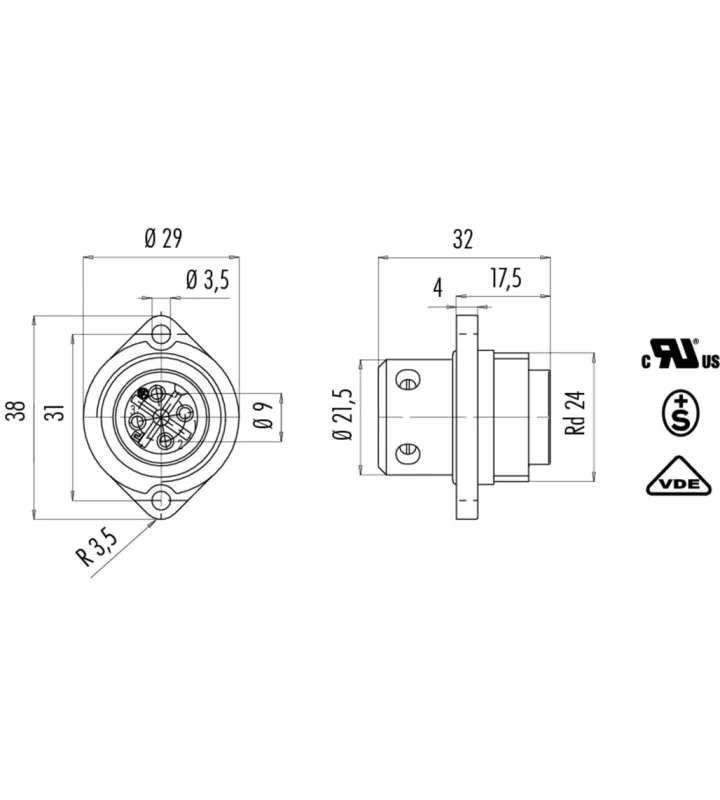

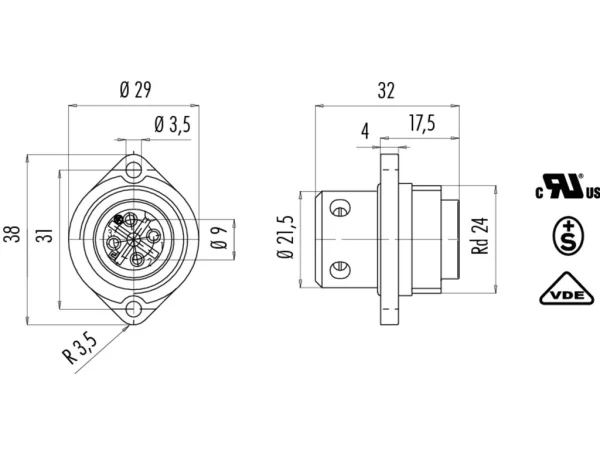

Male panel mount connector
3+PE, central locking, screw clamp connection
UL-approval
09 4223 150 04
Continue assembling your connector
Add the desired accessories to fully configure your connector.
Specifications
General Characteristics
| Screw size | RD24 |
|---|---|
| Series | Power |
| Subseries | 692-693 |
| Gender | Male |
| Number of contacts | 4 |
| Contact terminal | Screw |
| Upper temperature | +100 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Screw (RD24) |
| Mating cycles | >500 |
| Connector Diameter | 29 mm |
| Wire-section | 1,5 - 2,5 mm² |
Electrical parameters
| Nominal current | 16 (12 A UL) |
|---|---|
| Nominal voltage | 600 V |
| Impuls voltage | 6000 V |
| Max. contact resistance | 5 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | III |
Material
| Material group | III |
|---|---|
| Material of insert | PBT |
| Material of contact | CuZn (Brass) |
| Plating | Ag (Silver) |
