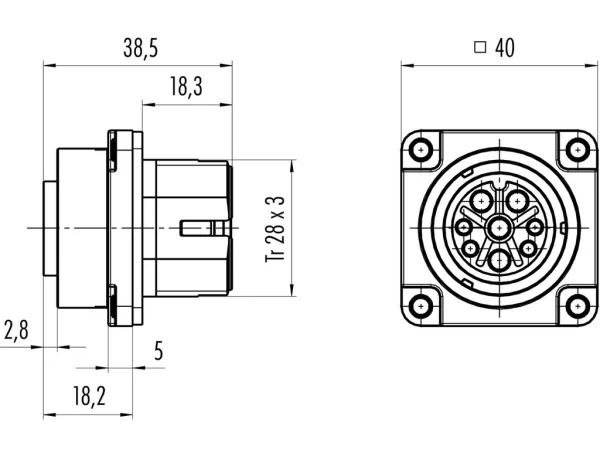

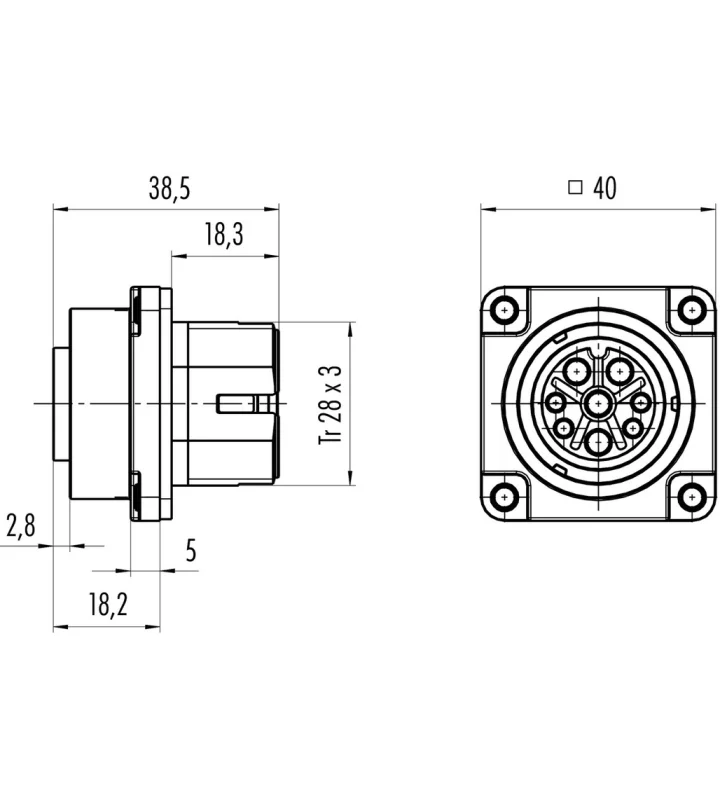

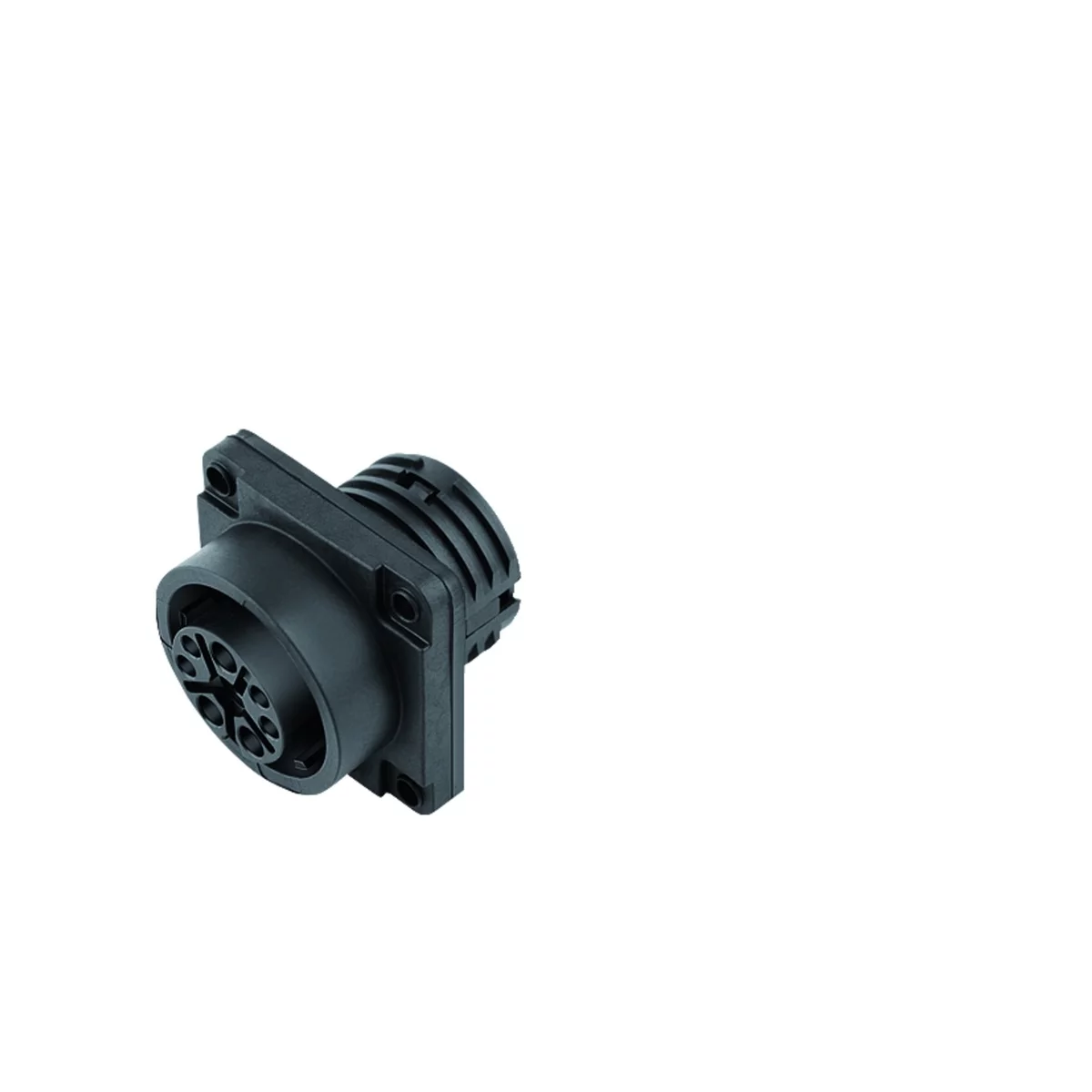

Female panel mount connector
with bayonet Locking
09 6504 000 08
Continue assembling your connector
Add the desired accessories to fully configure your connector.
Specifications
General Characteristics
| Series | Power |
|---|---|
| Subseries | 696 |
| Gender | Female |
| Number of contacts | 8 mixed layout |
| Contact terminal | Crimp |
| Upper temperature | +100 °C |
| Lower temperature | -40 °C |
| Protection degree | IP68/IP69K |
| Locking system | Bayonet |
| Mating cycles | >1000 |
| Wire gauge | 14-26 AWG |
| Wire-section | 0,14-2,50 mm² |
Electrical parameters
| Nominal current | 3 Signal, 25 Power (20A UL) |
|---|---|
| Nominal voltage | 60V Signal/ 400V Power |
| Impuls voltage | 1000 V |
| Max. contact resistance | >10 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | III |
Material
| Material group | I |
|---|---|
| Material of insert | PA |
| Material of housing | PA |
| Material of contact | depending on crimp contact |
| Plating | depending on crimp contact |
