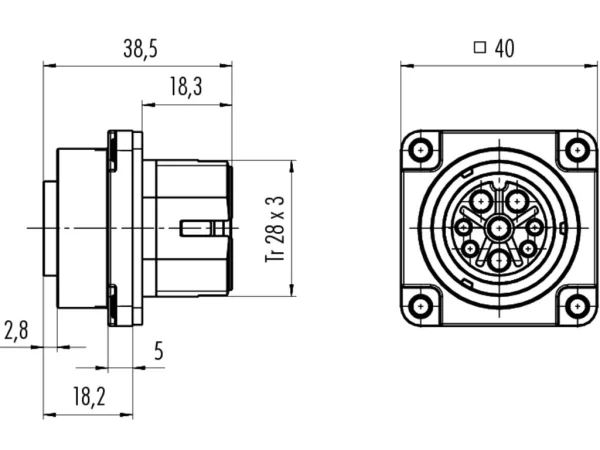

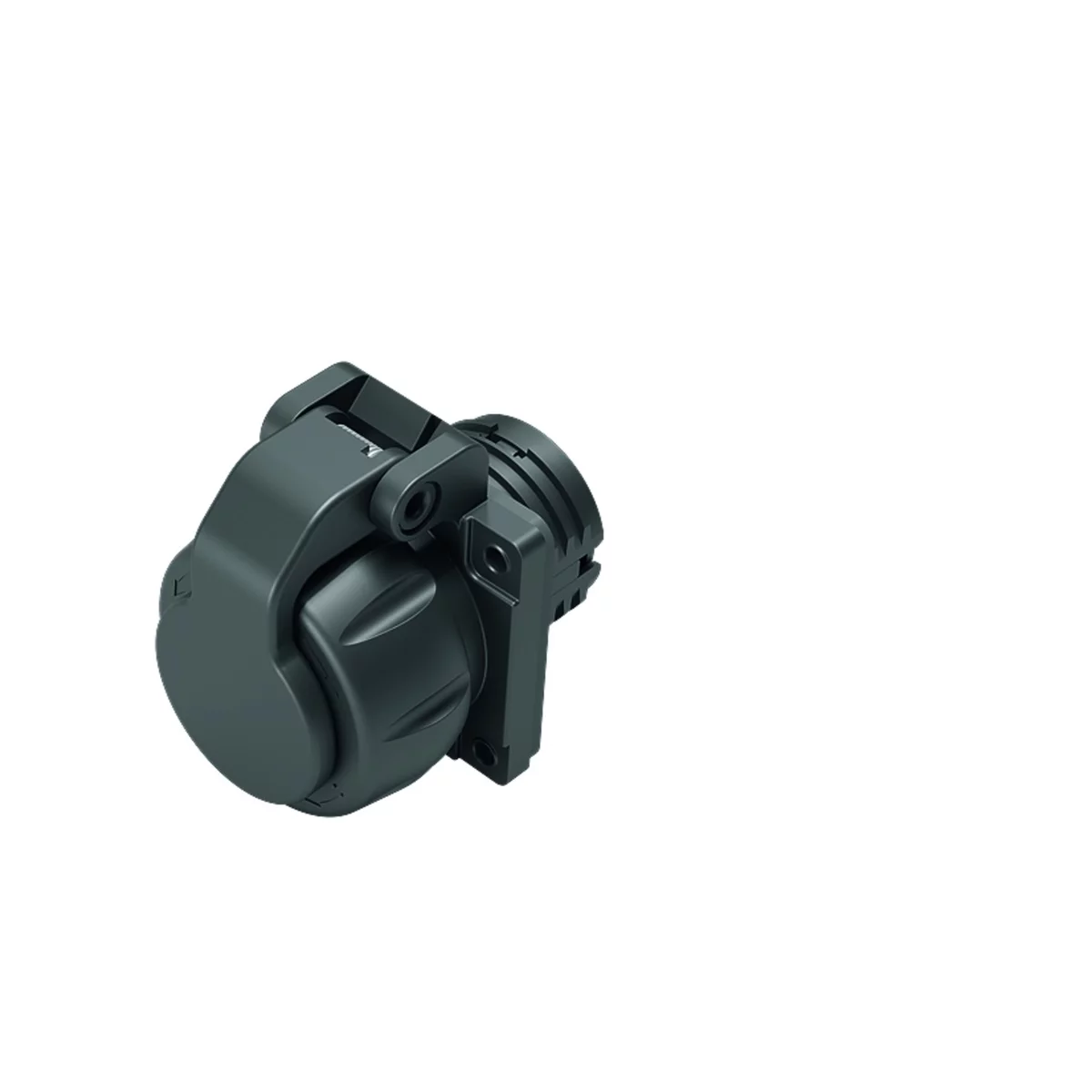

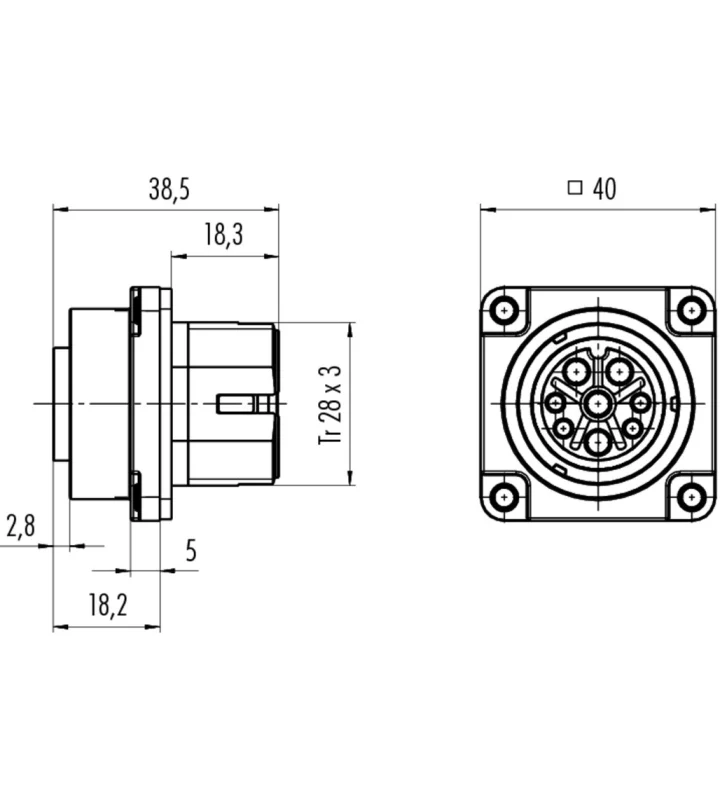

Female panel mount connector
With bayonet locking, Hinged cover
09 6504 200 08
Continue assembling your connector
Add the desired accessories to fully configure your connector.
Specifications
General Characteristics
| Series | Power |
|---|---|
| Subseries | 696 |
| Gender | Female |
| Number of contacts | 8 mixed layout |
| Contact terminal | Crimp |
| Upper temperature | +100 °C |
| Lower temperature | -40 °C |
| Protection degree | IP68/IP69K |
| Locking system | Bayonet |
| Mating cycles | >1000 |
| Wire gauge | 26-14 AWG |
| Wire-section | 0,14-2,5 mm² |
Electrical parameters
| Nominal current | 3 Signal, 25 Power (20A UL) |
|---|---|
| Nominal voltage | 60 Signal/ 400 Power |
| Impuls voltage | 1000 V |
| Max. contact resistance | >10 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | III |
Material
| Material group | I |
|---|---|
| Material of insert | PA |
| Material of housing | PA |
| Material of contact | depending on crimp contact |
| Plating | depending on crimp contact |
Variations
| Item number | Nominal current | Number of contacts | Nominal voltage | Impuls voltage | Nominal Voltage | Mating cycles | Wire gauge | Wire-section |
|---|---|---|---|---|---|---|---|---|
| 09 6492 200 05 | >30 - ≤40 A | 5 | 600 V | 6000 V | >400 - ≤600 V | >1000 | 14-10 AWG | 2,50-6,00 mm² |
| 09 6520 200 12 | ≤5 A | 12 | 250 V | 4000 V | >200 - ≤400 V | >500 | 26-18 AWG | 0,14-0,75 mm² |
