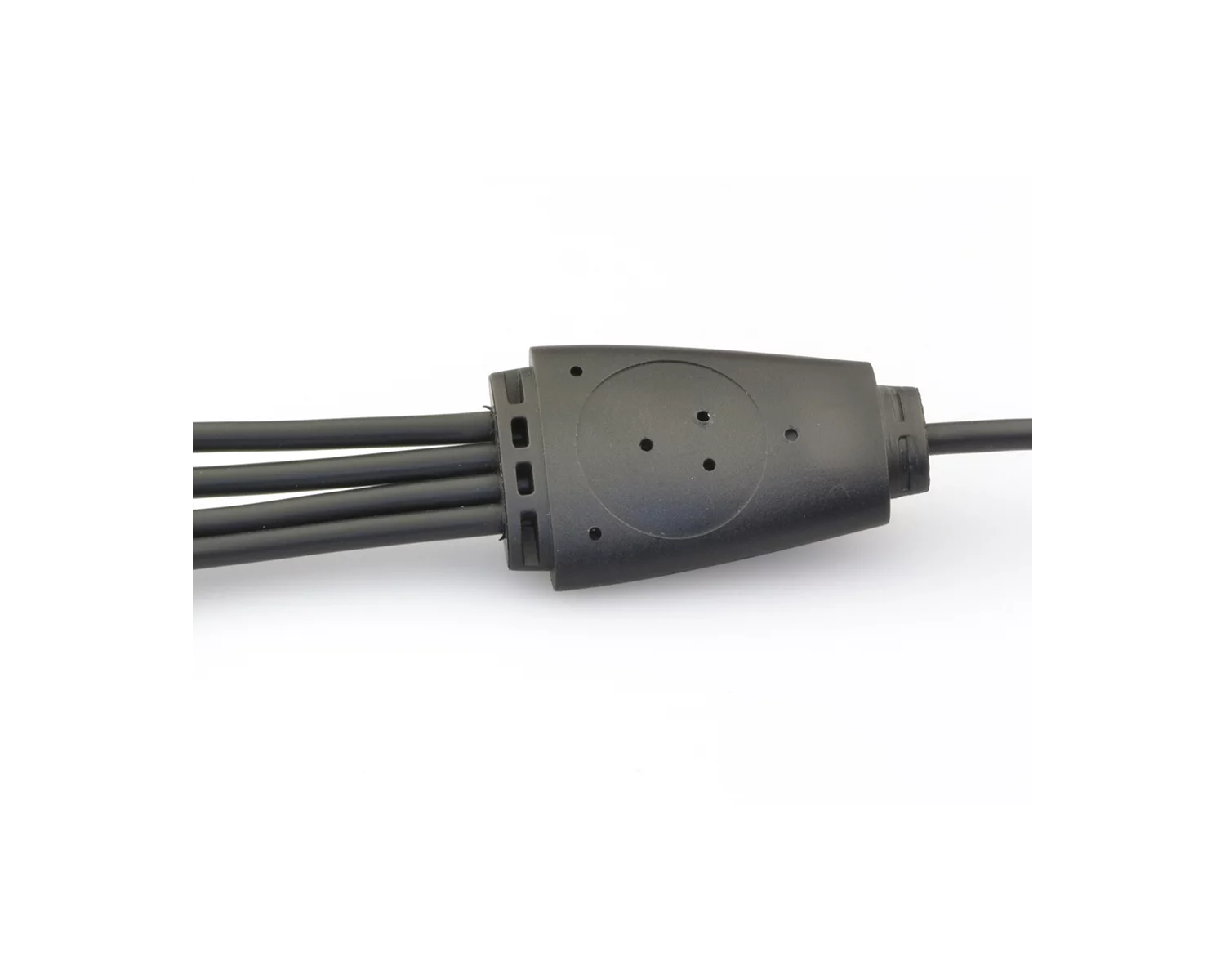

Splitter series 1T*B
1T*B
Specifications
General Characteristics
| Upper temperature | 80 °C |
|---|---|
| Lower temperature | -25 °C |
| IP Protection | IP66 |
| Wire section | 0,14 / 0,2 mm² |
| Remark | Also available as 1T5B and 1T6B |

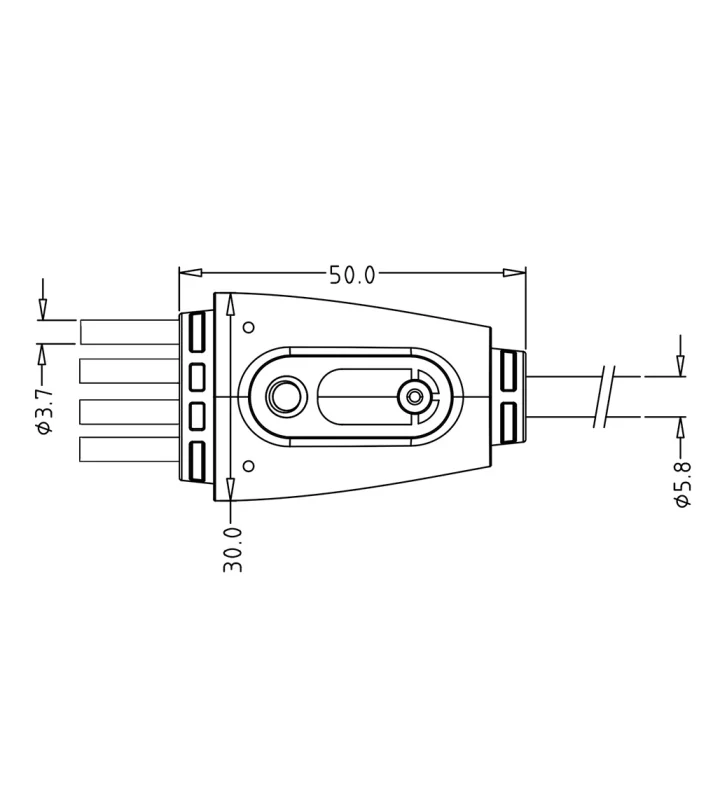

| Splitter size | 35 x 12,5 mm |
Electrical Parameters
| Rated voltage | 48 V AC / 60 V DC |
|---|---|
| Withstanding voltage | 500 V |
| Max. insulation resistance | ≥20 MΩ |
| Max. contact resistance | ≤10 mΩ |
