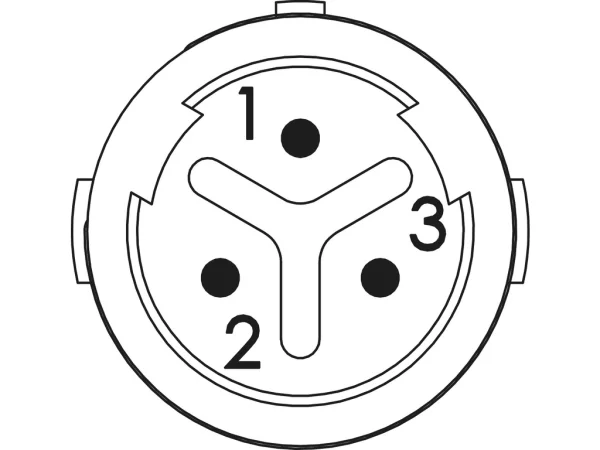

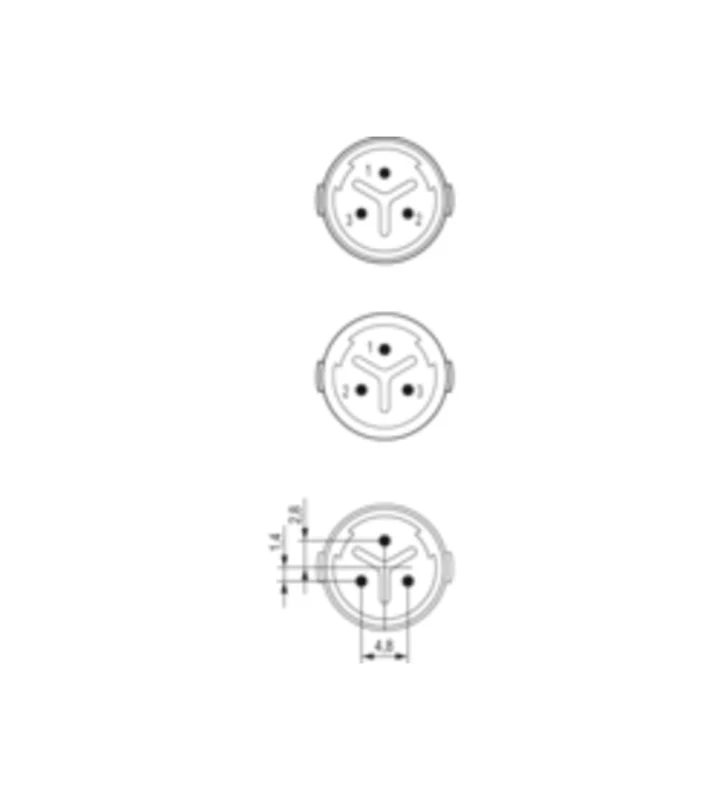

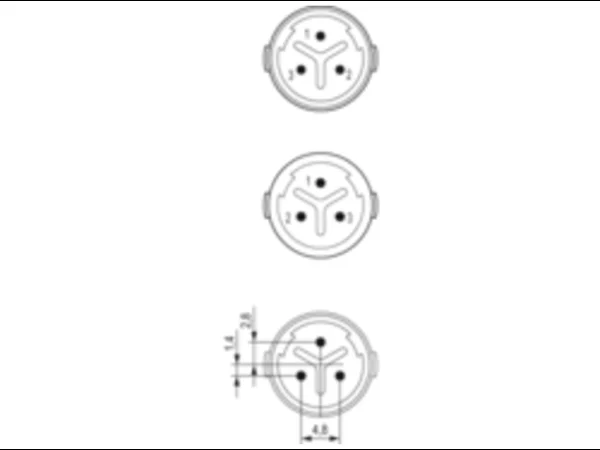

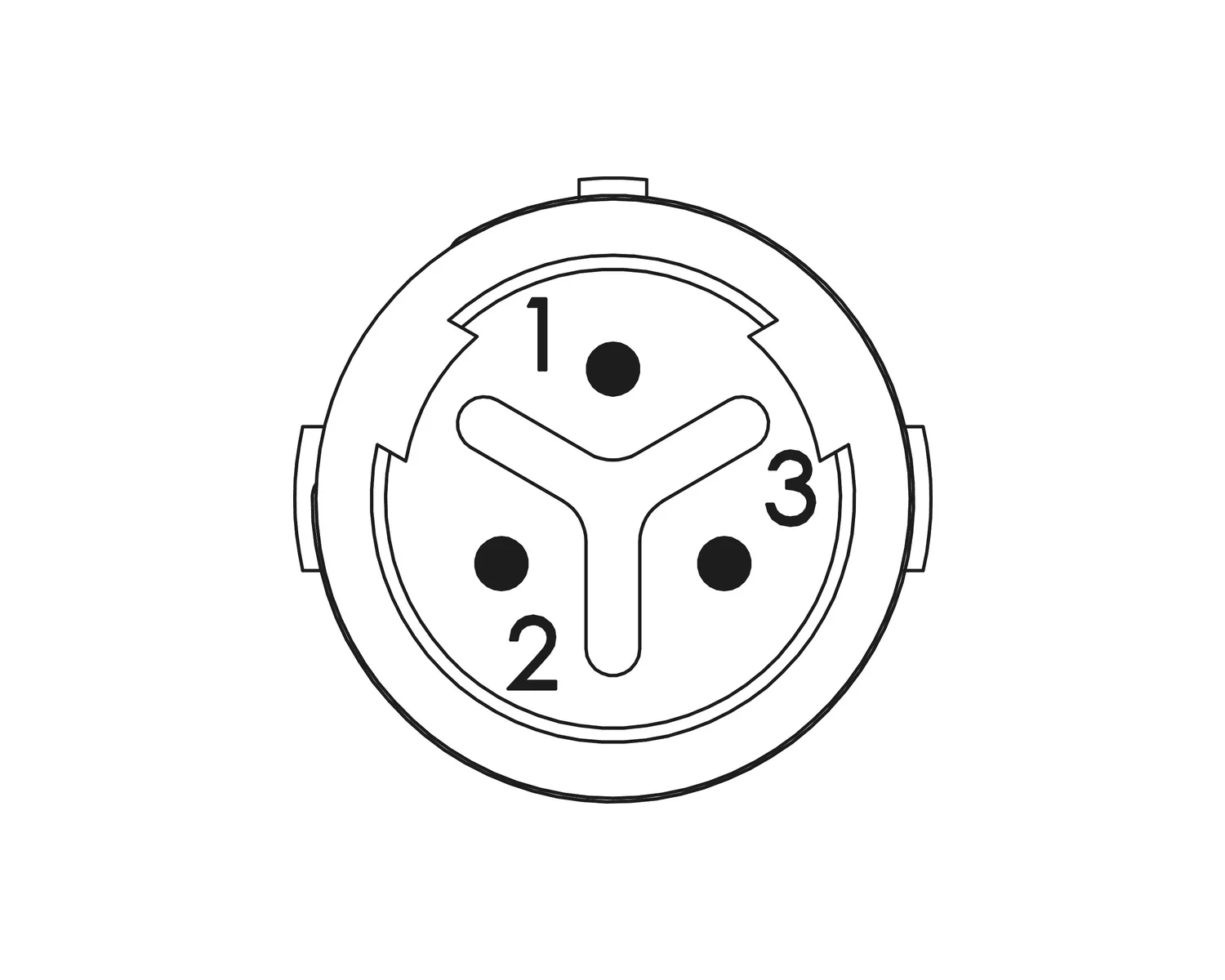

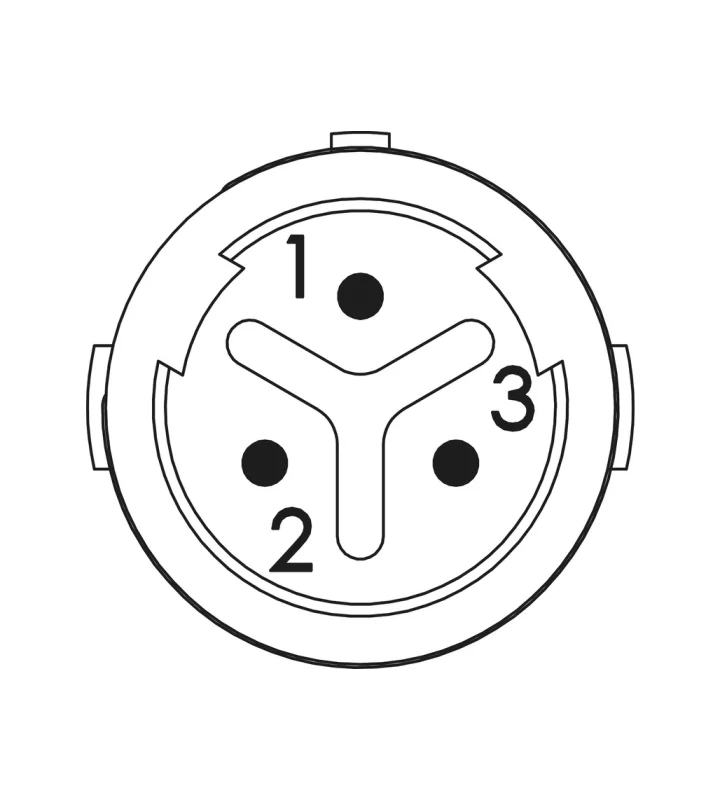

3-pole (3 x 1 mm)
Sockets
7.001.903.118
Continue assembling your connector
Add the desired housings and contacts to fully configure your connector.
Specifications
General Characteristics
| Size | M16 |
|---|---|
| Number of contacts | 3 |
| Gender | Female |
| Upper temperature | +125 °C |
| Lower temperature | -40 °C |
| Locking | Screw locking | Twilock |
| Protection degree | IP67/IP69K |
| Terminal type | Dip-solder |
| Included contacts | dip solder length 17 mm |
| Contact diameter | 1 mm |
Electrical Parameters
| Nominal voltage (degree of pollution 3) | 400 V~ |
|---|---|
| Test voltage | 2500 V~ |
| Nominal current | 8 A |
| Insulation resistance | > 10¹⁰ |
| Max. contact resistance | 3 mΩ |
Material
| Material | Thermoplastic Polyamid PA 6/Fire protection class V-0 |
|---|
General Characteristics
| Contact terminal | Crimp |
|---|
Variations
| Item number | Nominal voltage (degree of pollution 3) | Series | Size | Number of contacts | Test voltage | Nominal voltage (V) | Insulation resistance | Included contacts | Pinout | Coding possibilities | Remark |
|---|---|---|---|---|---|---|---|---|---|---|---|
