Inserts 16-pole

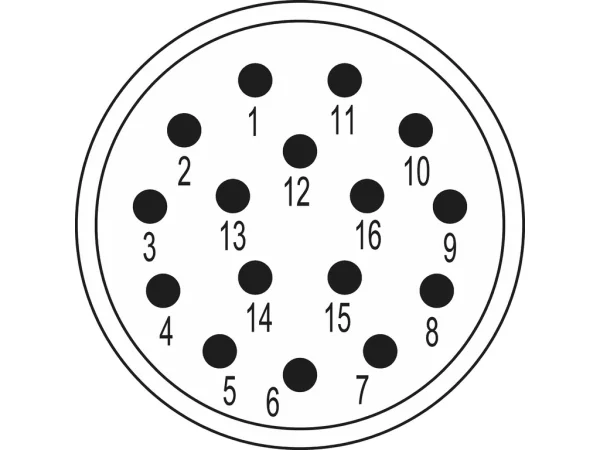

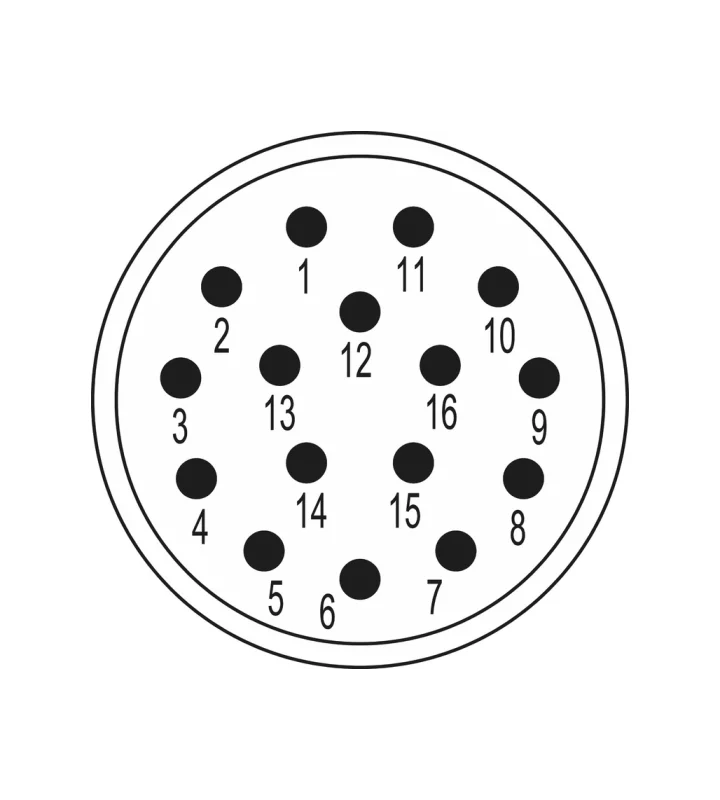

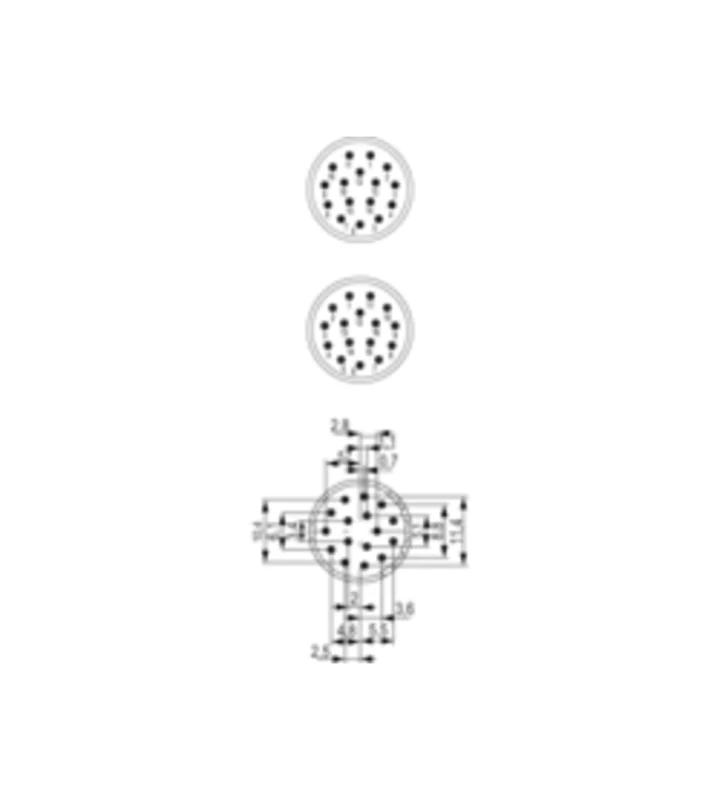

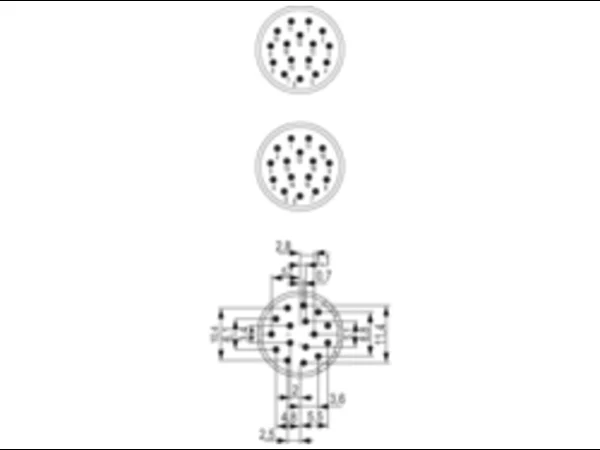

Pinout clockwise, Signal
Sockets
7.001.916.104
Continue assembling your connector
Add the desired housings and contacts to fully configure your connector.
Specifications
General Characteristics
| Size | M23 Signal |
|---|---|
| Number of contacts | 16 |
| Gender | Female |
| Pinout | Clockwise |
| Upper temperature | +125 °C |
| Lower temperature | -40 °C |
| Locking | Screw locking | Twilock |
| Protection degree | IP67/IP69K |
| Wire section | 0,08-1 mm² |
| Terminal type | Solder |
| Included contacts | Solder |
| Contact diameter | 1 mm |
| Coding possibilities | N, S, H, X, Y & Z |
Electrical Parameters
| Nominal voltage (degree of pollution 3) | 160 V~ |
|---|---|
| Test voltage | 1500 V~ |
| Nominal current | 8 A |
| Insulation resistance | > 10⁶ |
| Max. contact resistance | 3 mΩ |
Material
| Material | Thermoplastic Polyamid PA 6/Fire protection class V-0 |
|---|
