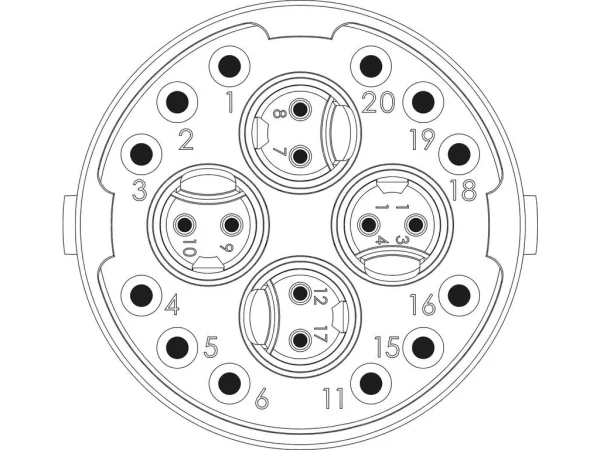

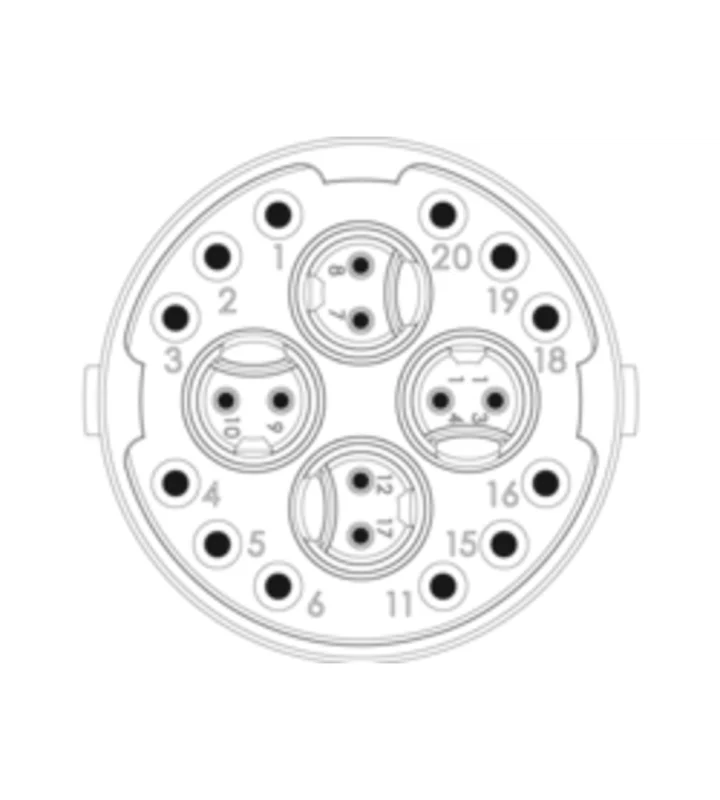

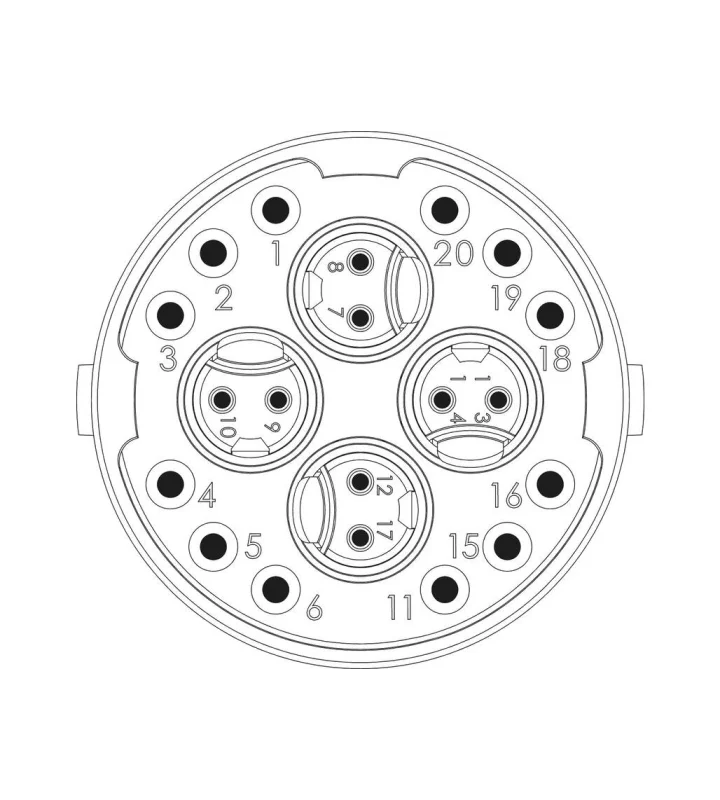

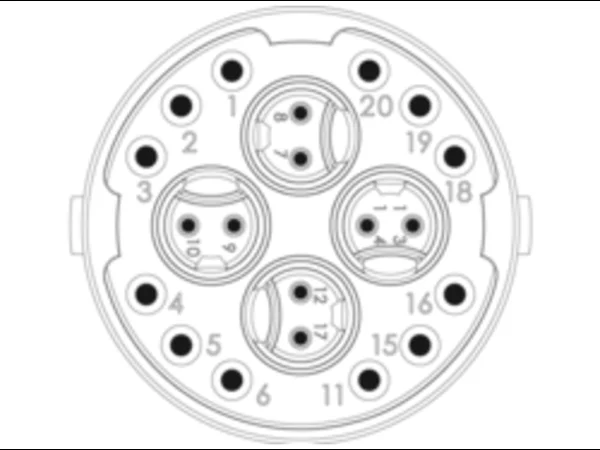

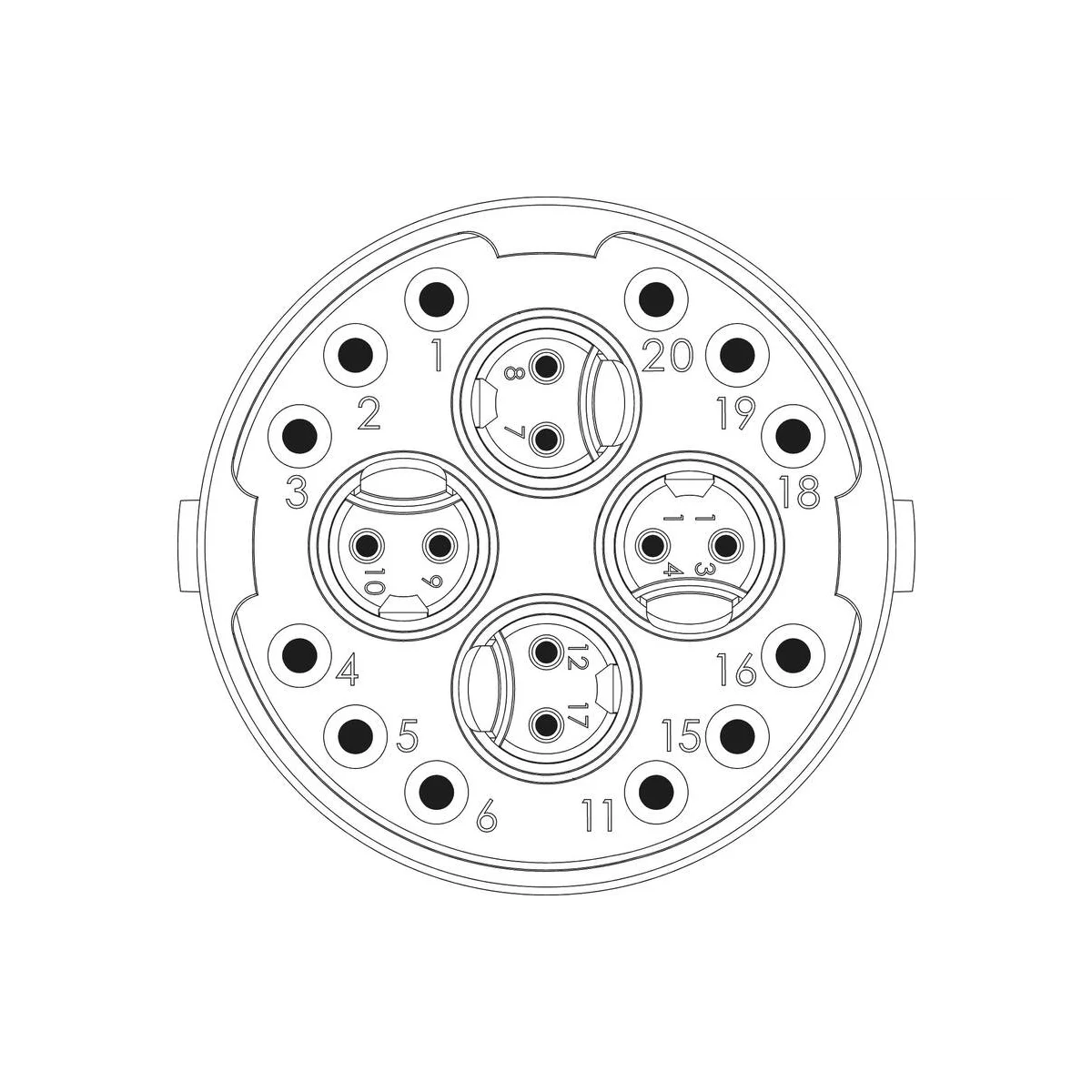

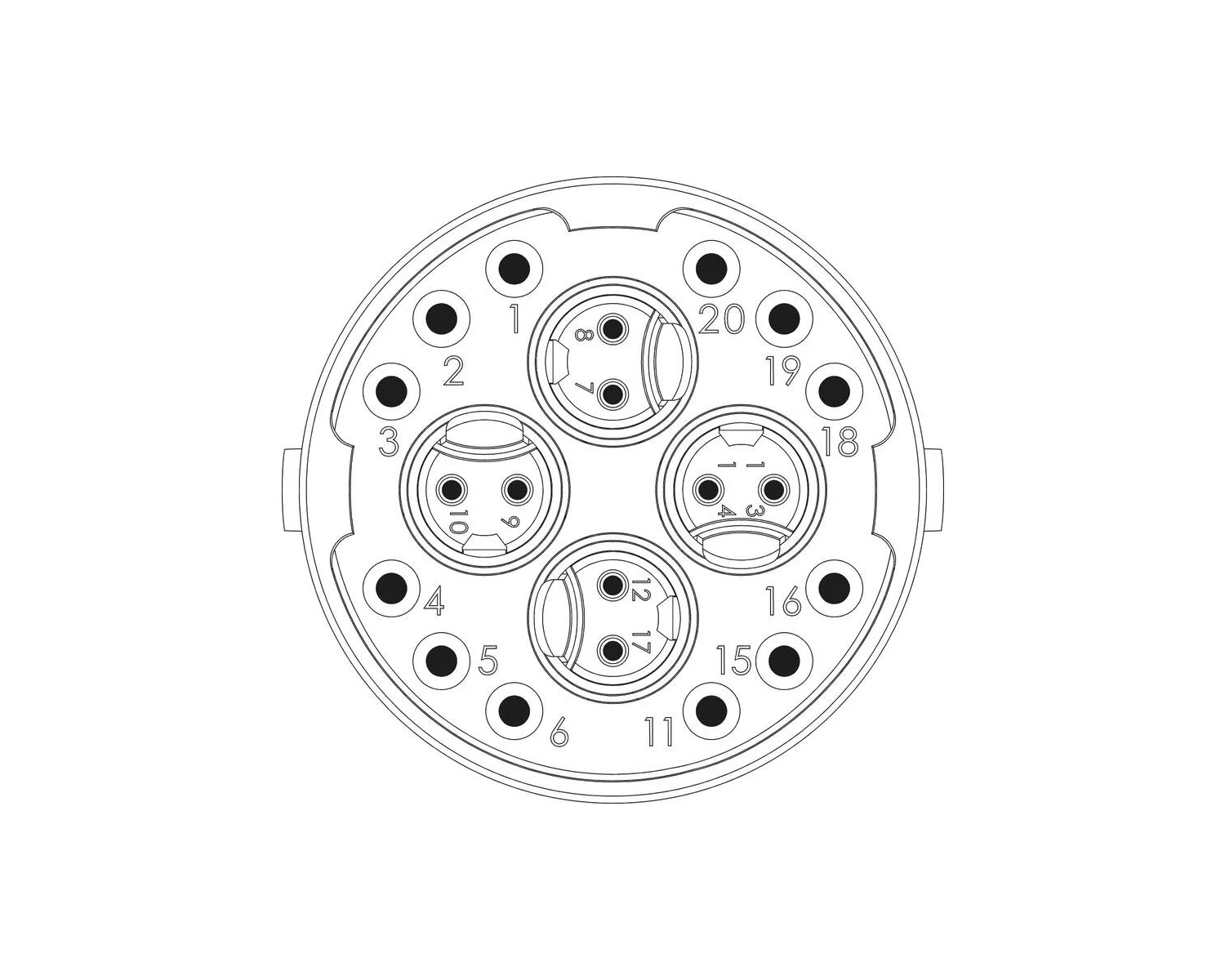

Inserts (4x2)+12-pole
Sockets, Hybrid
7.003.920.102
Continue assembling your connector
Add the desired housings and contacts to fully configure your connector.
Specifications
General Characteristics
| Size | M23 Fast Ethernet |
|---|---|
| Number of contacts | 20 |
| Gender | Female |
| Upper temperature | +125 °C |
| Lower temperature | -40 °C |
| Locking | Screw locking | Twilock |
| Protection degree | IP67 |
| Mating cycles | >1000 |
| Wire section (a) | 0,08-0,34 mm² |
| Wire section (b) | 0,08-1,75 mm² |
| Terminal type | Crimp |
| Required crimp contacts | 8x0,6mm & 12x1mm |
| Contact diameter (a) | 0.6 mm |
| Contact diameter (b) | 1 |
| Remark | For single contacts even 10 A possible |
Electrical Parameters
| Nominal voltage (degree of pollution 3) (a) | 60 V~ |
|---|---|
| Nominal voltage (degree of pollution 3) (b) | 160 V~ |
| Test voltage (a) | 500 V~ |
| Test voltage (b) | 1500 V~ |
| Nominal current (a) | 2 A |
| Nominal current (b) | 8* |
| Insulation resistance | > 10⁶ |
| Max. contact resistance (a) | 3 mΩ |
| Max. contact resistance (b) | 3 mΩ |
| Impedance (at 100MHz) (a) | 100 Ω |
Material
| Material | PBT UL-94 V0, PA6 |
|---|
