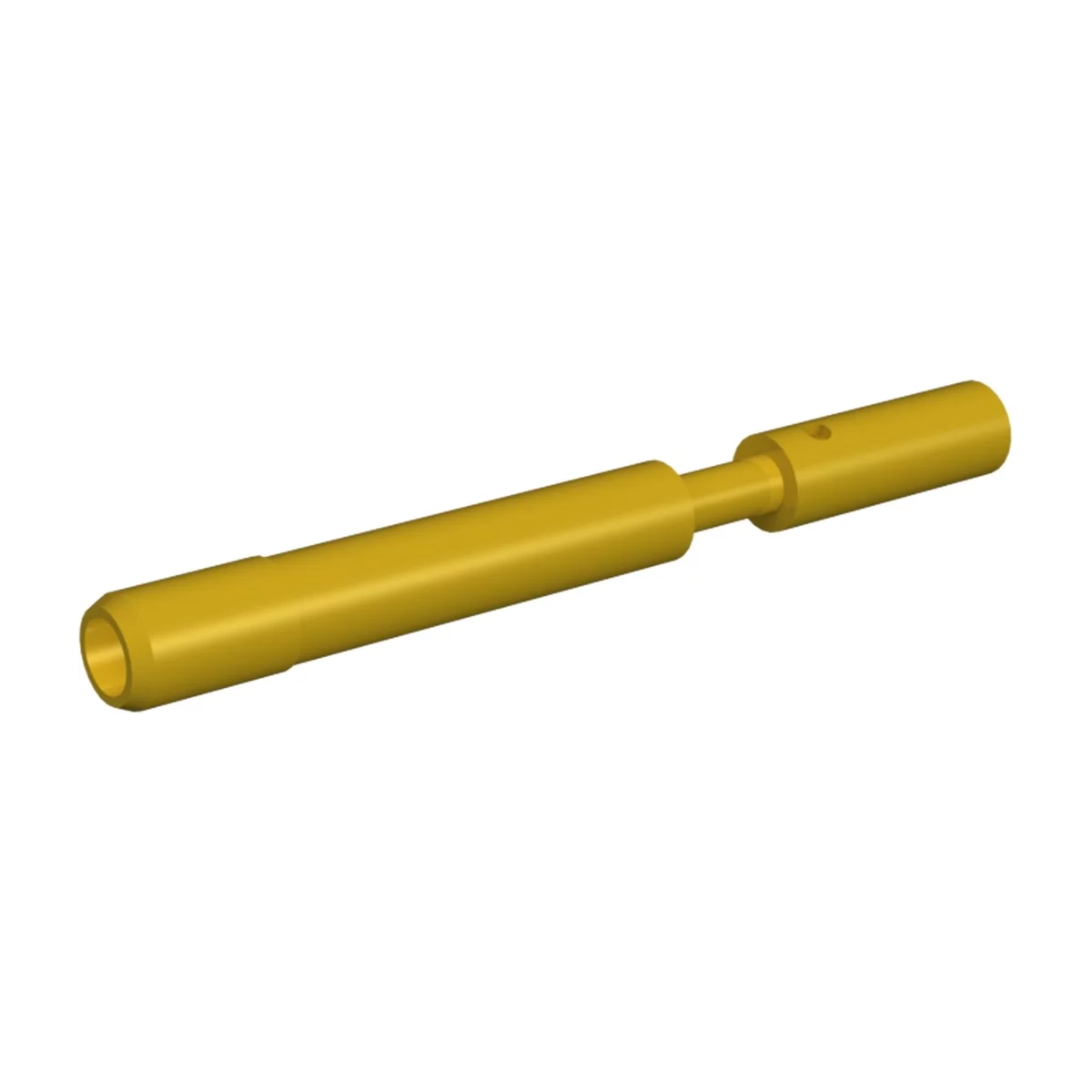

Sockets 1 mm
7.010.901.012
Continue assembling your connector
Add the desired inserts and accessories to fully configure your connector.
Specifications
General Characteristics
| Gender | Socket (Female) |
|---|---|
| Contact diameter | 1 mm |
| Crimp range | 0,08 - 0,56 (AWG 28 - 20) mm² |
| Contact terminal | Crimp |
| Contact type process | Machined |
Material
| Material of contact | Brass Alloy |
|---|---|
| Material contact surface | Nickel and glold plated (0,25 µm Au) |
