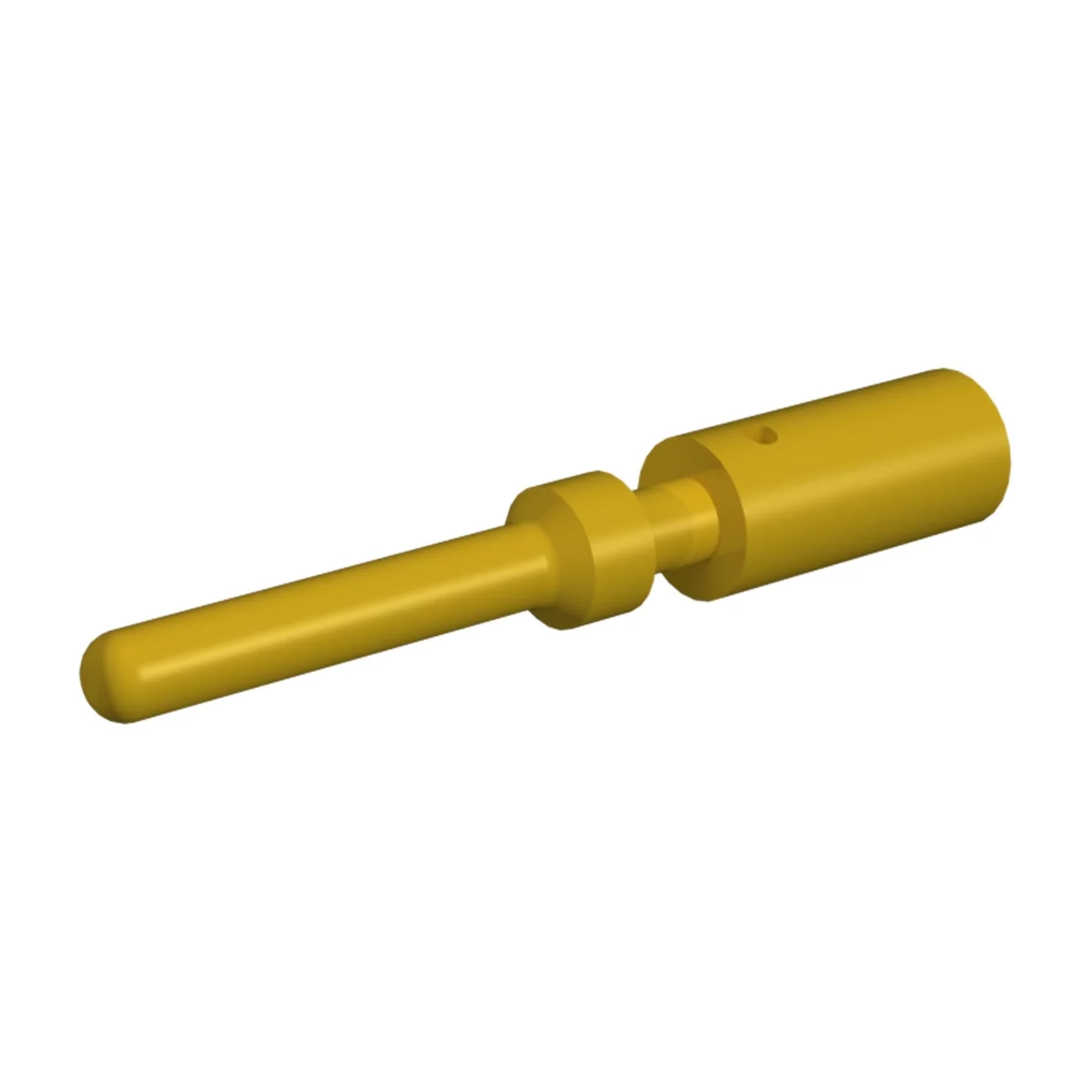

Pins 1,25 mm
7.010.981.211
Continue assembling your connector
Add the desired inserts and accessories to fully configure your connector.
Specifications
General Characteristics
| Gender | Pin (Male) |
|---|---|
| Contact diameter | 1.25 mm |
| Crimp range | 0,34 - 1,5 (AWG 20 - 16) mm² |
| Contact terminal | Crimp |
| Contact type process | Machined |
Material
| Material of contact | Brass Alloy |
|---|---|
| Material contact surface | Nickel and glold plated (0,25 µm Au) |
