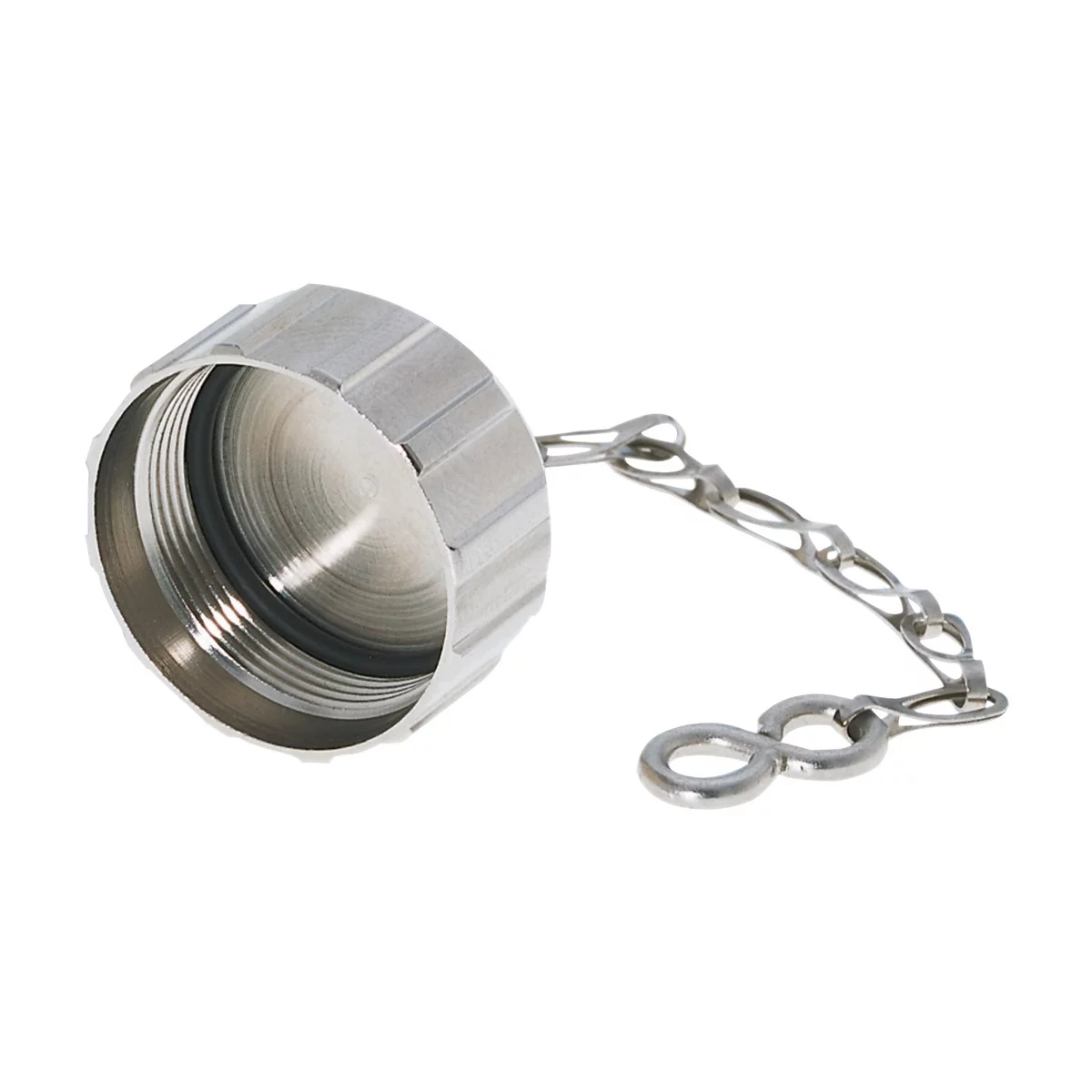

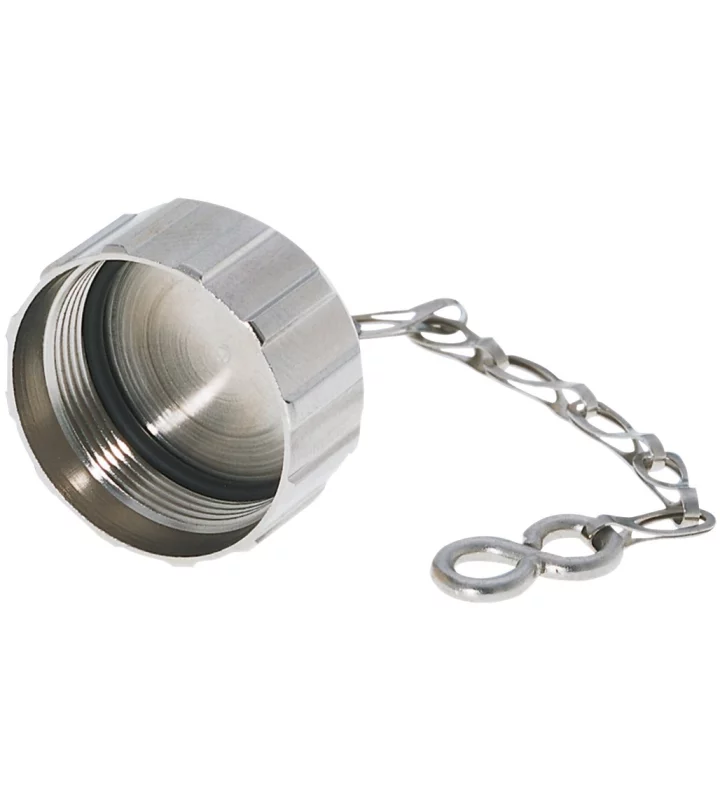

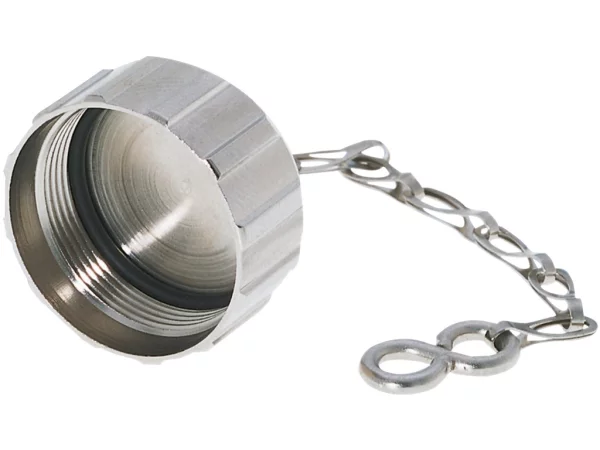

Brass protective cap with chain
For connectors with male thread
7.010.9S1.002
Specifications
General Characteristics
| Accessory type | Protective cap |
|---|---|
| Suitable for | Circular connector with external thread, M23 Fast Ethernet PoE, M23 Hybrid Type 1, M23 Power, M23 RJ45, M23 Signal (except TWILOCK/-S) |
| Length | 100 |
| Shape | Round |
| Locking type | Screw |
| Seal type | O-Ring |
| Protection class | IP67/IP69K |
| Temperature range | -40 to +125 |
| Remark | Length 100 mm |
Material
| Material | Nickel-plated brass |
|---|---|
| Material seals/o-rings | NBR |
