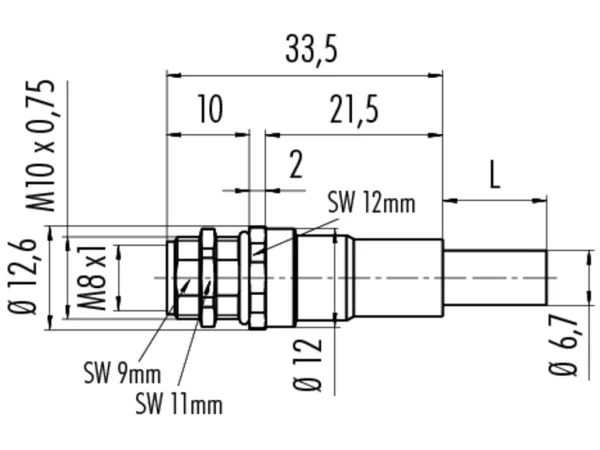

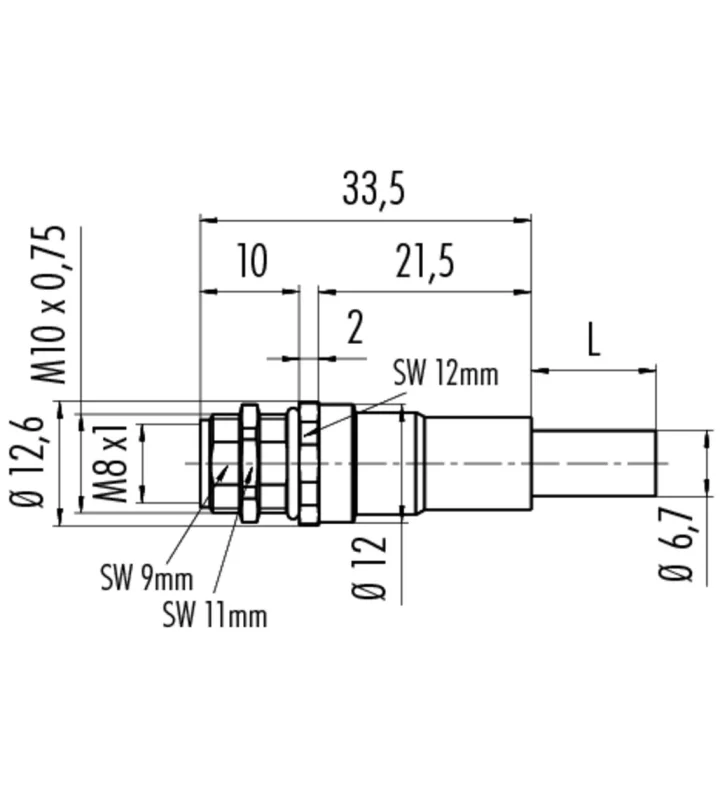

Female panel mount connector
Front fastened
With ethernet cable
70 3420 005 04
Specifications
General Characteristics
| Screw size | M8 |
|---|---|
| Series | Sensor |
| Subseries | 768-718 |
| Gender | Female |
| Number of contacts | 4 |
| Contact terminal | Dip solder |
| Upper temperature | +60 °C |
| Lower temperature | -25 °C |
| Protection degree | IP67 |
| Locking system | Screw (M8) |
| Mating cycles | >50 |
| Connector Diameter | 12.6 mm |
| Cable Length | 0.5 m |
| Cable sheath | 6.7 mm |
| Radius cable fixed | min. 5xd |
| Radius cable movable | min.15xd |
| Single lead structure | 7x0,34 (AWG22) |
Electrical parameters
| Nominal current | 4 A |
|---|---|
| Nominal voltage | 60 V |
| Impuls voltage | 800 V |
| Max. contact resistance | 3 mΩ |
| Conductor resistance | 55 |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Material group | II |
|---|---|
| Material of housing | PA, Zink Diecasting nickel plated, CuZn (Brass nickel plated) |
| Material of contact | CuSn (Bronze) |
| Plating | Au (Gold) |
| Housing of cable | PUR green |
| Insulation single lead | Polyolefin |
