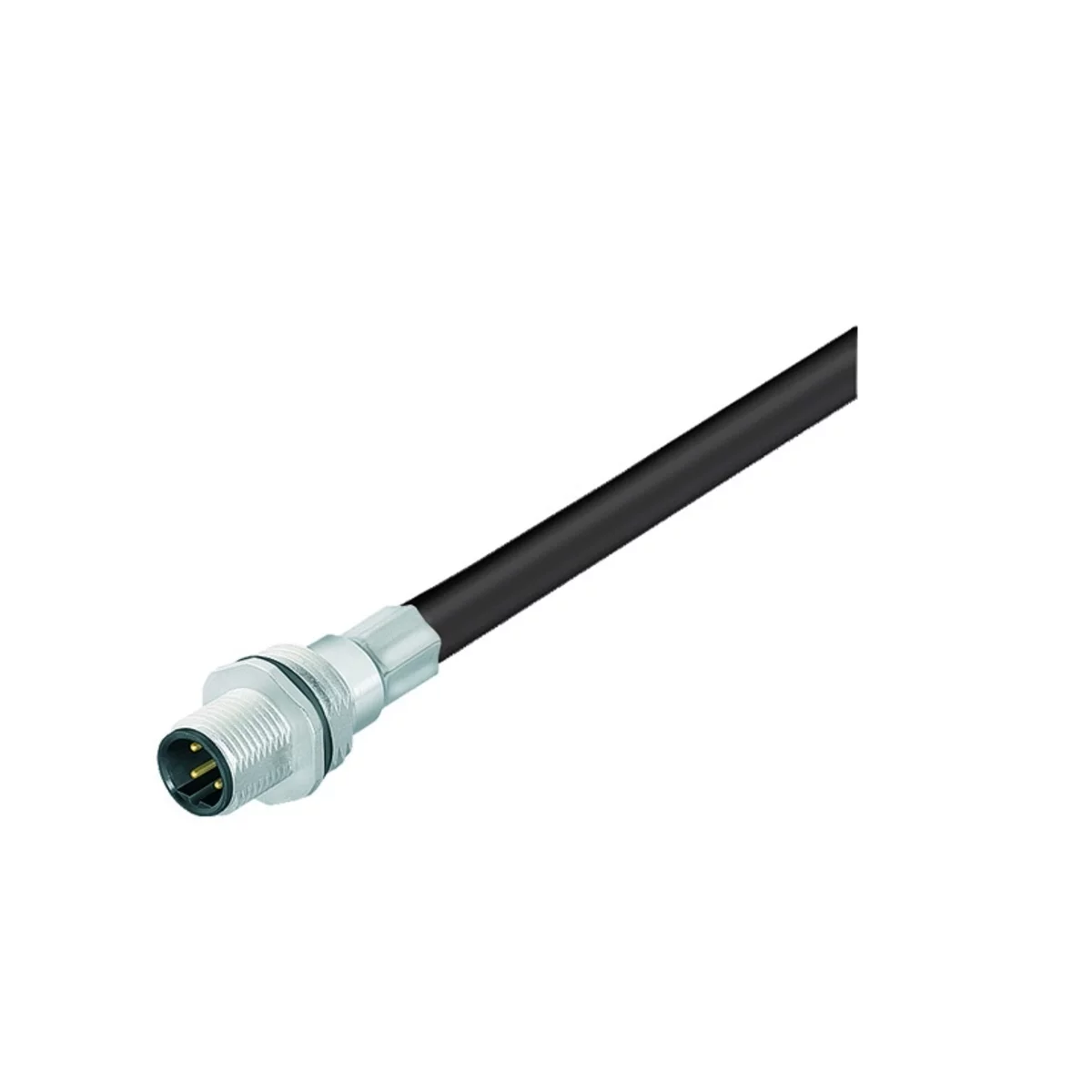

Male panel mount connector
M16, with shielded PUR cable
70 3441 785 05
Continue assembling your connector
Add the desired accessories to fully configure your connector.
Specifications
General Characteristics
| Screw size | M12-A |
|---|---|
| Series | Sensor |
| Subseries | 713-763 |
| Gender | Male |
| Number of contacts | 5 |
| Contact terminal | PUR-cable |
| Upper temperature | 70 °C |
| Lower temperature | -5 °C |
| Protection degree | IP68* |
| Locking system | Screw (M12-A) |
| Mating cycles | >100 |
| Connector Diameter | 18 mm |
| Cable Length | 0.5 m |
| Cable diameter | 5,3 mm |
| Wire-section | 0.25 mm² |
| Fixing thread | M16 x 1,5 |
| Remark* | *When built-in, connected and locked with counterpart |
Electrical parameters
| Nominal current | 4 A |
|---|---|
| Nominal voltage | 125 V |
| Impuls voltage | 1500 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Material group | II |
|---|---|
| Material of insert | PA |
| Material of housing | Brass/zinc diecasting nickel plated |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
Variations
| Item number | Number of contacts | Nominal voltage | Impuls voltage | Cable diameter |
|---|---|---|---|---|
| 70 3481 785 08 | 8 | 60 V | 800 V | 6 mm |
