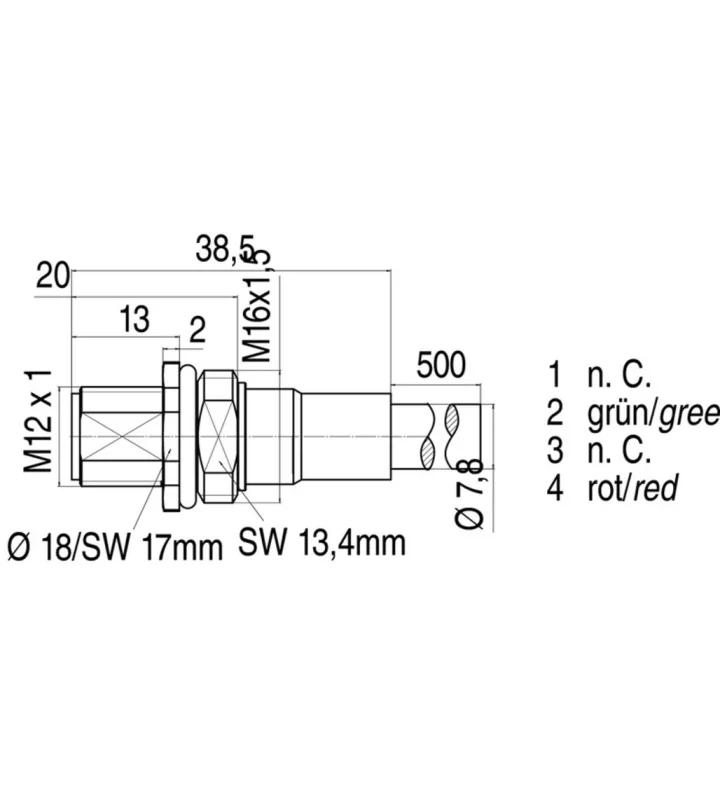

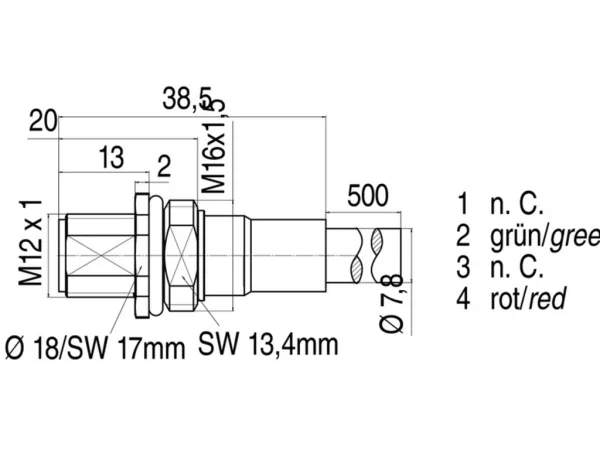

Male panel mount connector
M16, with PROFIBUS-cable, shielded
70 4433 246 04
Continue assembling your connector
Add the desired accessories to fully configure your connector.
Specifications
General Characteristics
| Screw size | M12-B |
|---|---|
| Series | Sensor |
| Subseries | 715-766 |
| Gender | Male |
| Number of contacts | 2 |
| Contact terminal | Cable |
| Upper temperature | +60 °C |
| Lower temperature | -20 °C |
| Protection degree | IP68* |
| Locking system | Screw (M12-B) |
| Mating cycles | >100 |
| Connector Diameter | 18 mm |
| Cable Length | 0.5 m |
| Cable diameter | 7,8 mm |
| Wire-section | 0.25 mm² |
| Fixing thread | M16x1,5 |
| Remark* | *When built-in, connected and locked with counterpart |
Electrical parameters
| Nominal current | 4 A |
|---|---|
| Nominal voltage | 250 V |
| Impuls voltage | 2500 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Material group | II |
|---|---|
| Material of insert | PA |
| Material of housing | Brass / Zinc diecasting nickel plated |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
