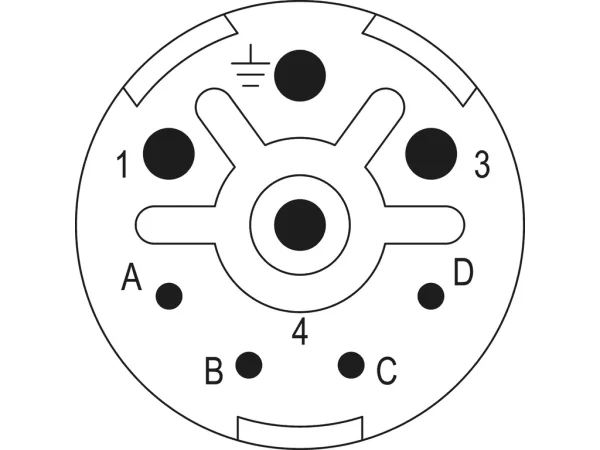

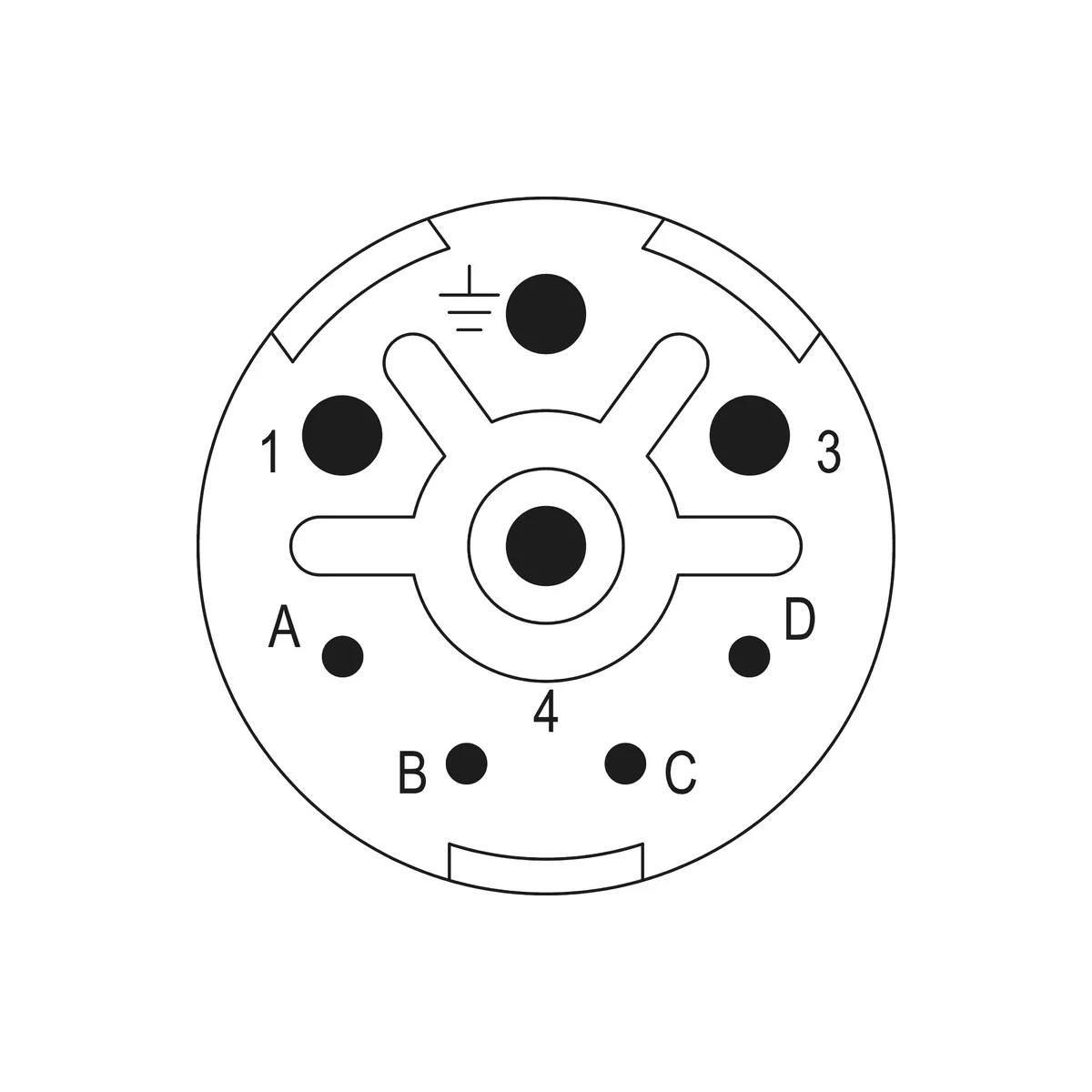

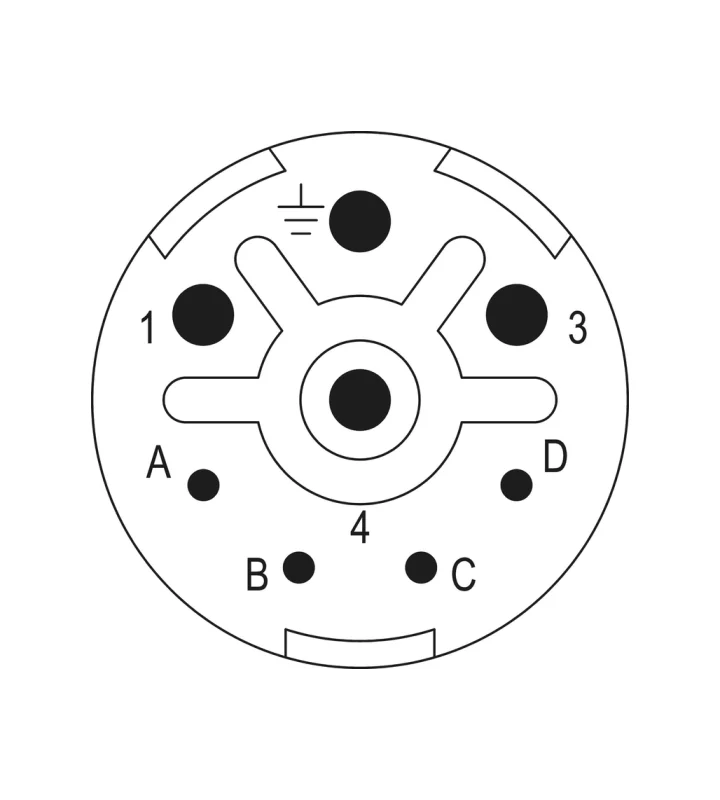

Inserts 8-pole
Sockets, power
7.084.943.122
Continue assembling your connector
Add the desired housings and contacts to fully configure your connector.
Specifications
General Characteristics
| Size | M23 Power |
|---|---|
| Number of contacts | 8 |
| Gender | Female |
| Upper temperature | +125 °C |
| Lower temperature | -40 °C |
| Locking | Screw locking | Twilock |
| Protection degree | IP67/IP69K |
| Mating cycles | >1000 |
| Wire section (a) | 0,14-1,5 mm² |
| Wire section (b) | 0,75-4 mm² |
| Terminal type | Crimp |
| Required crimp contacts | 4x1mm & 4x2mm |
| Contact diameter (a) | 1 mm |
| Contact diameter (b) | 2 |
Electrical Parameters
| Nominal voltage (degree of pollution 3) (a) | 300 V~ |
|---|---|
| Nominal voltage (degree of pollution 3) (b) | 600 V~ |
| Test voltage (a) | 2500 V~ |
| Test voltage (b) | 4000 V~ |
| Nominal current (a) | 8 A |
| Nominal current (b) | 28 A |
| Insulation resistance | > 10¹³ |
| Max. contact resistance (a) | 3 mΩ |
| Max. contact resistance (b) | 3 mΩ |
Material
| Material | Thermoplastic Polyamid PA 6/Fire protection class V-0 |
|---|
