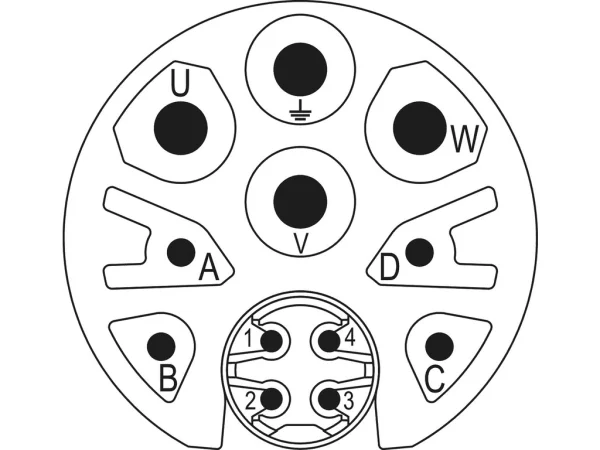

Inserts 12-pole
Sockets, Hybrid
7.084.944.102
Continue assembling your connector
Add the desired housings and contacts to fully configure your connector.
Specifications
General Characteristics
| Size | M23 Hybrid |
|---|---|
| Number of contacts | 12 |
| Gender | Female |
| Upper temperature | +125 °C |
| Lower temperature | -40 °C |
| Locking | Screw locking | Twilock |
| Protection degree | IP67 |
| Mating cycles | >1000 |
| Wire section (a) | 0,75-4 mm² |
| Wire section (b) | 0,14-1 mm² |
| Wire section (c) | 0,08-0,34 mm² |
| Terminal type | Crimp |
| Required crimp contacts | 4x2mm & 4x1mm & 4x0,6mm |
| Contact diameter (a) | 2 mm |
| Contact diameter (b) | 1 |
| Contact diameter (c) | 0.6 mm |
Electrical Parameters
| Nominal voltage (degree of pollution 3) (a) | 630 V~ |
|---|---|
| Nominal voltage (degree of pollution 3) (b) | 300 V~ |
| Nominal voltage (degree of pollution 3) (c) | 60 V~ |
| Test voltage (a) | 4000 V~ |
| Test voltage (b) | 2500 V~ |
| Test voltage (c) | 500 V~ |
| Nominal current (a) | 28 A |
| Nominal current (b) | 8 A |
| Nominal current (c) | 2 A |
| Insulation resistance (a) | > 10¹³ |
| Insulation resistance (b) | > 10¹⁰ |
| Insulation resistance (c) | > 10⁶ |
| Max. contact resistance (a) | < 3 mΩ |
| Max. contact resistance (b) | < 3 mΩ |
| Max. contact resistance (c) | < 3 mΩ |
Material
| Material | Thermoplastic Polyamid PA 6/Fire protection class V-0 |
|---|
