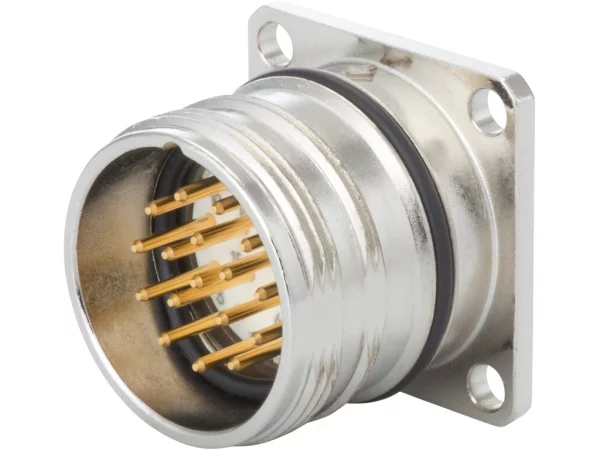

Twilock, Panel Connector, Male Thread
Front Mounting
with anti-vibration O-Ring
7.412.000.000
Continue assembling your connector
Add the desired inserts and accessories to fully configure your connector.
Specifications
General Characteristics
| Size | M23 Signal |
|---|---|
| Gender of required insert | Male/Female |
| Upper temperature | 125 °C |
| Lower temperature | -40 °C |
| Connector locking system | Twilock |
| Protection degree | IP67/IP69K |
| Mating cycles | > 1000 |
| Holes | 4 holes Ø 3,2 mm |
| Remark 1 | Optional: Flat gasket |
Material
| Housing material | Copper-Zinc alloy, Die casting |
|---|---|
| Housing plating | Nickel plated |
Variations
| Item number |
|---|
| 7.410.000.000 |
| 7.414.000.000 |
| 7.416.000.000 |
