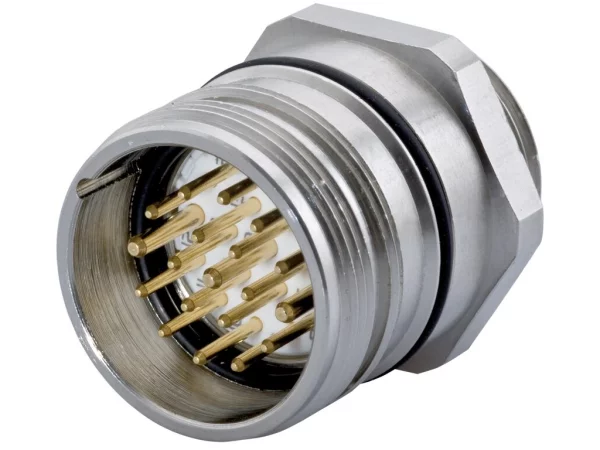

Panel Connector, Male Thread
single hole mounted
front Mounting for male inserts
7.422.000.000
Continue assembling your connector
Add the desired inserts and accessories to fully configure your connector.
Specifications
General Characteristics
| Size | M23 Signal |
|---|---|
| Gender of required insert | Male |
| Upper temperature | 125 °C |
| Lower temperature | -40 °C |
| Connector locking system | Screw |
| Protection degree | IP67/IP69K |
| Mating cycles | > 1000 |
| Thread | PG13,5 |
| Remark 1 | Optional: Flat gasket, jam nut M 20 x 1,5 / PG 13,5 |
Material
| Housing material | Copper-Zinc alloy, Die casting |
|---|---|
| Housing plating | Nickel plated |
Variations
| Item number | Thread |
|---|---|
| 7.420.000.000 | M20 x 1,5 |
