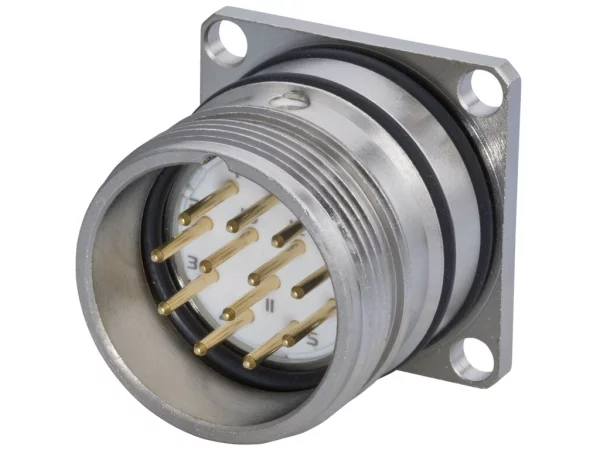

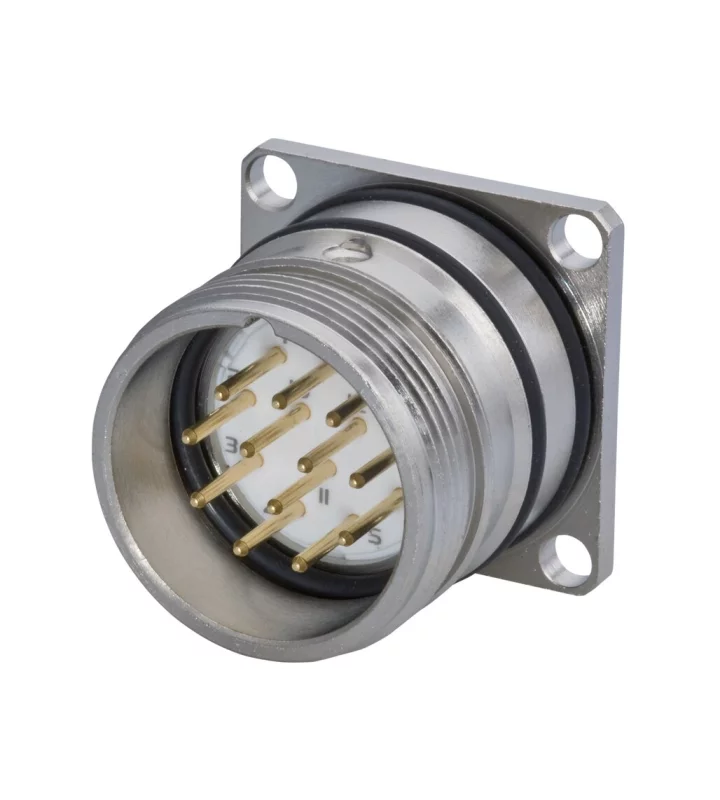

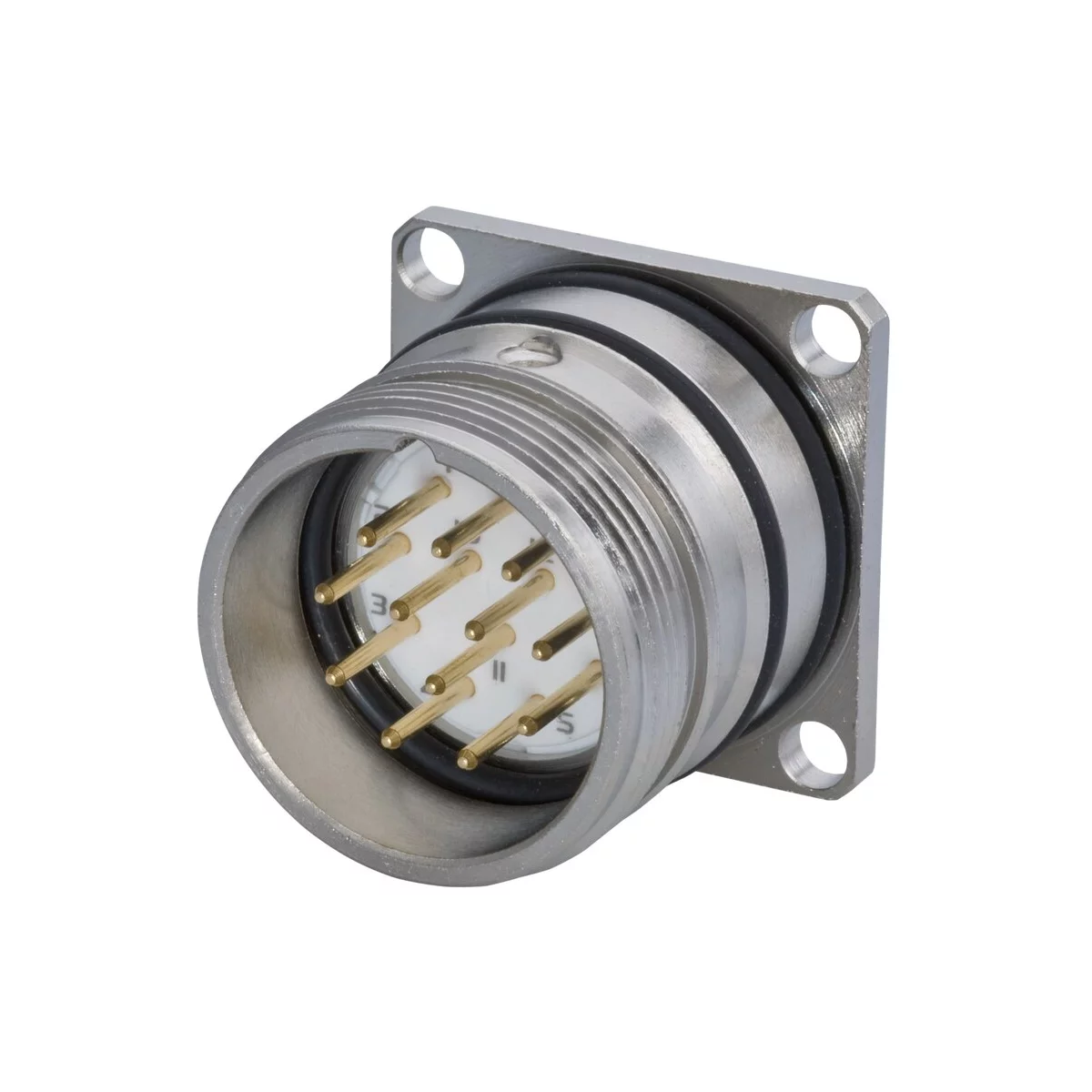

Twilock, Panel Connector, Male Thread
Rear Mounting
with anti-vibration O-Ring
7.464.000.000
Continue assembling your connector
Add the desired inserts and accessories to fully configure your connector.
Specifications
General Characteristics
| Size | M23 Signal |
|---|---|
| Gender of required insert | Male/Female |
| Upper temperature | 125 °C |
| Lower temperature | -40 °C |
| Connector locking system | Twilock |
| Protection degree | IP67/IP69K |
| Mating cycles | > 1000 |
| Remark 1 | Optional: Flat gasket |
Material
| Housing material | Copper-Zinc alloy, Die casting |
|---|---|
| Housing plating | Nickel plated |
Variations
| Item number |
|---|
| 7.460.000.000 |
| 7.462.000.000 |
| 7.466.000.000 |
