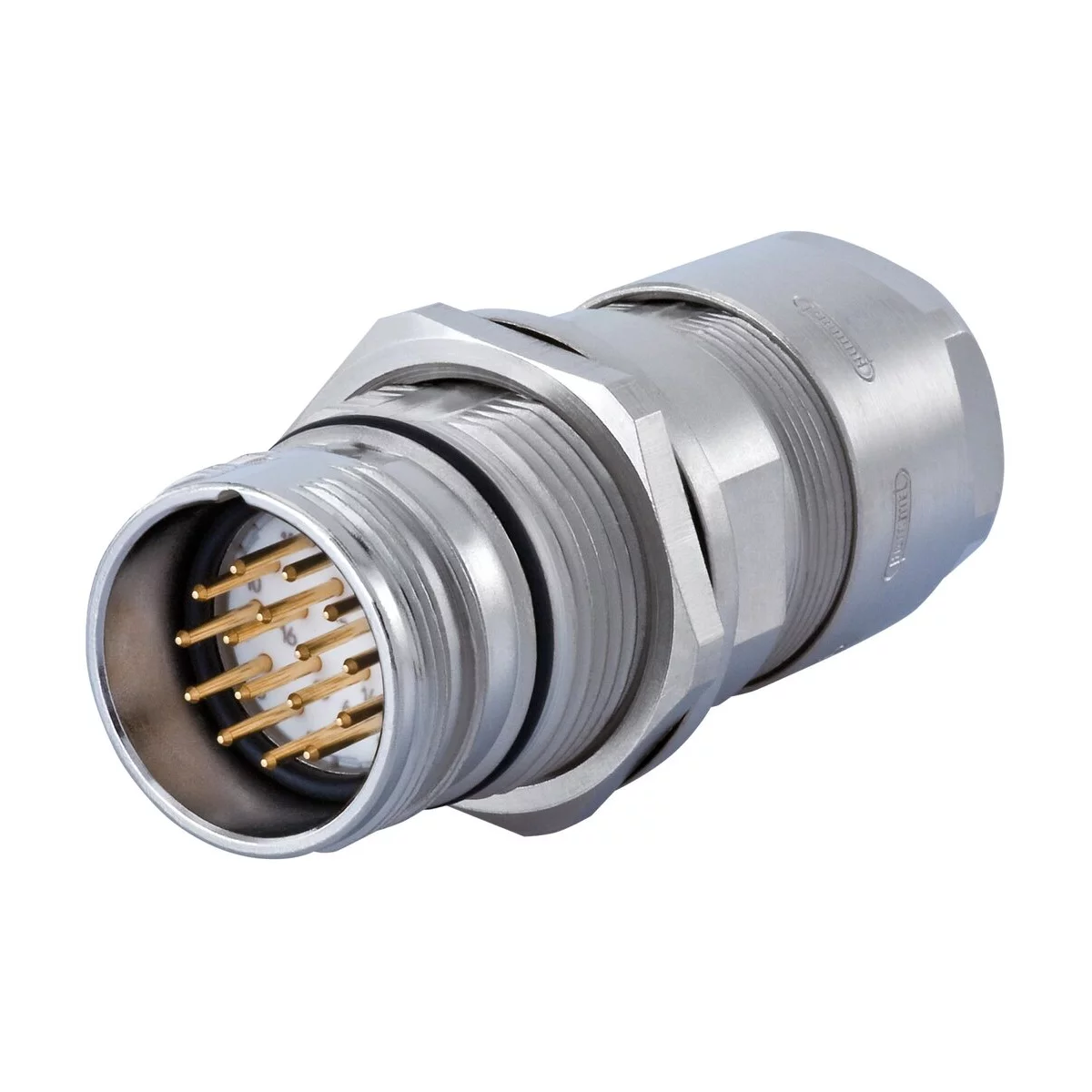

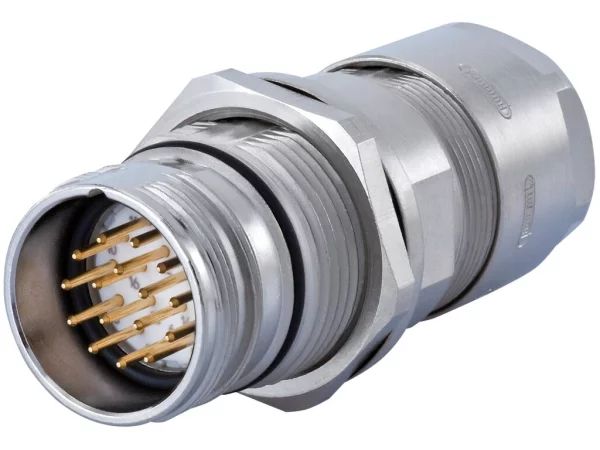

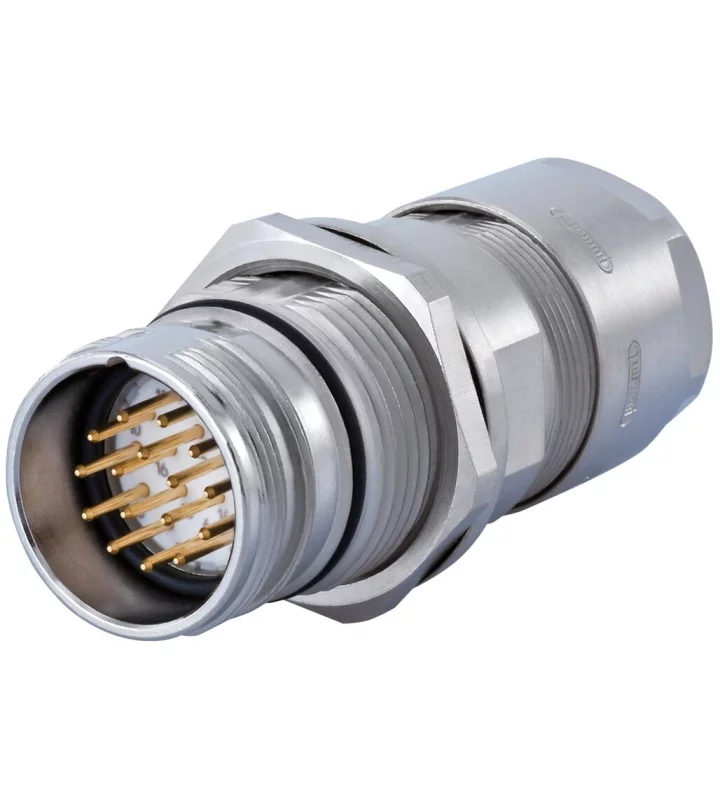

Twilock, Panel Connector, Male Thread, with Strain Relief
Rear Mounting
M 2,5 x 1,5 single hole mounted
7.486.600.000
Continue assembling your connector
Add the desired inserts and accessories to fully configure your connector.
Specifications
General Characteristics
| Size | M23 Signal |
|---|---|
| Gender of required insert | Male/Female |
| Upper temperature | 125 °C |
| Lower temperature | -40 °C |
| Connector locking system | Twilock |
| Protection degree | IP67/IP69K |
| Mating cycles | > 1000 |
| Cable diameter | 11 - 17 mm |
| Remark 1 | Including jam nut M 25 x 1,5 |
Material
| Housing material | Copper-Zinc alloy, Die casting |
|---|---|
| Housing plating | Nickel plated |
Variations
| Item number | Cable diameter (mm) | Cable diameter |
|---|---|---|
| 7.486.400.000 | 3 - 7 mm | 3 - 7 mm |
| 7.486.500.000 | 7 - 12 mm | 7 - 12 mm |
