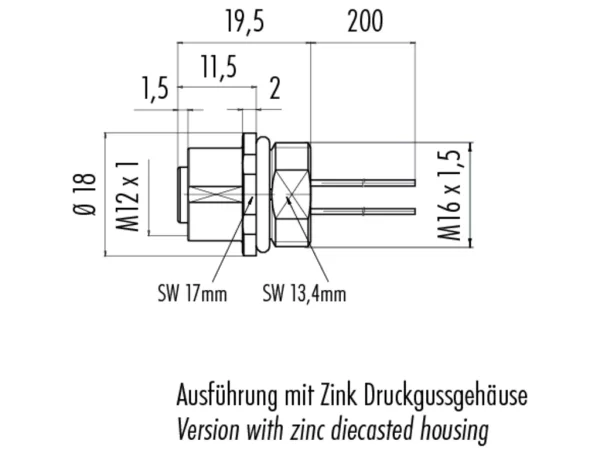

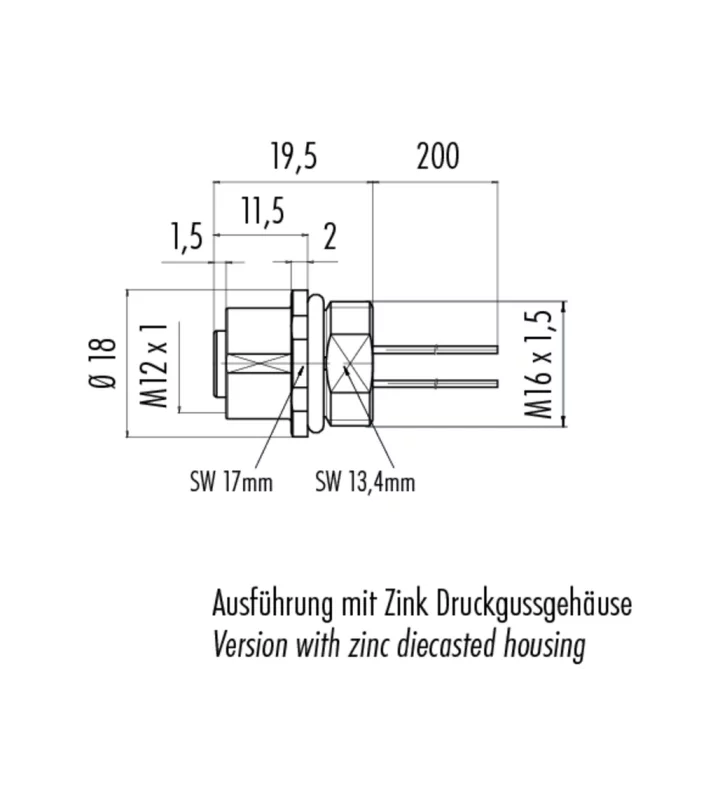

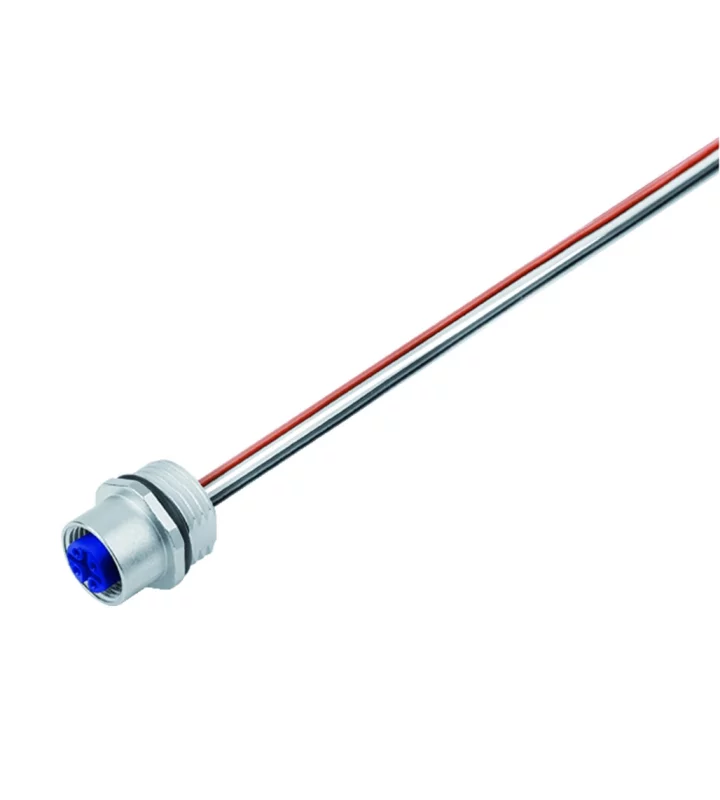

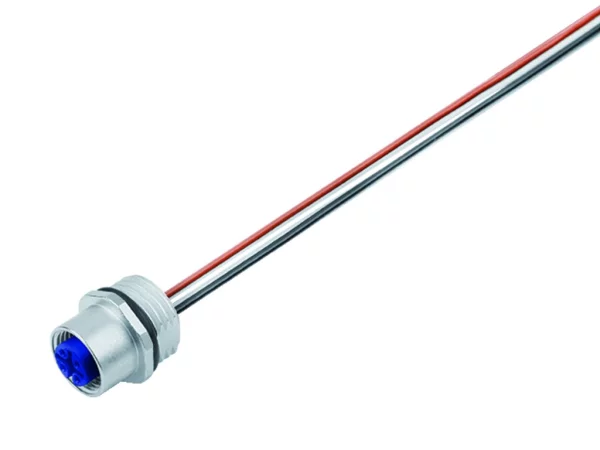

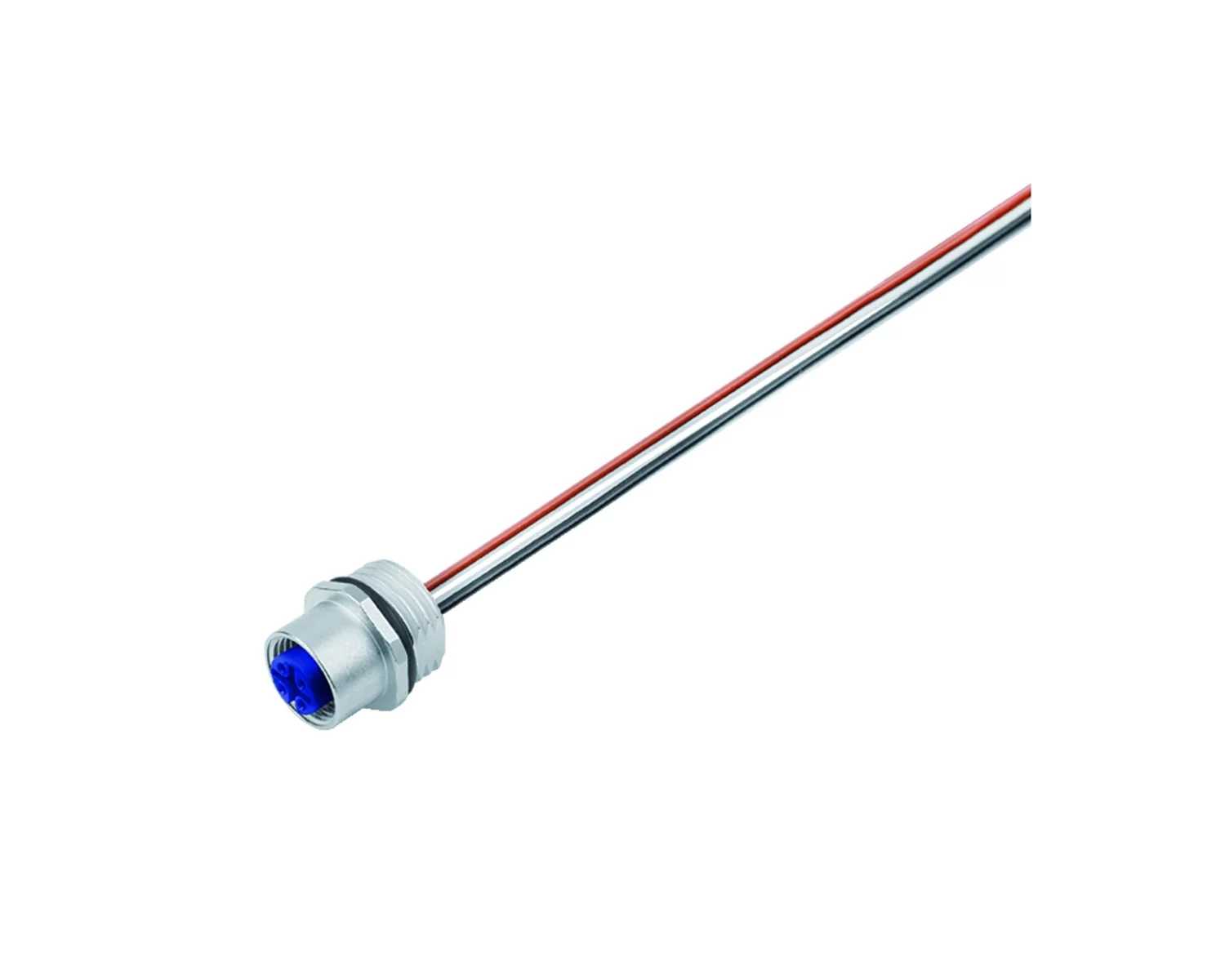

Female panel mount connector
With single wires, 0,14mm²/0,25mm²
UL-approval
76 0232 0011 00605 0200
Specifications
General Characteristics
| Screw size | M12-A |
|---|---|
| Series | Sensor |
| Subseries | 713-763 |
| Gender | Female |
| Number of contacts | 5 |
| Contact terminal | Single wires |
| Color | Blue |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Screw (M12-A) |
| Mating cycles | >50 |
| Connector Diameter | 18 mm |
| Wire-section | 0.25 mm² |
| Fixing thread | M16 x 1,5 |
Electrical parameters
| Nominal current | 4 A |
|---|---|
| Nominal voltage | 125 V |
| Impuls voltage | 1500 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Material group | II |
|---|---|
| Material of insert | PA |
| Material of housing | Zinc diecasting nickel plated |
| Material of contact | CuSn (Bronze) |
| Plating | Au (Gold) |
Variations
| Item number | Number of contacts | Nominal voltage | Impuls voltage | Color | Nominal Voltage |
|---|---|---|---|---|---|
| 76 0232 0011 00004 0200 | 4 | 250 V | 2500 V | Black | >200 - ≤400 V |
| 76 0232 0011 00104 0200 | 4 | 250 V | 2500 V | Purple | >200 - ≤400 V |
| 76 0232 0011 00204 0200 | 4 | 250 V | 2500 V | Orange | >200 - ≤400 V |
| 76 0232 0011 00304 0200 | 4 | 250 V | 2500 V | Yellow | >200 - ≤400 V |
| 76 0232 0011 00404 0200 | 4 | 250 V | 2500 V | Green | >200 - ≤400 V |
| 76 0232 0011 00504 0200 | 4 | 250 V | 2500 V | Red | >200 - ≤400 V |
| 76 0232 0011 00604 0200 | 4 | 250 V | 2500 V | Blue | >200 - ≤400 V |
| 76 0232 0011 00005 0200 | 5 | 125 V | 1500 V | Black | ≤200 V |
| 76 0232 0011 00105 0200 | 5 | 125 V | 1500 V | Purple | ≤200 V |
| 76 0232 0011 00205 0200 | 5 | 125 V | 1500 V | Orange | ≤200 V |
| 76 0232 0011 00305 0200 | 5 | 125 V | 1500 V | Yellow | ≤200 V |
| 76 0232 0011 00405 0200 | 5 | 125 V | 1500 V | Green | ≤200 V |
| 76 0232 0011 00505 0200 | 5 | 125 V | 1500 V | Red | ≤200 V |
