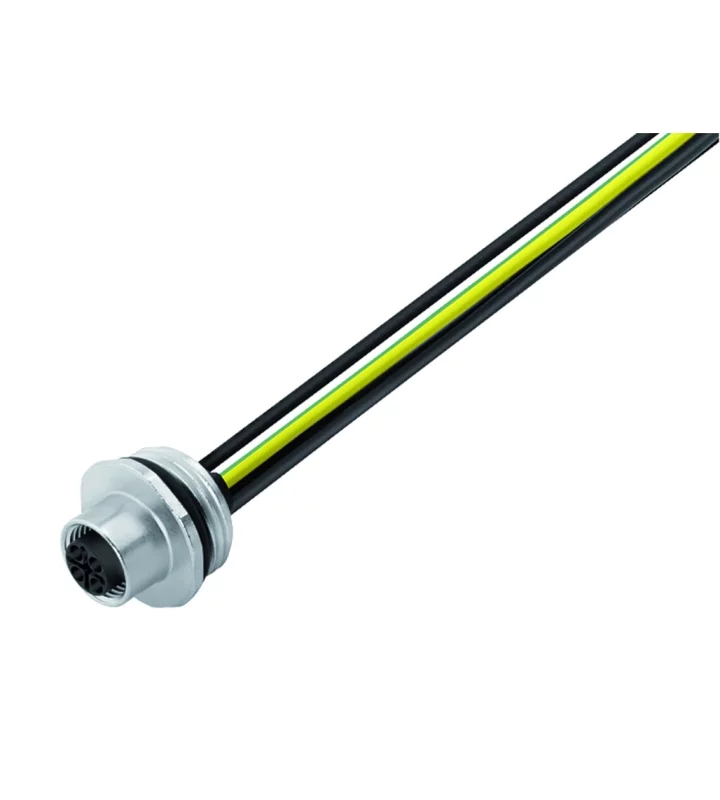

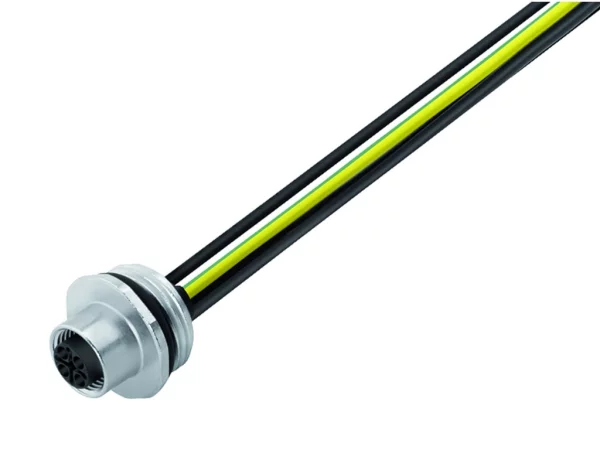

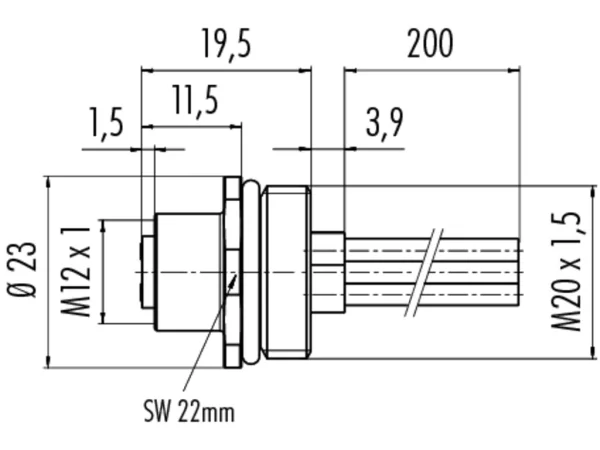

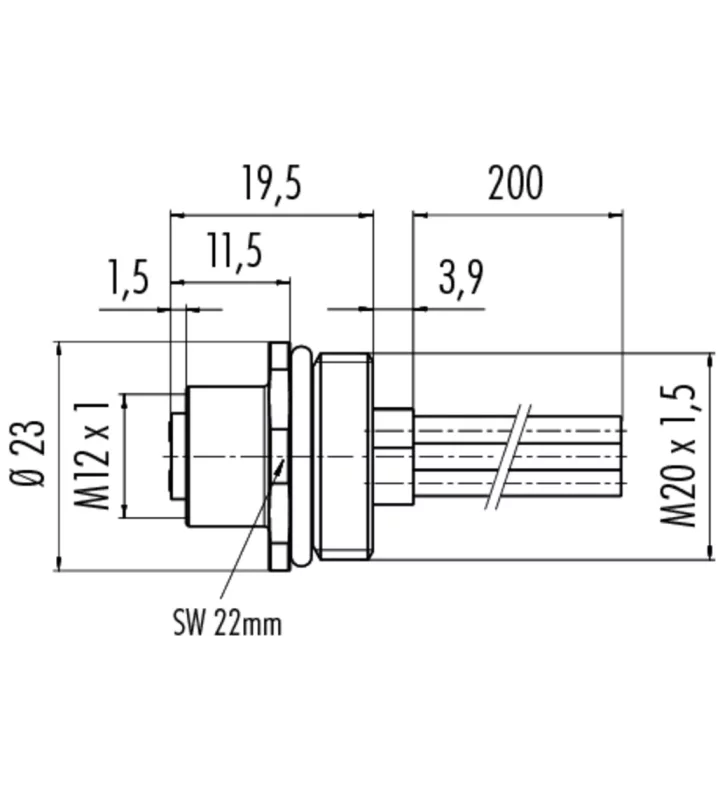

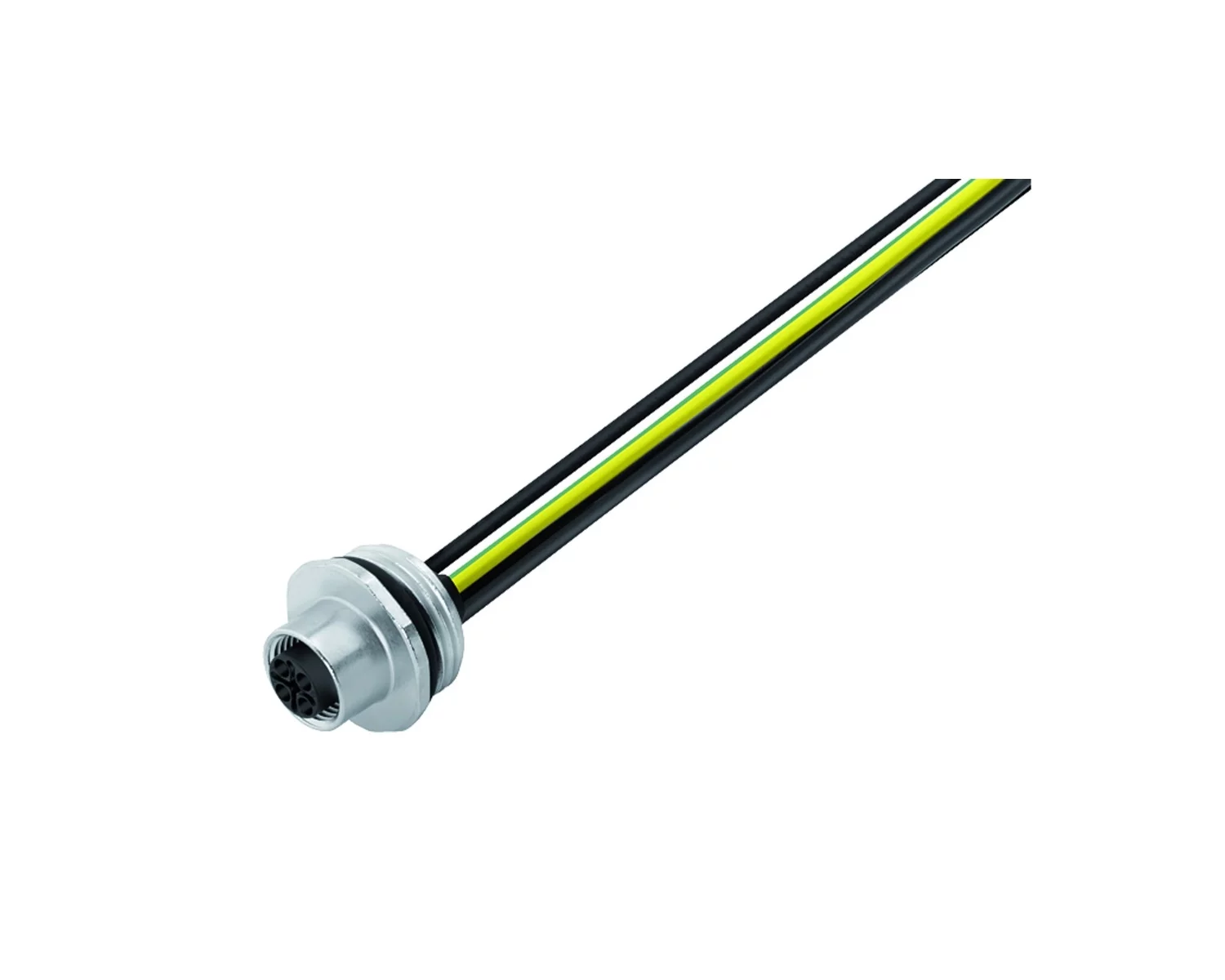

Female panel mount connector
with single wires, M20 x 1,5
76 0442 0136 00034 0200
09 0692 642 04
Specifications
General Characteristics
|
Screw size |
M12-S
|
|
Series |
Power
|
|
Subseries |
814
|
|
Gender |
Female
|
|
Number of contacts |
4
|
|
Contact terminal |
Single wires
|
|
Upper temperature |
+85 °C
|
|
Lower temperature |
-40 °C
|
|
Protection degree |
IP67
|
|
Locking system |
Screw(M12-S)
|
|
Mating cycles |
>100
|
|
Connector Diameter |
23 mm
|
|
Wire-section |
1.5 mm²
|
|
Fixing thread |
M20 x 1,5
|
Electrical parameters
|
Nominal current |
12 A
|
|
Nominal voltage |
630 V
|
|
Impuls voltage |
6000 V
|
|
Max. contact resistance |
3 mΩ
|
|
Pollution degree |
3
|
|
Overvoltage categorie |
III
|
Material
|
Material group |
III
|
|
Material of insert |
PA
|
|
Material of housing |
PA/ zinc diecasting
|
|
Material of contact |
CuSn (Bronze)
|
|
Plating |
Au (Gold)
|
