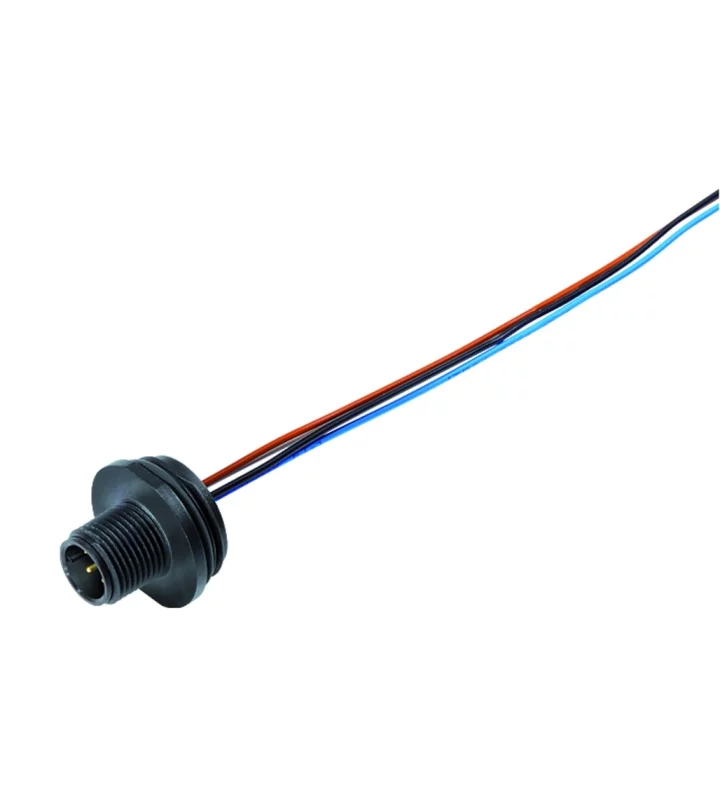

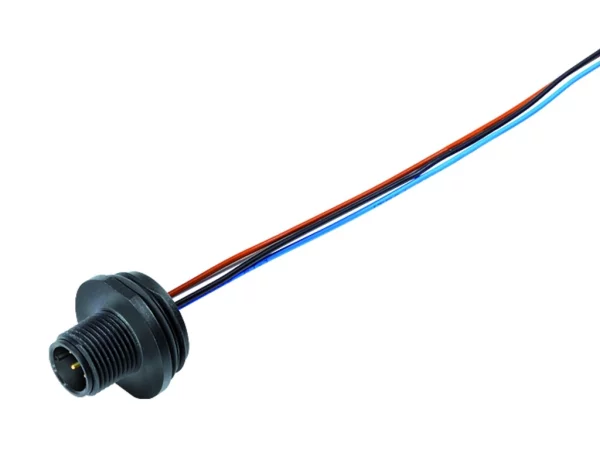

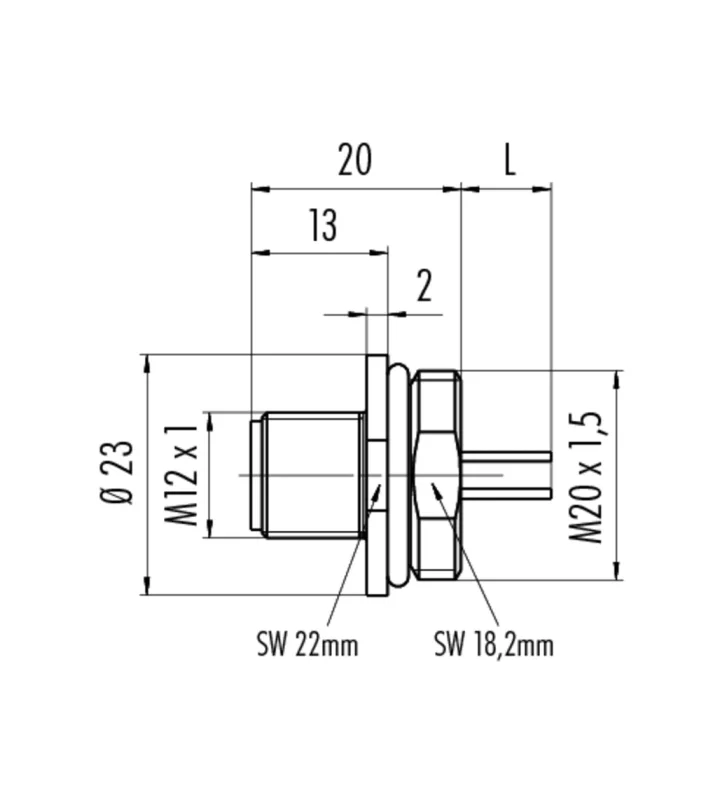

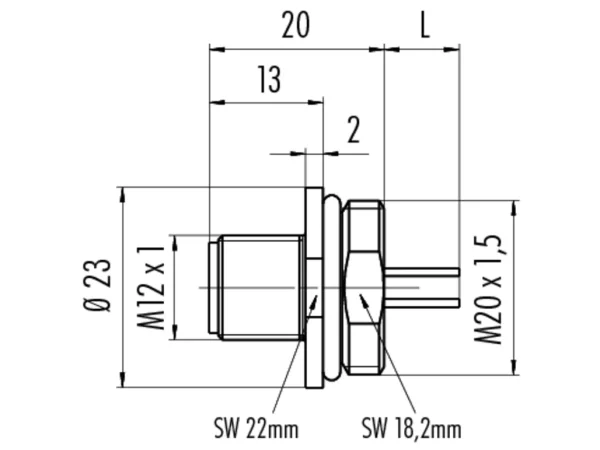

Male panel mount connector
With single wires
AWG 24, M20 x 1,5
76 4631 0011 00004 0200
Specifications
General Characteristics
| Screw size | M12-A |
|---|---|
| Series | Sensor |
| Subseries | 763 |
| Gender | Male |
| Number of contacts | 4 |
| Contact terminal | Strands |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Screw (M12-A) |
| Mating cycles | >100 |
| Connector Diameter | 23 mm |
| Wire gauge | 24 AWG |
| Wire-section | 0.25 mm² |
| Fixing thread | M20 x 1,5 |
Electrical parameters
| Nominal current | 1.5 A |
|---|---|
| Nominal voltage | 250 V |
| Impuls voltage | 2500 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Material group | III |
|---|---|
| Material of insert | PA |
| Material of housing | PA |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
Variations
| Item number | Number of contacts | Nominal voltage | Impuls voltage | Nominal Voltage | Wire gauge | Wire-section |
|---|---|---|---|---|---|---|
| 76 4631 0011 00005 0200 | 5 | 60 V | 1500 V | ≤200 V | 24 AWG | 0.25 mm² |
| 76 4631 0011 00008 0200 | 8 | 30 V | 800 V | ≤200 V | 24 AWG | 0.25 mm² |
| 76 4631 0111 00012 0200 | 12 | 30 V | 800 V | ≤200 V | 26 AWG | 0.14 mm² |
