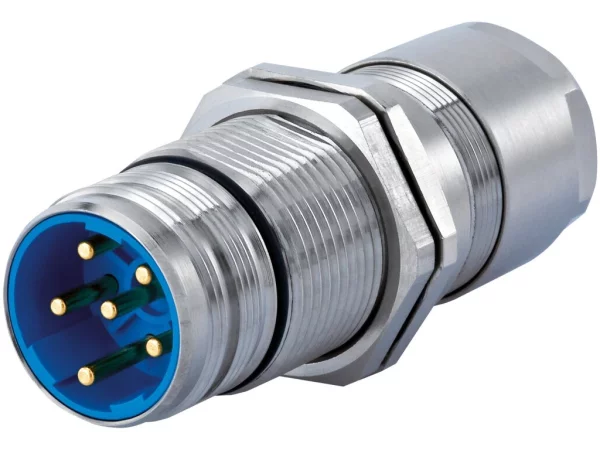

Twilock-S, Panel Connector, Male Thread, with Strain Relief

7.653.500.00S

Add the desired inserts and accessories to fully configure your connector.

Size	M23 Power
Gender of required insert	Male/Female
Connector diameter	25 mm
Upper temperature	125 °C
Lower temperature	-40 °C
Connector locking system	Twilock
Protection degree	IP67/IP69K
Mating cycles	>1000
Cable diameter	7-12 mm
Thread	M25 x 1,5
Remark 1	Including jam nut M25 x 1,5, Compatible with Speedtec

Housing material	Copper-Zinc alloy/ Die casting
Housing plating	Nickel plated

Item number	Cable diameter (mm)	Cable diameter
7.653.600.00S	11-17 mm	11-17 mm
