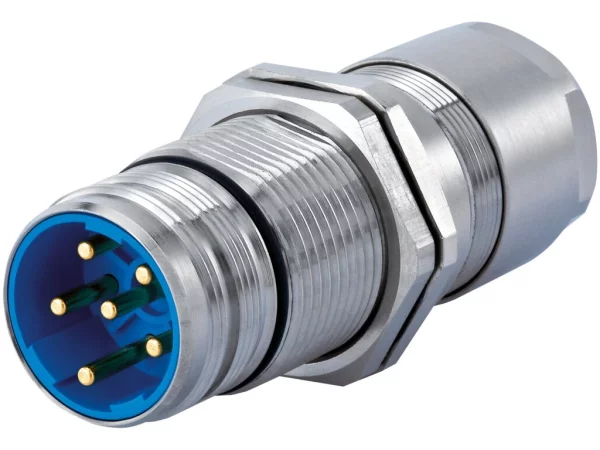

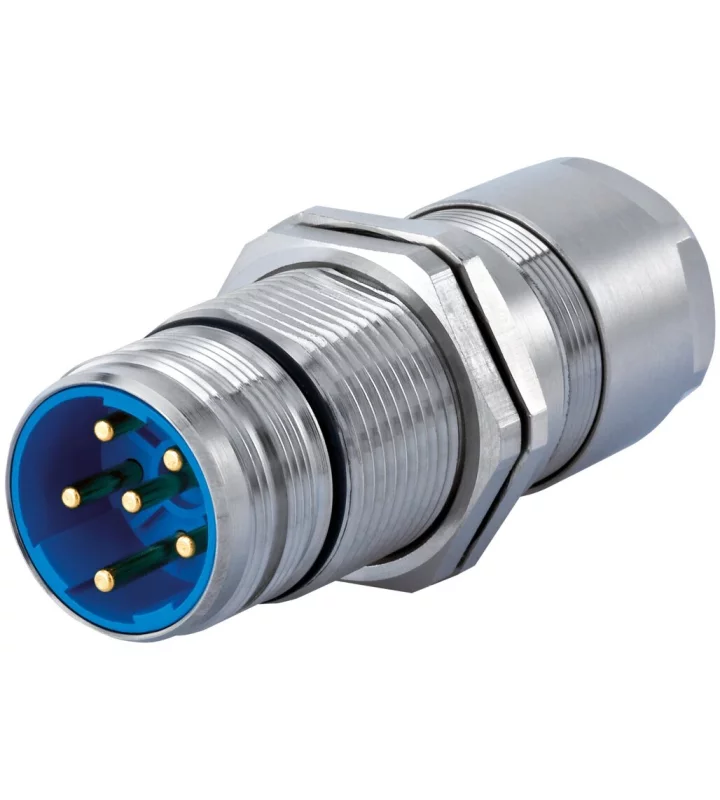

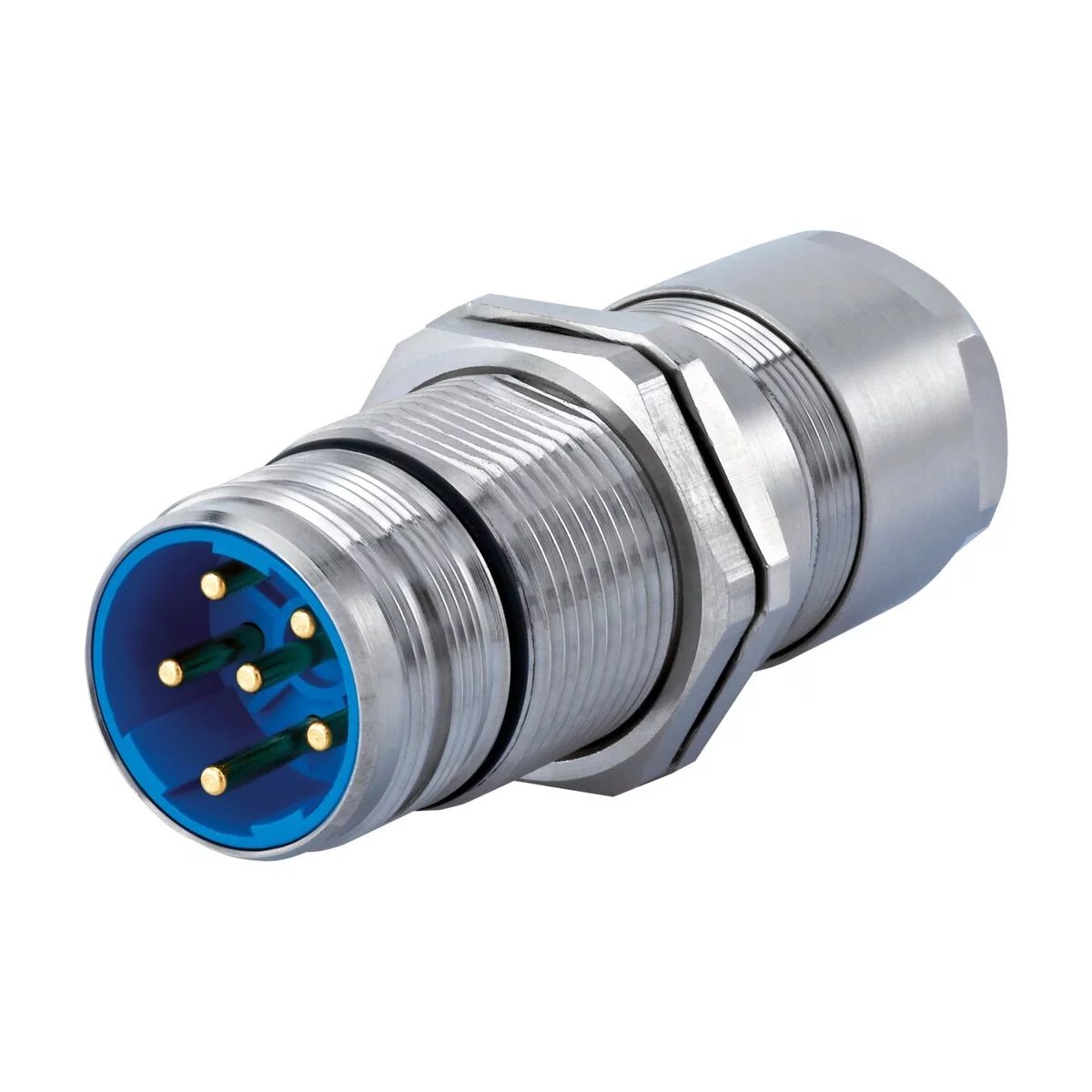

Twilock, Panel Connector, Male Thread, with Strain Relief
single hole mounted
Rear Mounting
7.653.600.000
Continue assembling your connector
Add the desired inserts and accessories to fully configure your connector.
Specifications
General Characteristics
| Size | M23 Power |
|---|---|
| Gender of required insert | Male/Female |
| Connector diameter | 25 mm |
| Upper temperature | 125 °C |
| Lower temperature | -40 °C |
| Connector locking system | Twilock |
| Protection degree | IP67/IP69K |
| Mating cycles | >1000 |
| Cable diameter | 11-17 mm |
| Thread | M25 x 1,5 |
| Remark 1 | Including jam nut M25 x 1,5 |
Material
| Housing material | Copper-Zinc alloy/ Die casting |
|---|---|
| Housing plating | Nickel plated |
