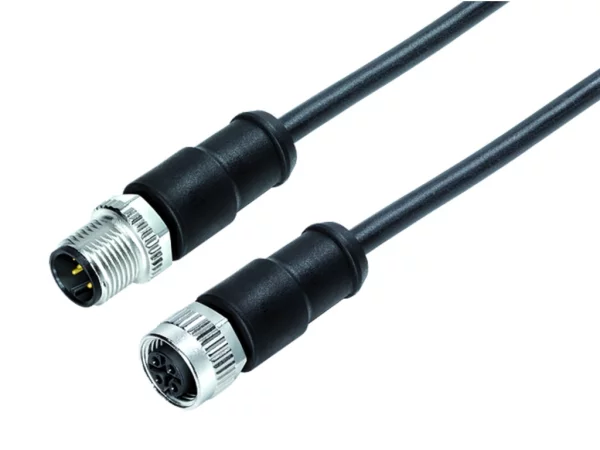

Connecting cable, male cable connector M12x1 & female connector M12x1
PUR
77 0606 0605 50704 0500
Specifications
General Characteristics
|
Screw size |
M12-A
|
|
Series |
Sensor
|
|
Subseries |
763
|
|
Gender |
Male & Female
|
|
Number of contacts |
4
|
|
Contact terminal |
Moulded
|
|
Color |
Black
|
|
Upper temperature |
+85 °C
|
|
Lower temperature |
-25 °C
|
|
Protection degree |
IP69K
|
|
Locking system |
Screw (M12-A)
|
|
Mating cycles |
>50
|
|
Connector Diameter |
14.5 mm
|
|
Cable Length |
5 m
|
|
Wire gauge |
16 AWG
|
|
Wire-section |
1.5 mm²
|
|
Fixing thread |
M12x1,5
|
Electrical parameters
|
Nominal current |
8 A
|
|
Nominal voltage |
250 V
|
|
Impuls voltage |
2500 V
|
|
Max. contact resistance |
3 mΩ
|
|
Pollution degree |
3
|
|
Overvoltage categorie |
II
|
Material
|
Material group |
II
|
|
Material of insert |
PUR
|
|
Material of housing |
PUR
|
|
Material of contact |
Cuzn (Brass), Cusn (Bronze)
|
|
Plating |
Au (Gold)
|
