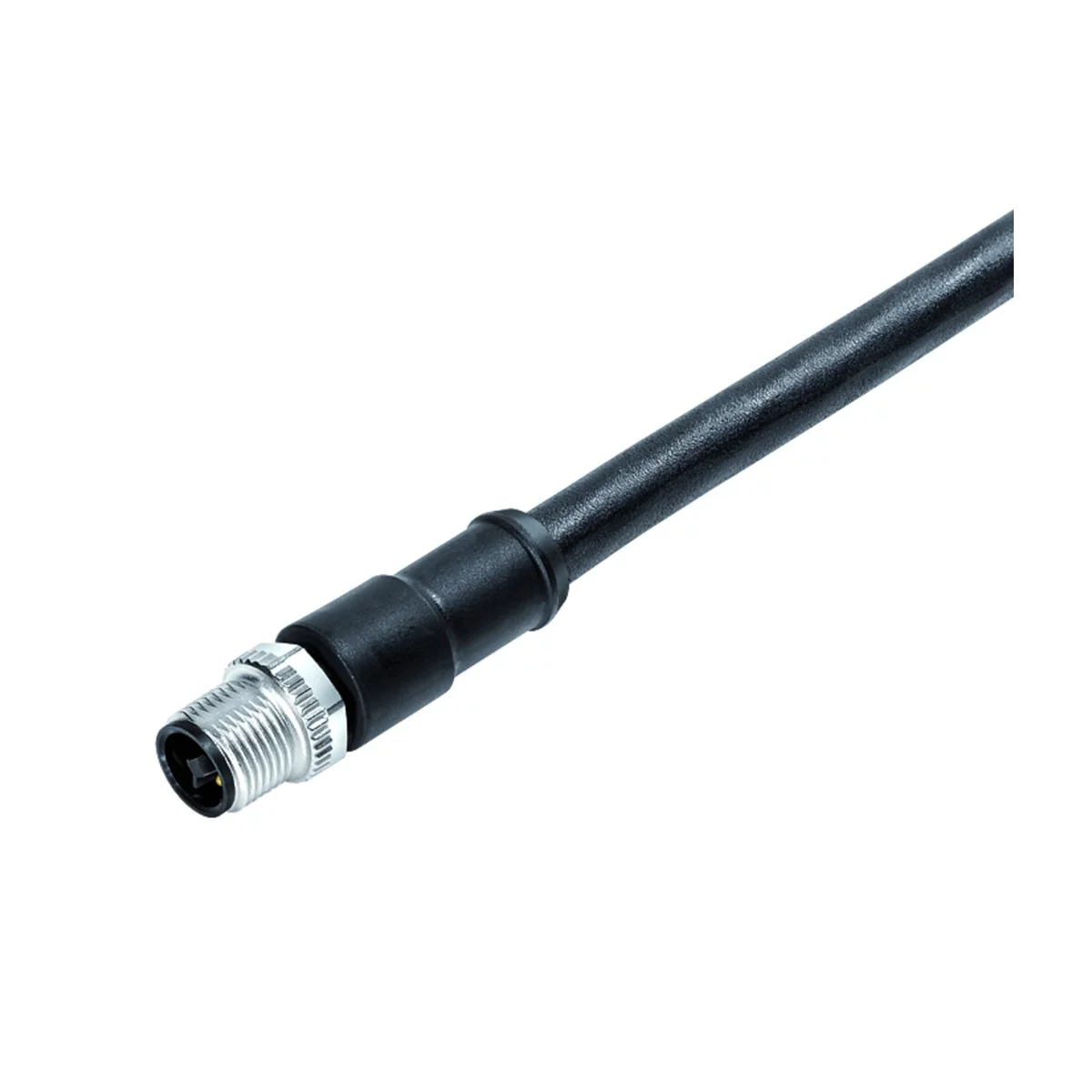

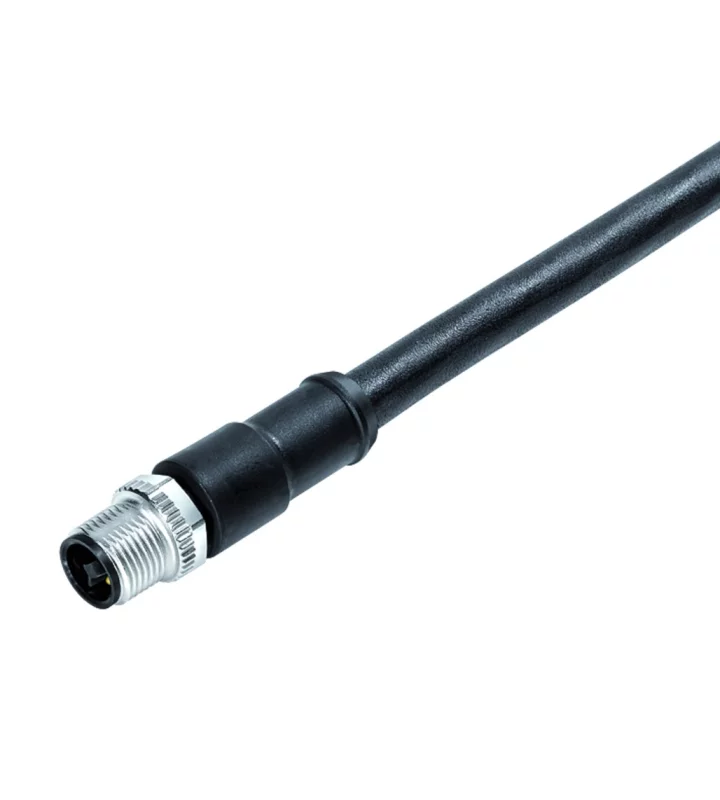

Male cable connector
Moulded,PUR
77 0629 0000 50704 0200
Continue assembling your connector
Add the desired accessories to fully configure your connector.
Specifications
General Characteristics
| Screw size | M12-T |
|---|---|
| Series | Power |
| Subseries | 813 |
| Gender | Male |
| Number of contacts | 4 |
| Contact terminal | Removable screw |
| Color | Black |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Screw(M12-T) |
| Connector Diameter | 14.5 mm |
| Cable Length | 2 m |
| Cable outlet | 8-10 mm |
| Wire gauge | 16 AWG |
| Wire-section | 1.5 mm² |
Electrical parameters
| Nominal current | 12 A |
|---|---|
| Nominal voltage | 63 V |
| Impuls voltage | 1500 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | III |
Material
| Material group | III |
|---|---|
| Material of insert | PA |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
| Housing of cable | PUR |
Variations
| Item number | Cable Length |
|---|---|
| 77 0629 0000 50704 0500 | 5 m |
