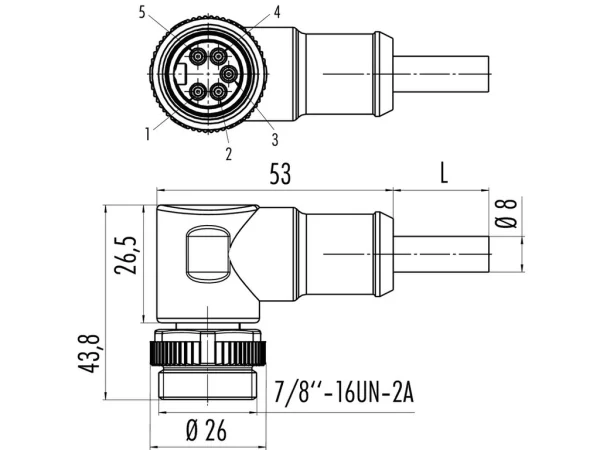

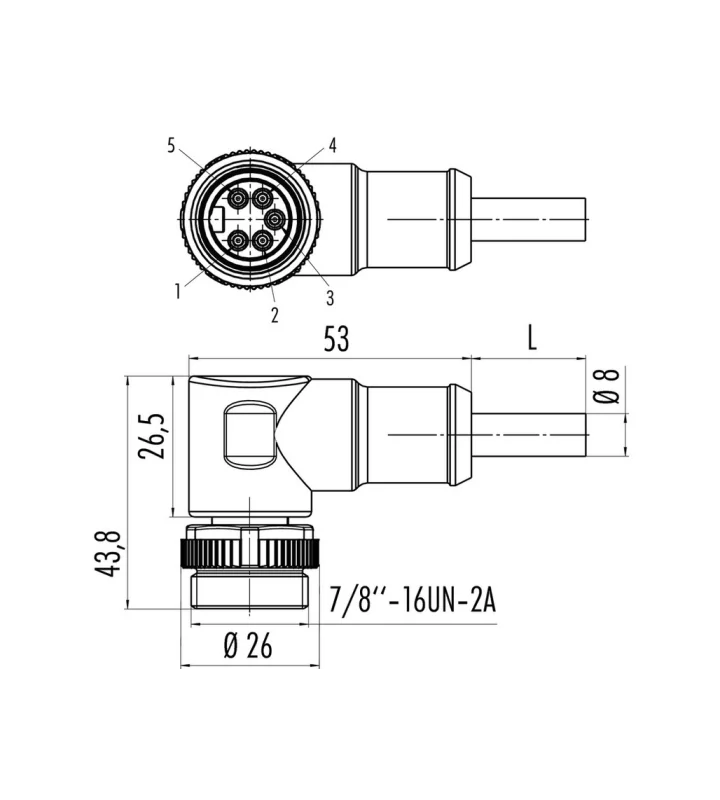

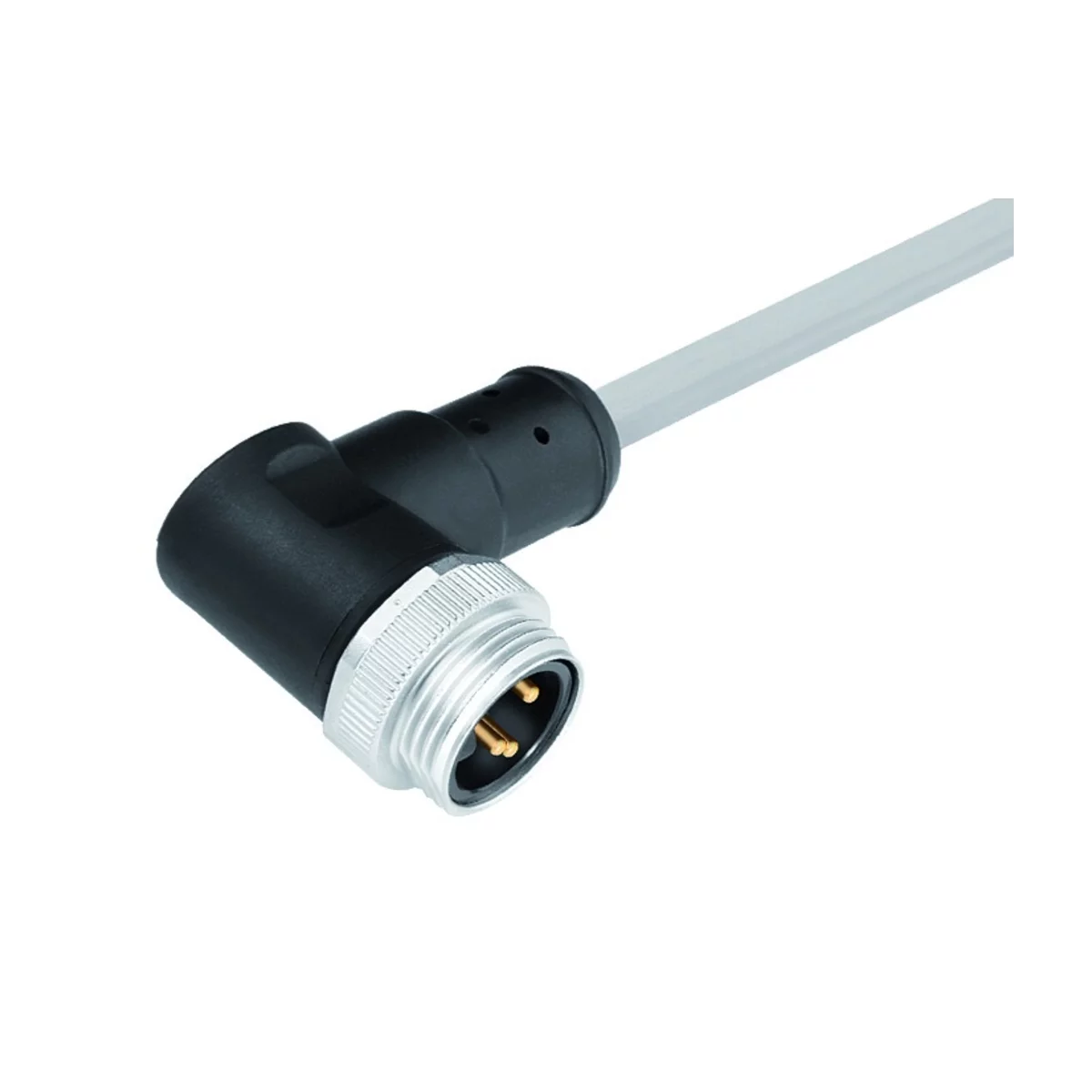

7/8" male right-angled connector, 5 poles, unshielded, overmoulded to the cable, IP68, 5 x 1,50 mm², 2 m
77 1427 0000 50005 0200
Continue assembling your connector
Add the desired accessories to fully configure your connector.
Specifications
General Characteristics
| Series | Sensor |
|---|---|
| Subseries | 870 |
| Gender | Male |
| Number of contacts | 5 |
| Contact terminal | Crimp |
| Upper temperature | +80 °C |
| Lower temperature | -25 °C |
| Protection degree | IP68 |
| Locking system | Screw (7/8"-16 UN) |
| Mating cycles | >100 |
| Connector Diameter | 26 mm |
| Cable Length | 2 m |
| Cable diameter | 8,7 mm |
| Cable | 5 x 1,5 PUR |
| Wire-section | 1.5 mm² |
Electrical parameters
| Nominal current | 9 A |
|---|---|
| Nominal voltage | 300 V |
| Impuls voltage | 2500 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Jacket material | PUR |
|---|---|
| Material group | II |
| Material of insert | PUR |
| Material of housing | PUR |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
| Insulation wire | TPM |
